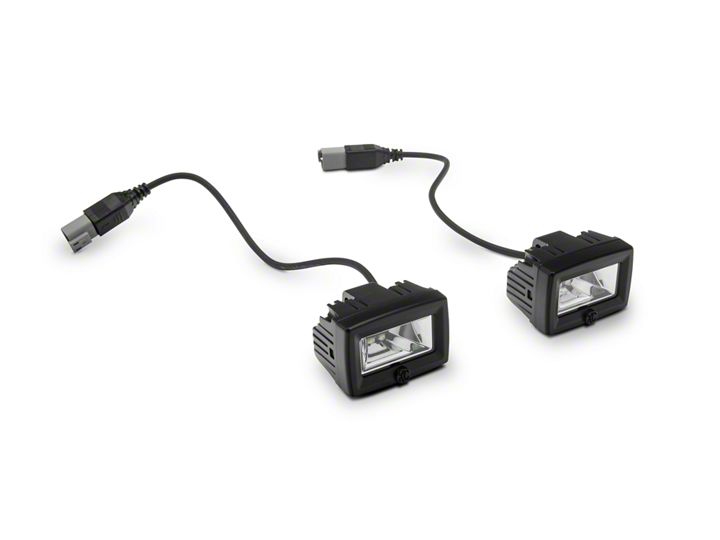

How to Install KC HiLiTES C-Series C2 Backup Flood Lights - Pair (87-18 Jeep Wrangler YJ, TJ, JK & JL) on your Jeep Wrangler
Installation Time
60 minutes
Tools Required
- Box Cutter/Knife (Packaging)
- 10mm Socket
- 13mm Socket
- Socket Wrench
- Allen Wrench
Shop Parts in this Guide
1. Locate and remove the wiring harness from the rest of the packaging (Figure A).
Figure A
2. Locate the yellow (positive) wire and attach it to the positive ( ) battery terminal using a 10mm socket wrench (Figure B).
Figure B
3. Locate the black (negative) wire and attach it to the negative (-) battery terminal using a 10mm socket wrench (Figure C).
Figure C
4. Run the wiring harness through the engine bay and into the cab of the vehicle and connect the yellow wire to the bottom switch terminal (Figure D).
Figure D
5. Connect the red wire to the middle switch terminal (Figure E).
Figure E
6. Connect the black wire to the top switch terminal (Figure F).
Figure F
7. Ground the black wire from the switch to the vehicle chassis.
8. Run the wiring harness connection to the LED mounting location (Figure G).
Figure G
9. Mount the LED and connect the light to the wiring harness (Figure H).
Figure H
10. Repeat Steps 8 and 9 for the other LED.
Before
After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 08/28/2018
