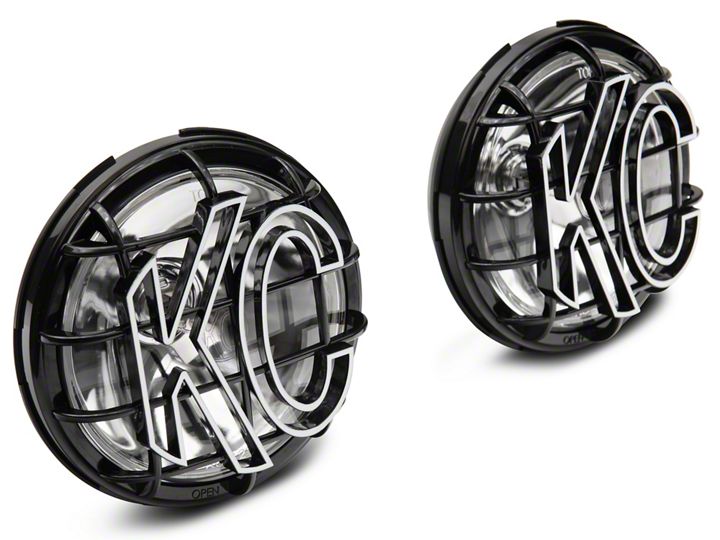

How to Install KC HiLiTES 6 in. Apollo Pro Halogen Lights - Spot Beam - Pair on your Jeep Wrangler
Shop Parts in this Guide
1. Attach the red wire from the included harness to the positive battery terminal (Figure A).
Figure A
2. Attach the black wire from the included harness to the negative battery terminal (Figure B).
Figure B
3. Run the wiring harness into the cab (or other desired switch mounting location) and attach the black wire to the top switch terminal (Figure C).
Figure C
4. Attach the green wire to the middle switch terminal (Figure D).
Figure D
5. Attach the white wire to the bottom switch terminal (Figure E).
Figure E
6. Run the wiring harness to the two light mounting locations (Figure F).
Figure F
7. Attach the light to a light mount (not supplied) and tighten using a 14mm socket wrench.
8. Connect the wiring harness to the light (Figure G).
Figure G
Before
After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 10/11/2018
