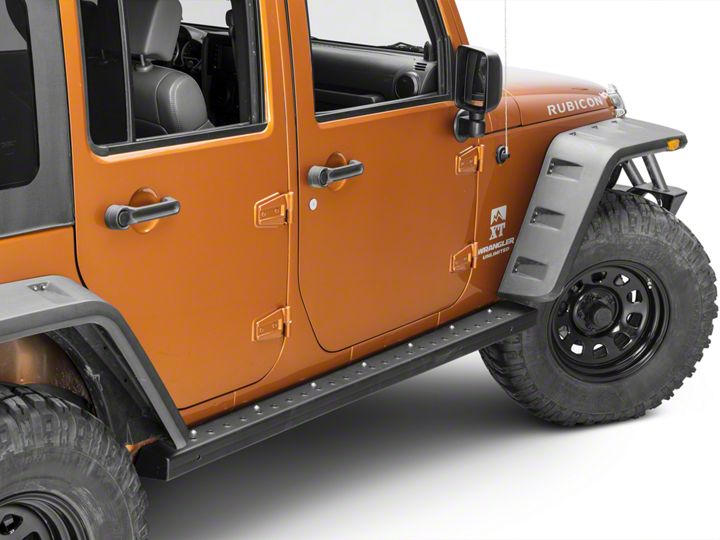

How to Install Kargo Master Rocker Walk Side Steps (07-17 Wrangler JK 4 Door) on your Jeep Wrangler

Installation Time

1 hours

Tools Required
  • 3/16" Allen Hex
  • 5/16" Allen Flex
  • M I3 Socket and Wrench
  • 1/2" Socket and Wrench
Extreme Terrain
Shop Parts in this Guide

Step 1
• Remove factory rocker guard from JEEP.
• Remove all three body mount bolts.


Step 2
• Bolt Inner support (56000-22-R2) to the flange where the factory rocker was removed. Bolt through the square holes in the inner support using six 5/16" carriage bolts, six 5/16" washers and six 5/16" NYLOC nuts.

*TIGHTEN BOLTS


Step 3
• Place large step cover (56000-21-R2) on top of previously installed inner support.
• Bolt through the slot in the step cover into inner support using seven 5/16" button heads, seven 5/16" lock washers and seven 5/16" flat washers.

**DO NOT TIGHTEN**


Step 4
• Under the JEEP, reinstall the 3 body mount removed in step 1. Bolt through the slot in the step cover.

**DO NOT TIGHTEN**


Step 5
• Back under the JEEP, bolt support brackets (56000-13) to the step cover using four 5/16" button heads, four 5/16" lock washers and four 5/16" flat washers.

**DO NOT TIGHTEN**


Step 6
• Bolt through previously installed support bracket into the weldnut underneath of JEEP using two M8 bolts, two lock washers and two flat washers.

**DO NOT TIGHTEN**


Step 7
• From the outside of the JEEP, align the gap between the step and the body of the JEEP to your liking.

• Tighten button head bolts from step 3 starting with the far most outside and working towards the middle.

• Once the top bolts are tight, tighten body mount bolts underneath of the JEEP.

• Finally, tighten support bracket bolts from step 5 and 6 to both JEEP and the step.

Step 8
• Bolt 1/2" Button head, 1/2" lock washer and 1/2" flat washer to outside of step.


Repeat on Passenger side using mirrored parts.

Your installation is now complete
