York Mini On Board Air Kit (12-18 3.6L Jeep Wrangler JK)

Item J183821
Verify parts fit and get product recommendations.
Wrangler Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$1,259.99

FREE Shipping Market Price $1,449.99 You Save 13% ($190.00) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Description, Q&A

      Description

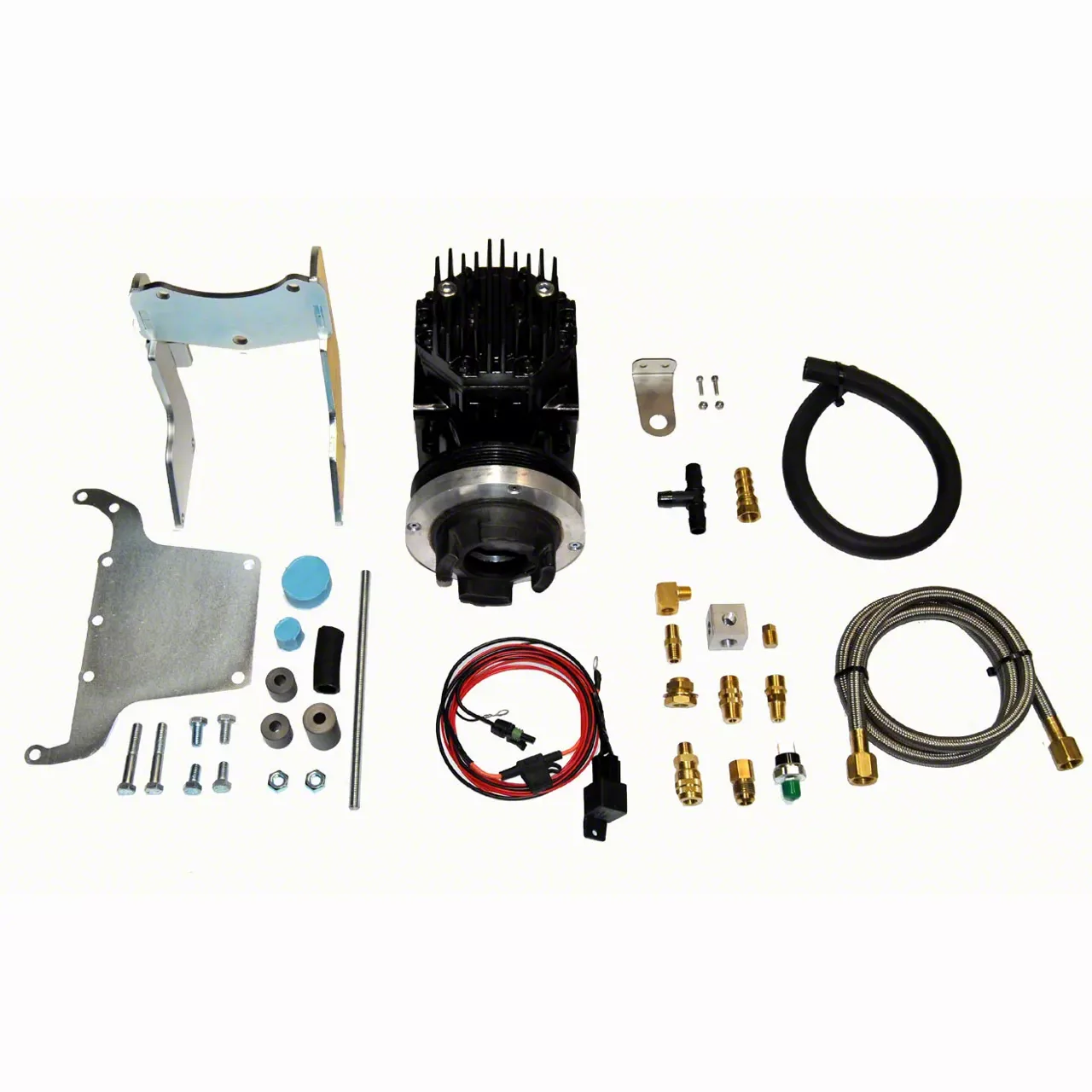

      Description. This York Mini On Board Air kit is everything needed to install on the 12-18 Wrangler JK with 3.6L V6. The kit consists of a manifold with full air management, a 150 PSI pressure switch and a Milton M style quick coupler.

      This kit does not include an air tank, This is perfect to simply fill tires as the smaller the volume being filled the quicker the pressure increase. For applications to provide air for ARBs or other pneumatic devices that require a reservoir, please add our Mini On Board Air tank kit.

      The bracket in this kit will replace the aluminum mount that the alternator and belt tensioner is mounted to. The alternator will mount into the new bracket, along with the factory belt tensioner.

      The York compressor is a 10cfm unit with a wet crankcase. The compressors are shipped dry. Included in the packaging is a bottle with 10 ounces of oil and a syringe to install and service the compressor.

      There is also a sight glass on the rear of the compressor which allows for quick inspection to ensure there is oil in the unit. 10 ounces of oil with the compressor level should display oil at the middle of the sight glass.

      A bracket is provided to mount the manifold in the engine compartment near the right headlight, but you can mount the manifold anywhere you wish within the reach of the 6ft Teflon braided 1/2 Inch diameter hose.

      A fused harness is provided with a relay for the clutch. A connection to the pressure switch and a single wire to tie into the provided switch, or S-Pod or other 12 volt switching device.

      This kit will work with factory air box. The inlet to the York will tie into the crankcase breather hose near the valve cover.

      For AiROCK air suspension use, please add both the Mini On Board Air Tank Kit and the Mini Filter Kit.

      Fitment:

      Details

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      10 More Questions

      Will It Fit My Wrangler

      • JK Rubicon 2 Door - 12, 13, 14, 15, 16, 17, 18
      • JK Rubicon 4 Door - 12, 13, 14, 15, 16, 17, 18
      • JK Wrangler 2 Door - 12, 13, 14, 15, 16, 17, 18
      • JK Wrangler 4 Door - 12, 13, 14, 15, 16, 17, 18
