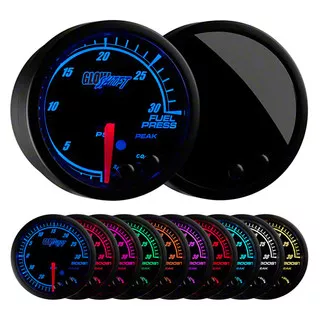

Digital 30 PSI Fuel Pressure Gauge; Elite 10 Color (Universal; Some Adaptation May Be Required)

GlowShift’s Elite 10 Color Series 30 PSI Fuel Pressure Gauge offer ultra- high performance features that allow you to closely monitor your diesel truck's fuel pressure, ensuring it is not running too low which could result in damage to your fuel pump and injectors, resulting in an overall loss of horsepower. This diesel fuel pressure gauge reads from 0 to 30 PSI, and the included electronic fuel pressure sensor reads and displays your vehicle’s fuel pressure with unsurpassed accuracy.

This 2 1/16" (52mm) 30 PSI fuel pressure gauge boasts incredible features that include programmable high and low warning functions, a peak recall function, stepper motor technology, 10 color through dial LED lighting, as well as a self-calibration mode at startup, an illuminated red needle, and a low profile magnified tinted lens. The adjustable high and low warning functions will alert you visually or with an optional audible tone, ensuring your vehicle’s fuel pressure is not running too low, and the peak recall ability gives you an instant feedback. The included stepper motor allows for all needle movement to be incredibly smooth and all gauge readings to be exceptionally accurate. GlowShift’s 10 color through dial lighting lets you match your factory gauges or add a custom look to the interior of your vehicle, and with the color recall feature, you don’t have to worry about resetting the gauge to your preferred color every time you turn your vehicle on. This fuel pressure gauge also dims 30% when connected to your factory headlight switch, making it much easier to read while driving at night.

GlowShift’s Elite 10 Color Series 30 PSI Fuel Pressure Gauge’s sleek 1/8-27 NPT electronic pressure sensor can be installed to your fuel filter housing, fuel pump, or fuel rail. The included sensor and power wires are completely plug and play, and securely snap into the back of the gauge with the featured modular connectors. This fuel pressure gauge is powered by 12 volts and allows you to power an additional three Elite 10 gauges with the daisy chain feature. GlowShift includes free lifetime technical support and a one year limited warranty with every Elite 10 Color Series Gauge.

Note: This gauge includes a 1/8-27 NPT thread size on the sensor and your vehicle may not come equipped with the same thread size. An additional threading adapter may be required for the installation of the sensor. If you are unsure if your application will require additional threading adapters, please contact a GlowShift Technical Support Specialist.Dodge Cummins Note: A Snubber Valve is required when installing a 30 PSI Fuel Pressure Gauge into a 1986-2012 Dodge Ram Cummins. The Snubber Valve regulates, normalizes and eliminates fuel pressure spikes that are present during the initial ignition and startup on the Dodge Cummins Diesel Engine through the use of a regulator. High pressure fuel system spikes during startup are harmful and may cause early and unexpected failure of electronic fuel pressure sensors and/or sending units for fuel pressure gauges.

GM Duramax Note: If you are installing this gauge to a GM Duramax engine, an aftermarket lift pump is required for this gauge to function properly.
