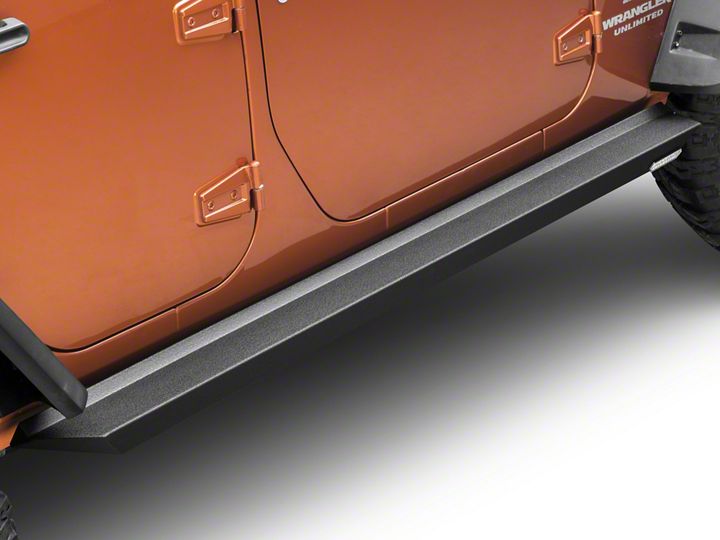

How to Install Iron Cross Side Steps (07-17 Wrangler JK 4-Door) on your Jeep Wrangler

Installation Time

2 hours

Extreme Terrain
Shop Parts in this Guide

Installation Instructions


Step Installation

1) Separate the brackets in your kit, there are (4) FRONT (Figl passenger side) and (2) REAR (Fig 2 passenger rear).


2) Attach the brackets to the frame. Use the 8mm bolt, lock washer and flat washer. Thread into the rocker panel. (The 8mm bolts will be stamped 8.8 on the head). Fig 3.

3) Use (2) 5/16" bolts, flat washers and nuts to attach the bracket to the pinch weld as shown in Fig 4.

4) Tighten brackets to the body at this time to 18 ft/lbs.


5) Place board on bracket and center on vehicle. Attach using the bracket clamps provided. Fig 5b.


6) Tighten bracket clamps to 18 ft/lbs.
