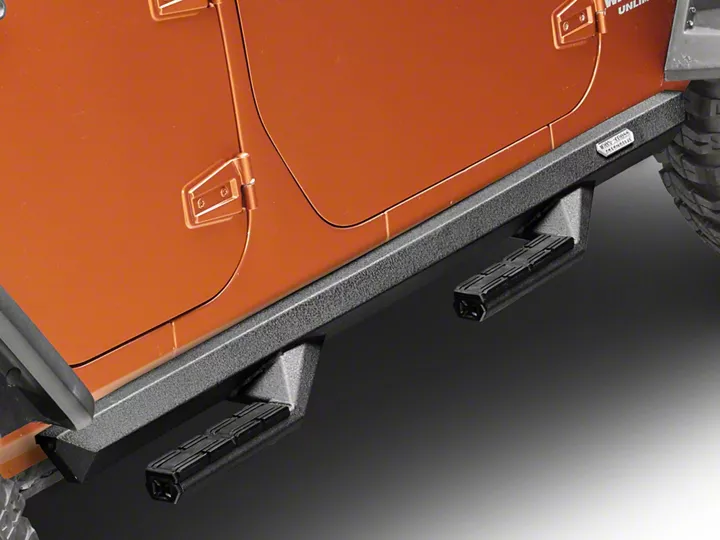

How to Install Iron Cross Side Arm Steps - Black (07-17 Wrangler JK 4 Door) on your Jeep Wrangler

Shop Parts in this Guide


Maintenance and Care

Only use mild soap for regular cleaning. For heavy build up, a solution of ammonia and water can be used. Never use an abrasive material, i.e. steel wool, for cleaning purposes. Use terry cloth towels wiping in the direction of the tube at all times.

Tube Step Installation

Step 1:  Remove front and rear body mount bolts. Replace with M12 & 4-3/4" bolt, lock washer, & flat washer supplied in the bracket kit. Adding the front and rear bracket under the lower body bushing and tighten these bolts to allow for minor adjustments. (Fig1 thru 4) On all 2006 and UP models use factory body bolt, making sure though to add 9/16" lock washer before replacing with bracket.


Step 2:  Take one tube and bolt it to the front bracket using 1/2" bolts, lock washers, & flat washers supplied. Make sure to use the plastic o-ring supplied on the tube ends. Hand tighten the bolts making sure to leave them loose enough for final adjustments. Align the tube to your liking on the truck. Tighten the body mount bolts to 65 ft lbs first. Then tighten the tube step bolts to 65 ft lbs next.

Step 3:  On some vehicles for added support you can use the supplied strap. Bolt the strap to the rear bracket and use the supplied self tapping screw to mount to the body mount. (Fig 5) Place a round plastic washer between strap and body mount, rear bracket and strap.

Step 4:  Repeat the steps for the other side of the vehicle.
