Holley Fuel Tank Pickup; HYDRAMAT (11X11 CROSS) - CENTER OUT- 3/8

Item J140156
Product Image
Sale
1 Reviews
On Sale

-10% $368.96 Was $409.95

Military, Medical & First Responders $18.45 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Center Outlet Pick-Up With 3/8 NPT Fitting
      • Fitting Location Designed For Universal Use
      • Legal For Sale Or Use On Emissions Controlled Vehicles, Uncontrolled Vehicles, And Racing Use Only Vehicles
      • Solves Problems Associated With Traditional Fuel Pick-Ups In Stock Tanks And Racing Fuel Cells
      • Reduces Potential For Air To Enter Fuel System, Preventing Poor Engine Performance And Stalling
      • Effective During Hard Cornering, Acceleration, Stopping, Inclines, And Low Fuel Conditions
      • Surface Tension And Fluid Wicking Draw Fuel From Nearly Any Area In The Tank
      • Tiny Pores Seal Off When Uncovered, Forcing Fuel To Be Drawn From Other Areas
      • Unique Internal Reservoir Maintains Fuel Availability Under Extreme Slosh Conditions
      • Eliminates Need For Specialty Reservoirs, Sumps, And Pick-Up Pumps
      • Acts As A 15 Micron Pre-Filter, Removing Need For Separate Filter Before Fuel Pump
      • Can Be Folded And Compressed For Easy Installation Through Various Fuel Cell Openings
      • Compatible With Alcohol, Ethanol, Methanol, E-85 Fuels, And 2-Cycle Oil Blends Up To 20:1
      • Not Suitable For Most Oils Or Diesel Fuels
      • Fits Flat Bottom Rectangular Style Fuel Cells With Minimum Dimensions Of 11 Inches Long And 11 Inches Wide Cross. For Best Performance, Return Fuel Should Be Discharged Near Pick-Up At Minimum Distance Of 1 Inch Above The Mat.

      Description

      Fuel System Enhancer. The Holley Fuel Tank Pickup; HYDRAMAT (11X11 CROSS) - CENTER OUT- 3/8 is a specialized fuel pickup designed to ensure consistent fuel delivery during aggressive driving conditions such as cornering, acceleration, or inclines. It prevents fuel starvation and engine stalling by maintaining continuous access to fuel despite sloshing or low fuel levels, improving overall engine performance.

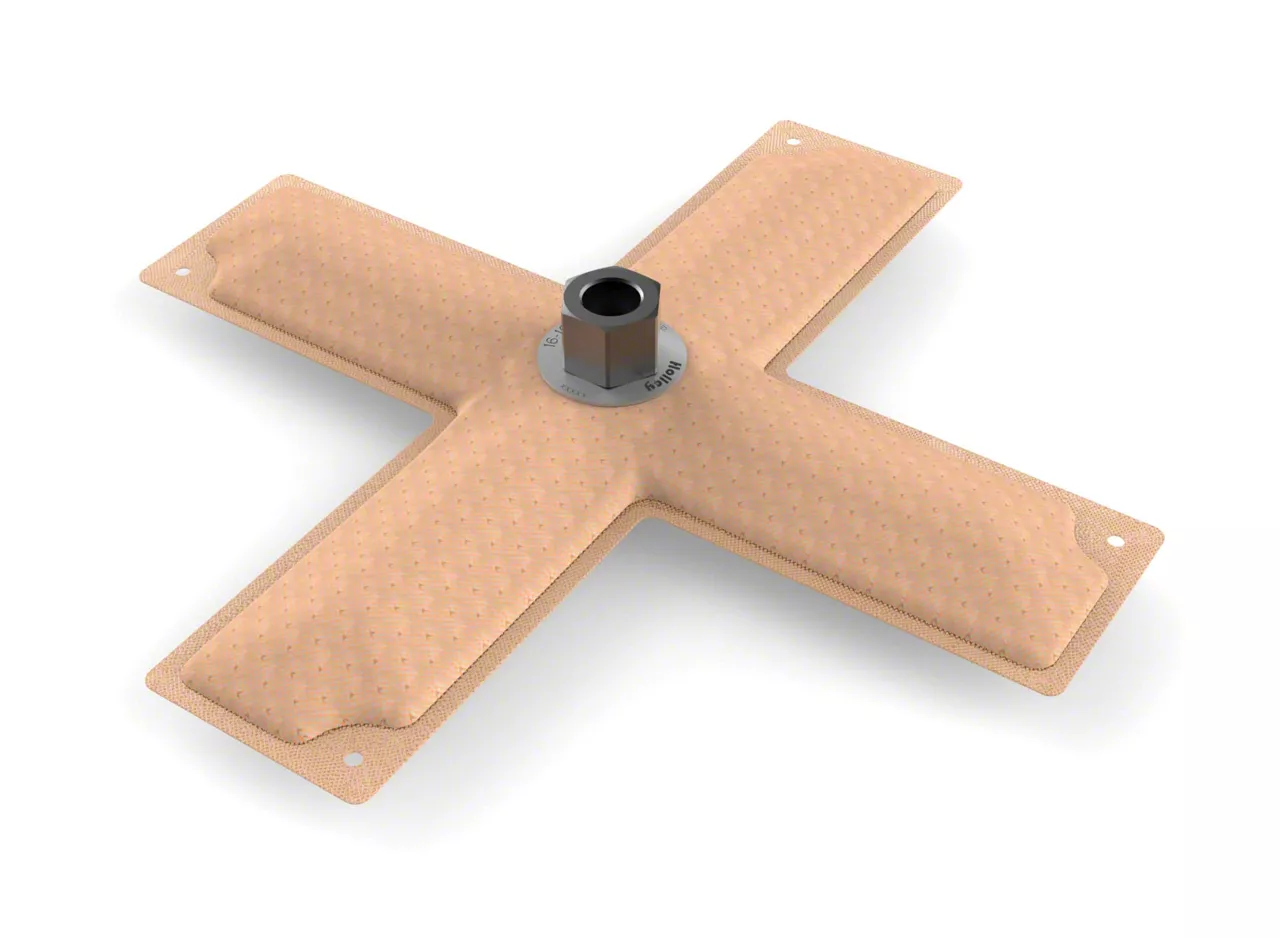

      Construction and Appearance. Constructed from a beige-colored, high-performance material featuring a fine 15 micron filtration capability, the HydraMat incorporates proprietary porous media that utilizes surface tension and fluid wicking to maintain an internal fuel reservoir. The design includes a centrally located 3/8-inch NPT fitting for universal adaptability and ease of integration into various fuel systems.

      Installation. Installation is straightforward and does not require drilling, as the mat can be folded and compressed to fit through standard fuel cell openings. It is compatible with fixed stud mounting systems using recommended stud kits, allowing for secure and reliable placement inside the fuel tank or cell.

      Warranty. This product includes a manufacturer's limited 90-day warranty. Application. Designed specifically for flat bottom rectangular style fuel cells with minimum dimensions of 11 inches long and 11 inches wide cross, requiring return fuel discharge near the pickup at least 1 inch above the mat for optimal performance.

      Holley 16-104
