Find Fuel System Parts for your Gladiator

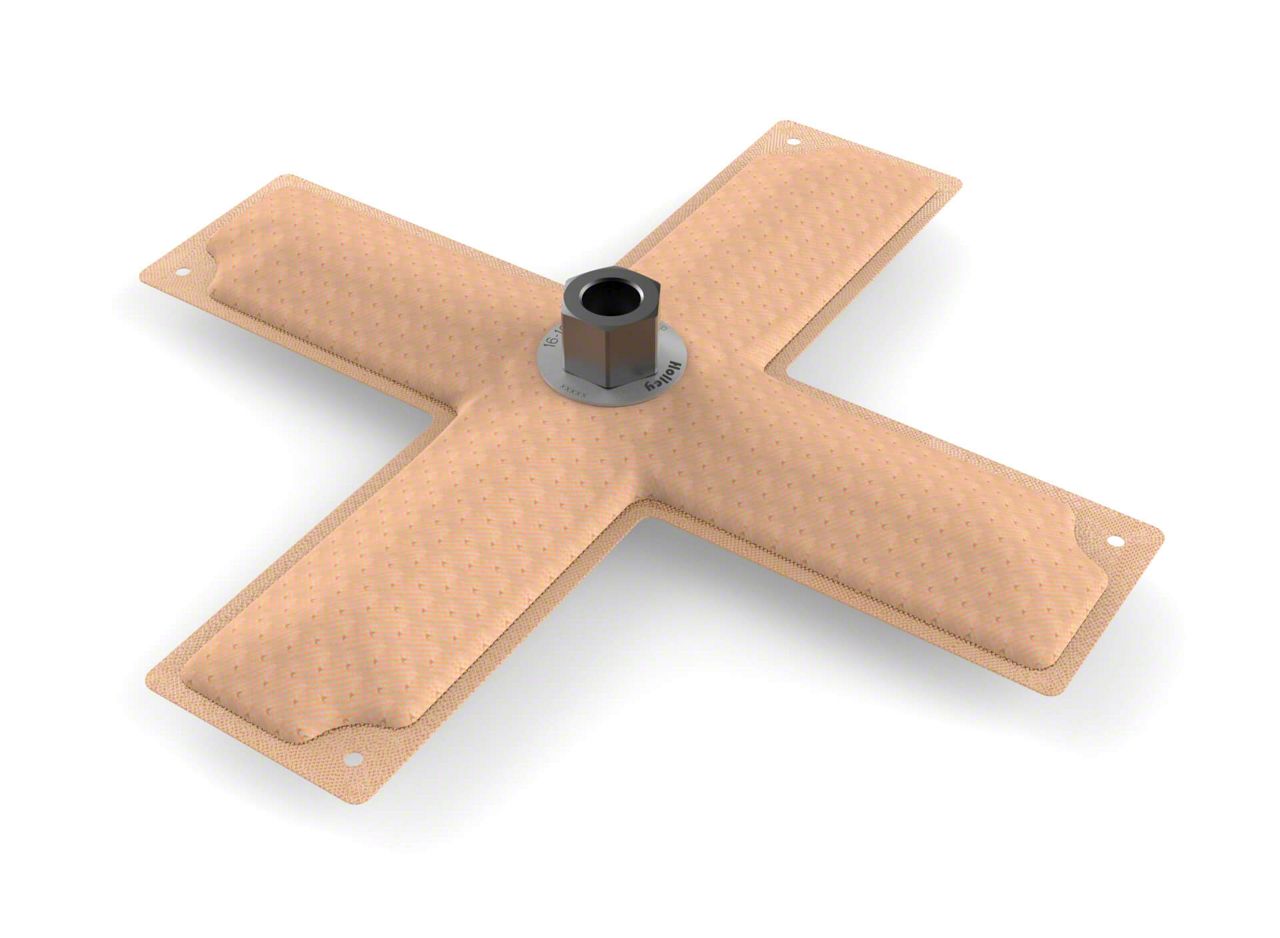

Holley Fuel Tank Pickup; HYDRAMAT (11X11 CROSS) - CENTER OUT- 3/8
Item JG4145
Sale
On Sale
-10% $368.96 Was $409.95
Military, Medical & First Responders
$18.45 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Part Features Center Outlet Pick-Up With 3/8 Inch NPT Fitting
- Fitting Location Designed For Universal Use
- Patent Pending Design Solves Fuel Pick-Up Problems In Stock Tanks And Racing Fuel Cells
- Reduces Air Entry Into Fuel System Preventing Poor Engine Performance And Stalling
- Effective During Hard Cornering, Acceleration, Stopping, Inclines, And Low Fuel Conditions
- Uses Surface Tension And Fluid Wicking To Draw Fuel From Nearly Any Contact Area
- Tiny Pores Seal Off As Areas Become Uncovered To Maintain Fuel In Reservoir
- Large Coverage Area Pulls Fuel From Virtually Any Area Eliminating Specialty Pumps
- Internal Reservoir Maintains Fuel Availability Under Extreme Fuel Slosh Conditions
- Acts As A 15 Micron Pre-Filter Removing Need For Separate Filter Before Fuel Pump
- Foldable And Compressible For Easy Installation Through Various Fuel Cell Openings
- Compatible With Alcohol, Ethanol, Methanol, And E85 Fuels
- Accepts 2-Cycle Oil Blends Up To 20:1
- Not Suitable For Most Oils Or Diesel Fuels
- HydraMat Dimensions Eleven Inches By Eleven Inches Suitable For Flat Bottom Rectangular Style Fuel Cells
- Recommended To Discharge Return Fuel Near Pick-Up At Minimum One Inch Above Mat
- Female NPT Thread Does Not Require Sealing Paste Or Tape To Prevent Fuel Pump Failure
- In-Tank Fixed Stud Mounting Recommended With Click Bond Stud Kits Available From Aircraft Retailers
- Fits Flat Bottom Rectangular Style Fuel Cells With Minimum Eleven By Eleven Inch Dimensions
Description
Innovative Fuel Management. The Holley Fuel Tank Pickup HYDRAMAT (11X11 CROSS) - CENTER OUT- 3/8 is a unique fuel pickup designed to maintain consistent fuel delivery during extreme driving conditions. It is installed inside fuel tanks or cells to prevent fuel starvation caused by fuel movement and tank inclination. This product helps maintain engine performance by minimizing air intrusion and fuel interruptions during hard cornering and acceleration.
Construction And Appearance. Constructed from a specialized porous media, the HydraMat features a patented internal reservoir with fluid-wicking properties. Its beige color and flexible design enable it to conform to various fuel cell shapes and allow folding for installation. Surface tension-driven pores ensure fuel retention even when portions of the mat are uncovered.
Installation. Installation requires no specialized drilling for tanks with adequate openings. The mat compresses and folds to fit through typical fuel cell openings, and the 3/8 inch female NPT fitting eliminates the need for sealing compounds, simplifying the mounting process.
Warranty. This product includes a manufacturer’s limited 90-day warranty. Application. Fits flat bottom rectangular style fuel cells with minimum dimensions of eleven inches long by eleven inches wide cross. Return fuel should be discharged near the pickup at a minimum height of one inch above the mat for optimal performance.
Holley 16-104
