Find Fuel System Parts for your Gladiator

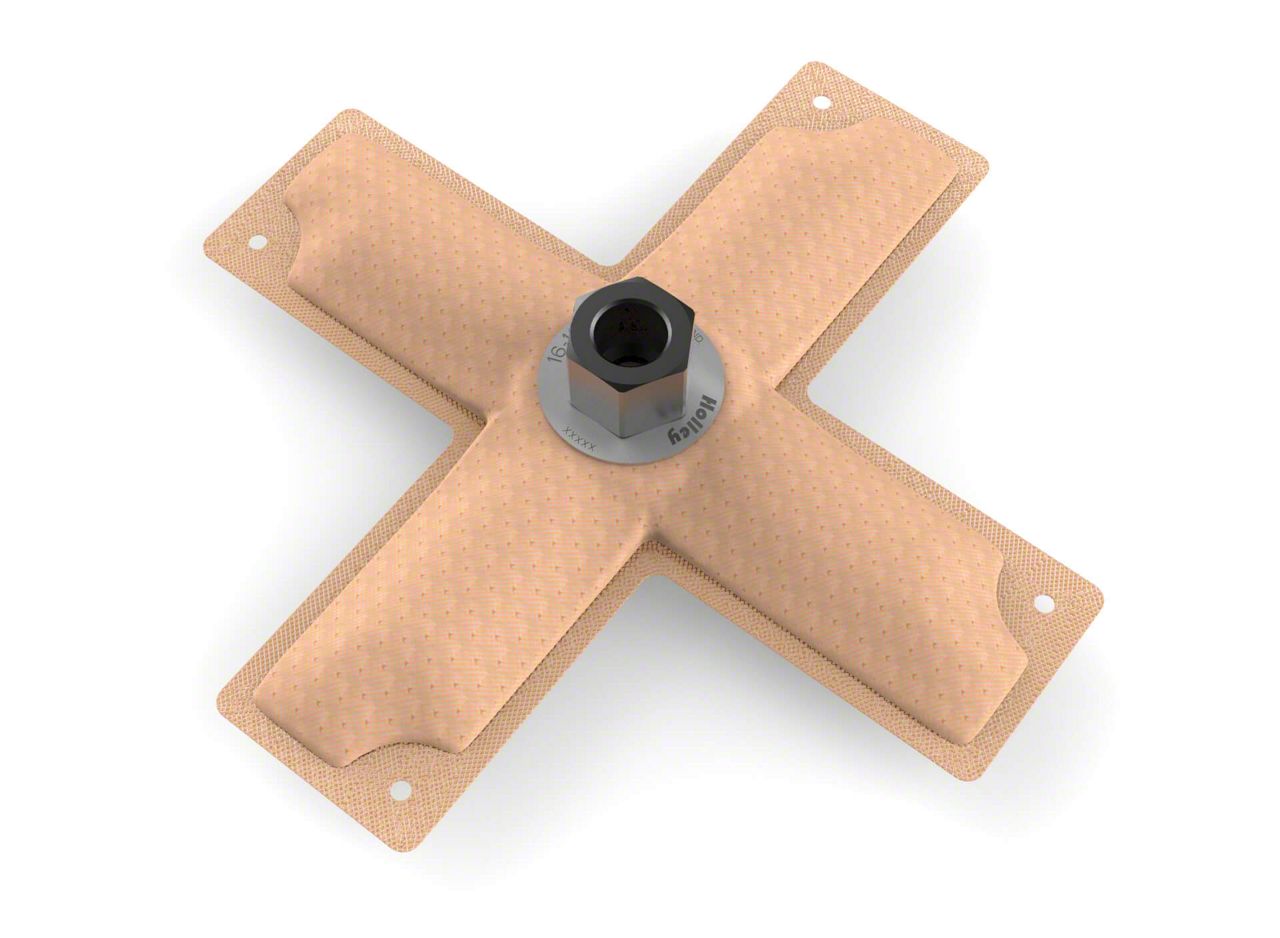

Holley Fuel Tank Pickup; HYDRAMAT (8X8 CROSS) CENTER OUT - 3/8 IN

Item JG4144
Product Image
Sale
1 Reviews
On Sale

-10% $285.26 Was $316.95

Military, Medical & First Responders $14.26 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Center Outlet Pick-Up With -3/8" NPSF Fitting
      • Fitting Location Designed For Universal Use
      • Patent Pending Design That Addresses Fuel Starvation and Air Introduction Issues in Stock Fuel Tanks and Racing Fuel Cells
      • Greatly Reduces Potential For Air To Enter Fuel System Resulting In Poor Engine Performance Or Stalling
      • Prevents Fuel Starvation During Hard Cornering, Acceleration, Stopping, Inclines, And Low Fuel Conditions
      • Surface Tension And Fluid Wicking Draw Fuel From Nearly Any Area In Contact With Fuel
      • Tiny Pores In The Media Seal Off As Areas Become Uncovered, Maintaining Fuel In Internal Reservoir
      • Large Coverage Area Allows Pulling Fuel From Virtually Any Area In Tank Or Cell
      • Eliminates Need For Specialty Reservoirs, Sumps, And Pick-Up Pumps
      • Acts As A 15 Micron Pre-Filter, Removing Need For Separate Filter Before Fuel Pump
      • Can Be Folded And Compressed For Easy Installation Through Various Fuel Cell Openings
      • Compatible With Alcohol, Ethanol, Methanol, E-85 Fuels, And 2-Cycle Oil Blends Up To 20:1
      • Not For Use With Diesel Fuels Or Most Oils
      • Fits Flat Bottom Rectangular Style Fuel Cells With Minimum Dimensions Of 8 Inches Long And 8 Inches Wide, Cross-Style With Center Outlet, Using A -3/8" NPSF Fitting

      Description

      Innovative Fuel Pickup Solution. The Holley Fuel Tank Pickup; HYDRAMAT (8X8 CROSS) CENTER OUT - 3/8 IN effectively addresses fuel starvation and air introduction issues common in both stock fuel tanks and racing fuel cells. Utilizing surface tension and fluid wicking principles, it consistently supplies fuel under extreme driving conditions such as hard cornering and low fuel levels, ensuring reliable engine performance and minimizing the risk of stalling.

      Construction and Appearance. This HydraMat features a microporous media designed to create an internal reservoir that retains fuel through fluid wicking and surface tension. Its flexible construction allows folding and compression for simple installation, while providing a durable performance-grade design compatible with alcohol-based fuels and specific oil blends.

      Installation. Installing the HydraMat is straightforward and does not require sealants or tapes on the female NPT fitting, reducing potential issues with fuel pump failure. It can be installed through typical fuel cell openings and can be secured using appropriate stud kits if needed.

      Application. Designed specifically to fit flat bottom rectangular fuel cells measuring at least 8 inches by 8 inches with a cross-style center outlet and a -3/8" NPSF fitting, ensuring optimal compatibility and reliable performance in these fuel cell configurations.

      Holley 16-103

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Tech Specs
