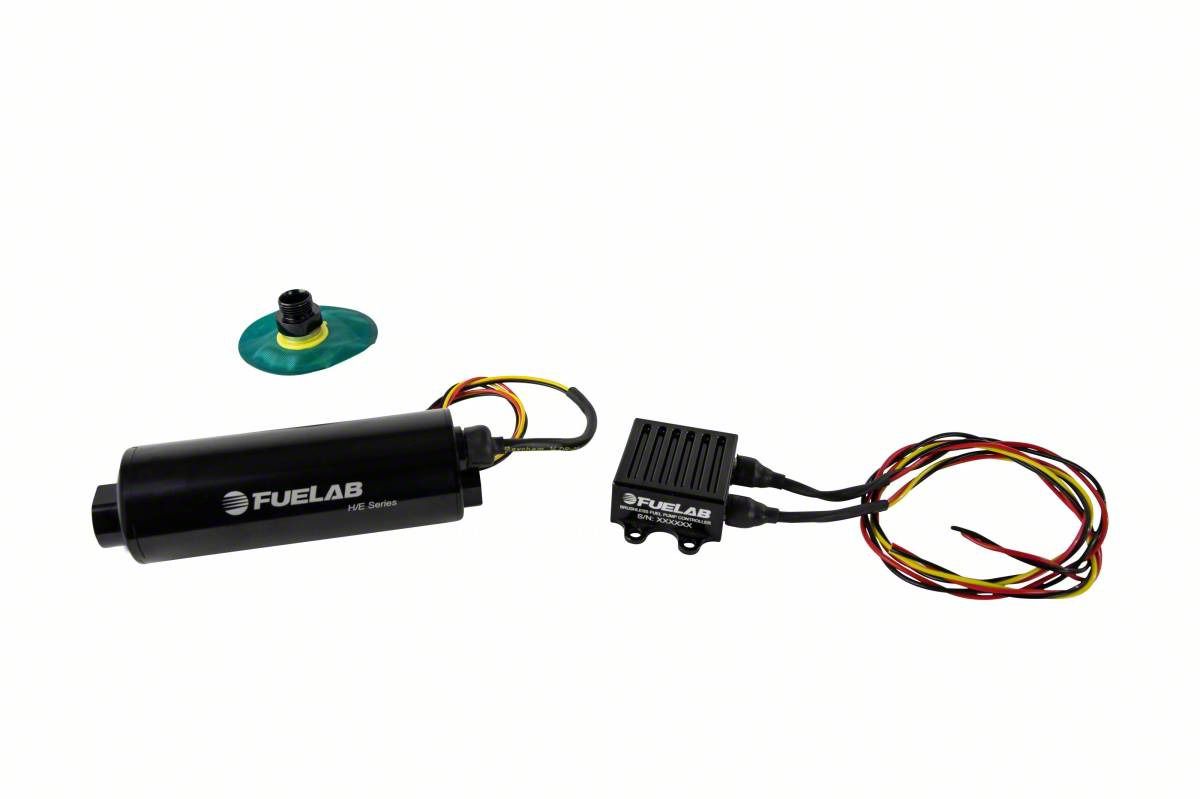

Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 300 LPH (Universal; Some Adaptation May Be Required)
Item FB68311
Our Price
$1,154.00
Military, Medical & First Responders
$57.70 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- In-Tank Fuel Pump Kit Contains 300LPH Twin Screw Brushless Pump, Remote Mount PWM Controller, and 65 Micron Straining Filter _x000D_
- Compatible With Gasoline, Diesel, Methanol, and Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125PSI Max Operating Pressure _x000D_
- Supports Up To 625HP At Continuous Speed On Pump Gas Naturally Aspirated Engines _x000D_
- Higher Efficiency Means Less Current Draw and Reduced Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation and Vapor Lock _x000D_
- Lightweight Super-Efficient DC Brushless Motor Minimizes Current Draw _x000D_
- High Flux Density Neodymium Rare Earth Magnets _x000D_
- Brushless Motor Design Eliminates Wear and Corrosion Issues _x000D_
- Wet Motor Design Without Dynamic Shaft Seals _x000D_
- Compatible With 12 To 16 Volt Vehicle Electrical Systems _x000D_
- Includes Model 72004 Pump Controller With Full Speed PWM and 0-5V Input Speed Control _x000D_
- Continuous Duty Motor Speed Capability _x000D_
- Compact Lightweight Design Weighing Less Than 3lbs _x000D_
- Billet Aluminum Construction Anodized Per MIL-A-8625 Type II _x000D_
- Multi-Fuel Compatible Fluorosilicone Static Seals For Longevity _x000D_
- Accepts Standard or Port Style -8AN Fittings _x000D_
- Compatible With PWM Frequencies Ranging From 100Hz To 5000Hz _x000D_
- Works With Most Aftermarket ECUs Including AEM, ECU Masters, Fueltech, Haltech, Holley, Link Engine Management, and Megasquirt _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Delivery. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 300 LPH is engineered to deliver consistent and efficient fuel flow for gasoline, diesel, methanol, and ethanol fuels. It ensures reliable fuel delivery up to 625 horsepower in naturally aspirated applications, making it ideal for high-performance engines requiring superior priming and resistance to vapor lock.
_x000D__x000D_Construction and Appearance. This fuel pump features a billet aluminum housing finished with MIL-A-8625 Type II anodizing for durability and corrosion resistance. Fluorosilicone static seals enhance multi-fuel compatibility and product longevity. The compact, lightweight design weighs under 3 pounds, facilitating easier installation.
_x000D__x000D_Installation. The pump mounts in-tank and connects to the included remote PWM controller. Installation generally requires minimal modification and is suitable for users with moderate mechanical experience; drilling is typically not necessary.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty covering manufacturing defects and quality assurance for the pump and motor components. Application. Fits universal applications; some adaptation may be required to accommodate specific vehicle configurations.
Fuelab 20811
