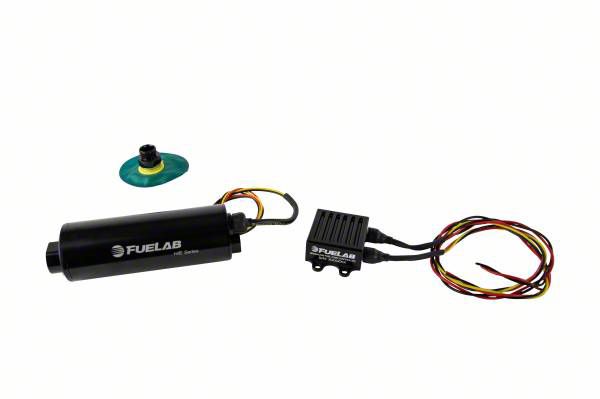

Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 1100 LPH (Universal; Some Adaptation May Be Required)

Item FB68315
Product Image
1 Reviews of Fuelab
Our Price

$1,574.00

Military, Medical & First Responders $78.70 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • In-Tank Fuel Pump Kit Contains 1100LPH Twin Screw Brushless Pump, Remote Mount PWM Controller, And 65 Micron Straining Filter
      • Limited Lifetime Warranty
      • To Be Used With 595 Series Fuel Pressure Regulators With .328" Orifice Or Larger
      • Compatible With Gasoline, Diesel, Methanol, And Ethanol
      • Twin Screw Rotor Pumping Mechanism
      • 125PSI Max Operating Pressure
      • 2800HP Power Support At Continuous Speed Pump Gas Naturally Aspirated
      • Higher Efficiency Means Less Current Draw And Less Noise
      • Superior Priming Capabilities
      • Greater Resistance To Cavitation And Vapor Lock
      • Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw
      • Powerful High Flux Density Neodymium Rare Earth Magnets
      • No Motor Brushes To Wear Out Or Corrode; Low-Sulfur Diesel Compatible
      • Wet Motor Design With No Dynamic Shaft Seals That Can Wear Out
      • 12 To 16 Volt Vehicle Electrical System Compatibility
      • Model 72006 Pump Controller Included For Full Speed Or PWM Input Speed Control
      • Continuous Duty Motor Speed
      • Compact Lightweight Design Less Than 3 Lbs
      • Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II
      • Long Life Multi-Fuel Compatible Fluorosilicone Static Seals
      • Accepts Standard Or Port Style -8AN Fittings
      • Compatible With Most Aftermarket ECUs With PWM Output Frequency From 100Hz To 5000Hz
      • Fits Universal; Some Adaptation May Be Required

      Description

      High-Performance Fuel Pump Kit. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit, -8AN, 1100 LPH is designed to deliver reliable, high-flow fuel supply for various fuel types including gasoline, diesel, methanol, and ethanol. This kit supports high-horsepower applications up to 2800HP with superior efficiency, low noise, and excellent priming capabilities.

      Construction and Appearance. The pump features a compact, lightweight design weighing less than 3 pounds, constructed from billet aluminum with a MIL-A-8625 Type II anodized finish for durability and corrosion resistance. It includes long-life fluorosilicone static seals compatible with multiple fuel types, ensuring extended service life and robustness.

      Installation. Installation is straightforward, designed for in-tank mounting without the need for complex modifications or drilling. The kit includes a remote mount brushless controller that provides full speed or PWM input speed control and is compatible with most aftermarket ECUs.

      Warranty. This product is backed by a limited lifetime warranty, providing assurance of its quality and durability.

      Application. Fits universal applications with some adaptation required to ensure compatibility with specific fuel pressure regulators and vehicle electrical systems.

      Fuelab 20815
