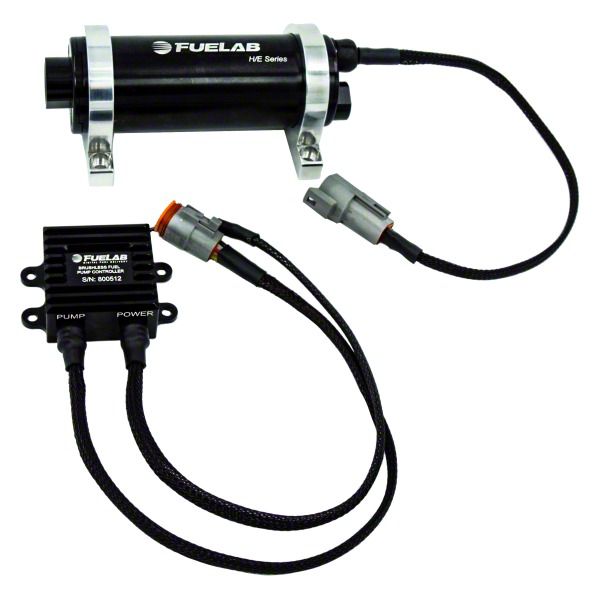

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH (Universal; Some Adaptation May Be Required)

Item FB68334
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Features, Description, Q&A

    Features

    • High Efficiency EFI In-Line Fuel Pump Rated Up To 1500HP Street/Strip Twin Screw DC Brushless Driven Fuel Pump
    • Limited Lifetime Warranty
    • 625 LPH At 45 PSI, 125 PSI Max Operating Pressure, 13.5V
    • Compatible With Gasoline, Diesel, Methanol, And Ethanol
    • Twin Screw Rotor Pumping Mechanism
    • 1500HP Power Support At Continuous Speed
    • Higher Efficiency Means Less Current Draw And Less Noise
    • Superior Priming Capabilities
    • Greater Resistance To Cavitation And Vapor Lock
    • Lightweight Super-Efficient DC Brushless Motor Minimizes Current Draw
    • Powerful High Flux Density Neodymium Rare Earth Magnets
    • No Motor Brushes To Wear Out Or Corrode—Compatible With Low-Sulfur Diesel
    • Wet Motor Design With No Dynamic Shaft Seals To Wear Out
    • Compatible With 12 To 16 Volt Vehicle Electrical Systems
    • Includes Model 72004 Pump Controller For Full Speed Or PWM Input Speed Control
    • Continuous Duty Motor Speed
    • Compact Lightweight Design: Less Than 3lbs, Overall Length 7.13 Inches, Diameter 2.0 Inches
    • Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II
    • Includes Two Billet Aluminum Mounting Brackets
    • Long Life Multi-Fuel Compatible Fluorosilicone Static Seals
    • Accepts Standard Or Port Style -8AN Fittings
    • Fits Universal Applications; Some Adaptation May Be Required

    Description

    High Performance Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH is designed to deliver consistent and reliable fuel flow for high horsepower applications up to 1500HP. This pump is ideal for enthusiasts and professionals seeking a robust, efficient solution to support street and strip EFI fuel systems. Its advanced design supports a wide variety of fuels including gasoline, diesel, methanol, and ethanol.

    Construction and Appearance. Built with billet aluminum and finished with a durable anodize coating per MIL-A-8625 Type II standards, this fuel pump features a compact and lightweight design weighing less than 3 pounds. It utilizes a precision twin screw rotor pumping mechanism combined with a super-efficient brushless DC motor that incorporates rare earth neodymium magnets for optimal performance and longevity.

    Installation. Installation is straightforward with included billet aluminum mounting brackets and compatibility with standard -8AN fittings, minimizing the need for modifications or drilling. Its compact, lightweight design allows flexible placement in most EFI setups.

    Warranty. This pump is backed by a limited lifetime warranty, ensuring long-term reliability and peace of mind.

    Application. Fits universal applications with some adaptation potentially required depending on specific vehicle or system setup.

    Fuelab 47414
