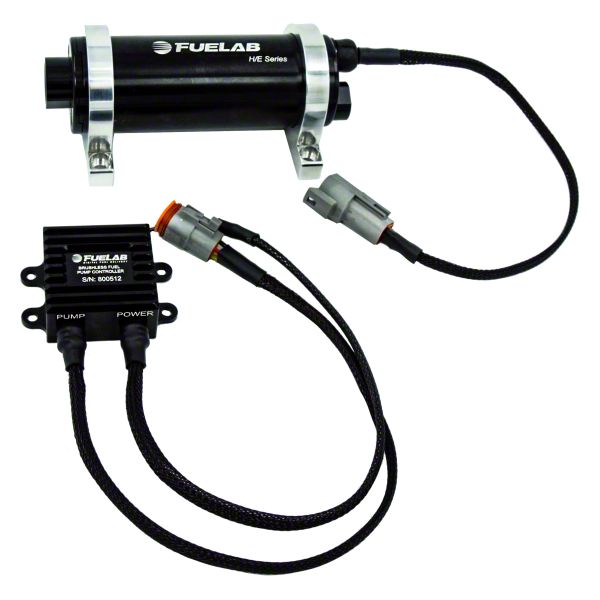

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH (Universal; Some Adaptation May Be Required)

Item FB68333
Product Image
1 Reviews of Fuelab
Our Price

$1,311.00

Military, Medical & First Responders $65.55 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • High Efficiency EFI In Line Fuel Pump, Rated Up To 1250HP, Street/Strip, Twin Screw DC Brushless Driven Fuel Pump
      • Limited Lifetime Warranty
      • 550 LPH @ 45PSI, 125PSI Max
      • 13.5V Operating Voltage
      • Compatible With Gasoline, Diesel, Methanol, And Ethanol
      • Twin Screw Rotor Pumping Mechanism
      • 125PSI Max Operating Pressure
      • 1250HP Power Support At Continuous Speed
      • Higher Efficiency Means Less Current Draw And Less Noise
      • Superior Priming Capabilities
      • Greater Resistance To Cavitation (Vapor Lock)
      • Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw
      • Powerful High Flux Density Neodymium Rare Earth Magnets
      • No Motor Brushes To Wear Out Or Corrode
      • Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out
      • 12 To 16 Volt Vehicle Electrical System Compatibility
      • Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control
      • Continuous Duty Motor Speed
      • Compact, Lightweight Design, Less Than 3lbs
      • Overall Length 7.13”, Diameter 2.0”
      • Billet Aluminum Construction With Anodize Per MIL-A-8625, Type II
      • Includes Two Billet Aluminum Mounting Brackets
      • Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals
      • Accepts Standard Or Port Style -8AN Fittings
      • Fits Universal; Some Adaptation May Be Required

      Description

      High Performance Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH delivers reliable, high-volume fuel flow for EFI systems, supporting up to 1250 horsepower. It is designed for street and strip applications, providing excellent priming and resistance to vapor lock, ensuring consistent fuel delivery under demanding conditions.

      Construction and Appearance. Manufactured from billet aluminum with a MIL-A-8625 Type II anodized finish, this compact and lightweight pump weighs under 3 pounds. Its internal components feature multi-fuel compatible fluorosilicone static seals, and the motor utilizes a wet design with high-flux neodymium magnets for efficient, brushless operation.

      Installation. Installation is straightforward with included billet aluminum mounting brackets and acceptance of standard or port-style -8AN fittings. Some adaptation may be necessary depending on the vehicle setup.

      Warranty. This pump comes backed by a limited lifetime warranty.
      Application. Fits universal applications; some adaptation may be required.

      Fuelab 47413
