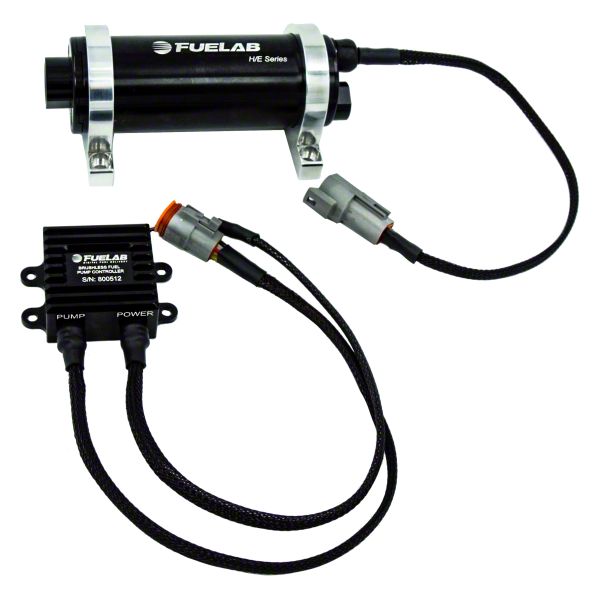

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 300 LPH (Universal; Some Adaptation May Be Required)
Item FB68331
Our Price
$1,206.00
Military, Medical & First Responders
$60.30 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In-Line Fuel Pump Rated Up To 625HP for Street and Strip Applications _x000D_
- Limited Lifetime Warranty _x000D_
- 300 LPH Flow Rate at 45 PSI, with 125 PSI Maximum Operating Pressure _x000D_
- 13.5V Power Supply Compatible with 12 to 16 Volt Vehicle Electrical Systems _x000D_
- Compatible with Gasoline, Diesel, Methanol, and Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism for Superior Priming and Reduced Vapor Lock _x000D_
- 625HP Power Support at Continuous Speed _x000D_
- Higher Efficiency Results in Lower Current Draw and Reduced Noise _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- Brushless DC Motor Design with No Brushes to Wear Out or Corrode, Suitable for Low Sulfur Diesel _x000D_
- Wet Motor Design without Dynamic Shaft Seals to Maximize Durability _x000D_
- Model 72004 Pump Controller Included for Full Speed or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed for Reliable Performance _x000D_
- Compact and Lightweight Design; Overall Length 7.13 inches, Diameter 2.0 inches, and Weight Less Than 3 lbs _x000D_
- Billet Aluminum Construction with Anodize Finish per MIL-A-8625 Type II for Durability and Corrosion Resistance _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard or Port Style -8AN Fittings _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
Description
High Performance Fuel Supply. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump (-8AN; 300 LPH) is engineered to deliver reliable fuel flow for applications up to 625 horsepower. Designed for street and strip use, it provides consistent pressure and flow with compatibility across multiple fuels including gasoline, diesel, methanol, and ethanol. The advanced twin screw rotor mechanism ensures superior priming capabilities and excellent resistance to vapor lock, vital for high-performance engines.
_x000D__x000D_Construction and Appearance. Constructed from billet aluminum and finished with a MIL-A-8625 Type II anodized coating, the pump offers enhanced durability and corrosion resistance. Its compact and lightweight design measures 7.13 inches in overall length, 2.0 inches in diameter, and weighs under 3 lbs, making it ideal for tight installation spaces. The pump features fluorosilicone static seals compatible with multiple fuel types to maximize longevity.
_x000D__x000D_Installation. Installation is made straightforward with the inclusion of two billet aluminum mounting brackets and compatibility with standard or port style -8AN fittings. The fuel pump fits universal applications, though some adaptation may be necessary depending on specific vehicle setups, making it suitable for both professional installers and experienced enthusiasts.
_x000D__x000D_Warranty. Backed by a limited lifetime warranty, this fuel pump offers assurance of durability and reliable performance.
_x000D__x000D_Application. Suitable for universal applications with some adaptation required for certain configurations.
