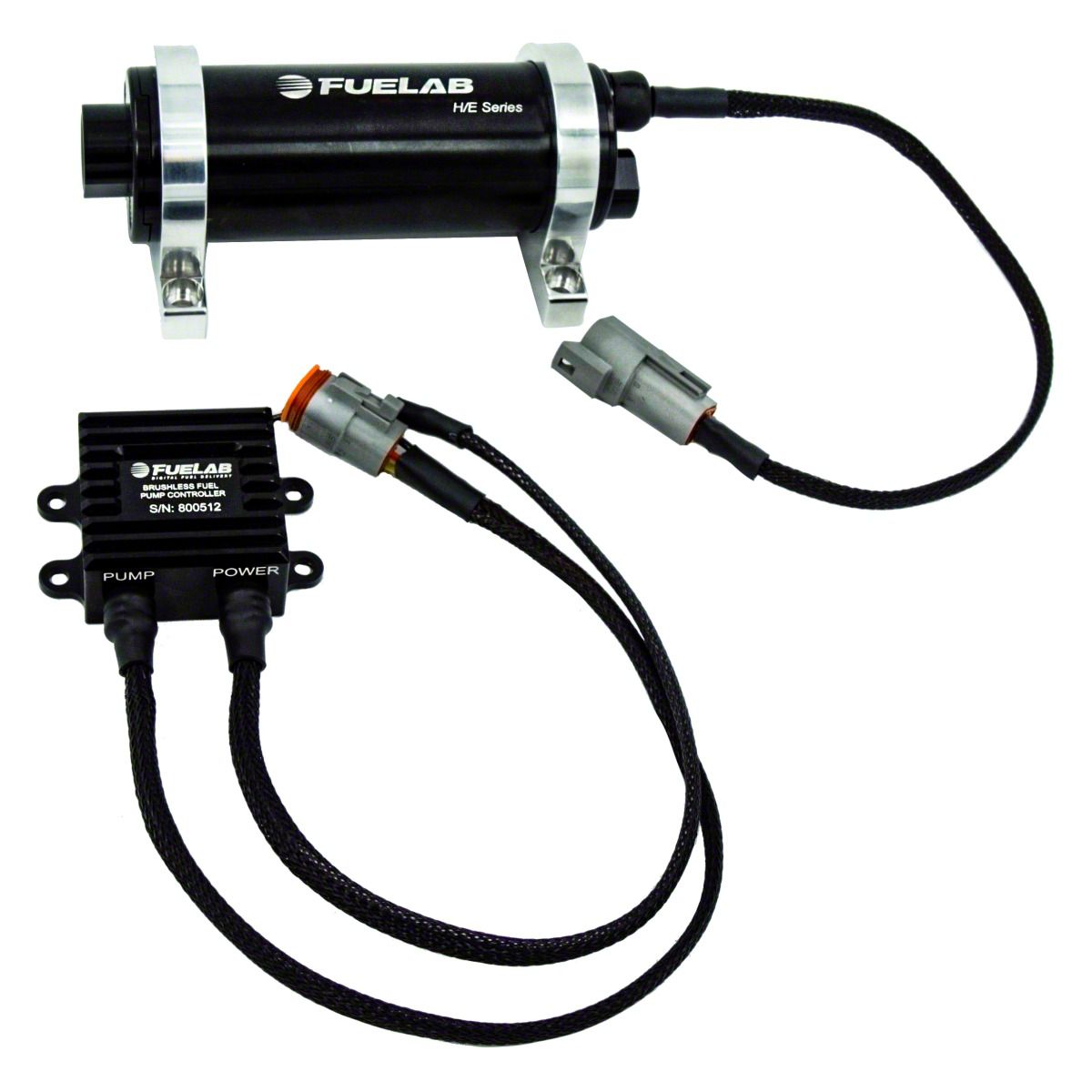

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 1100 LPH (Universal; Some Adaptation May Be Required)
Item FB68335
Our Price
$1,574.00
Military, Medical & First Responders
$78.70 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In-Line Fuel Pump Rated Up To 2800hp Street/Strip Twin Screw DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- To Be Used With 595 Series Fuel Pressure Regulators With .328" Orifice Or Larger _x000D_
- 1100 LPH At 45psi, 125psi Max Operating Pressure _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 2800hp Power Support At Continuous Speed _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation And Vapor Lock _x000D_
- Lightweight Super-efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode _x000D_
- Wet Motor Design With No Dynamic Shaft Seals That Can Wear Out _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Model 72006 Pump Controller Included For Full Speed Or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact Lightweight Design; Less Than 3lbs; Overall Length 7.13 Inches, Diameter 2.0 Inches _x000D_
- Billet Aluminum Construction With MIL-A-8625 Type II Anodized Finish _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
High Capacity Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 1100 LPH is designed to support up to 2800 horsepower, providing reliable fuel delivery for high-performance street and strip applications. It ensures consistent fuel flow with superior priming capabilities and resistance to vapor lock, making it ideal for demanding EFI systems using multiple fuel types including gasoline, diesel, methanol, and ethanol.
_x000D__x000D_Construction and Appearance. Constructed from billet aluminum with a MIL-A-8625 Type II anodized finish, this pump is lightweight and compact, weighing less than 3 pounds. Its durable design includes fluorosilicone static seals for multi-fuel compatibility and comes with two billet aluminum mounting brackets for secure installation.
_x000D__x000D_Installation. Installation is straightforward and requires no drilling; the pump fits standard or port style -8AN fittings and is compatible with 12 to 16 volt vehicle electrical systems. It includes a Model 72006 pump controller that allows for full speed or PWM input speed control, providing continuous duty motor operation.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty.
_x000D__x000D_Application. Fits universal. Some adaptation may be required.
