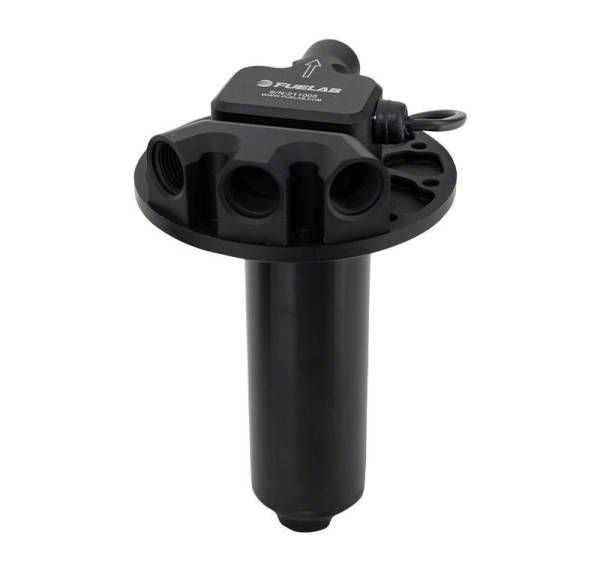

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 850 HP; 400 LPH (Universal; Some Adaptation May Be Required)
Item FB68394
Our Price
$1,311.00 each
Military, Medical & First Responders
$65.55 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 400 Lph at 45 Psi, 125 Psi Max
- 13.5V Rated Up to 850 Hp
- Compatible with Gasoline, Diesel, Methanol, and Ethanol
- Twin Screw Rotor Pumping Mechanism
- 125 Psi Max Operating Pressure
- Higher Efficiency Means Less Current Draw and Less Noise
- Superior Priming Capabilities
- Greater Resistance to Cavitation and Vapor Lock
- 12 to 16 Volt Vehicle Electrical System Compatibility
- Variable Duty Motor Speed
- Lightweight, Super-Efficient DC Brushless Motor
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes to Wear Out or Corrode
- Wet Motor Design Without Dynamic Shaft Seals
- Compact, Lightweight Design, Less Than 2.5 lbs
- Billet Aluminum Construction with Anodize per MIL-A-8625 Type II
- Flange Mounted SAE 10-Bolt Pattern for Easy Use with Fuel Cells or Fabricated Reservoirs
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard or Port Style -8 AN Fittings
- Fits Universal; Some Adaptation May Be Required
Description
HIGH-PERFORMANCE FUEL DELIVERY. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump, rated for 850 HP and 400 LPH, is engineered to provide reliable, high-flow fuel delivery for engines up to 850 horsepower. It operates efficiently at high pressure, making it ideal for high-demand automotive applications where stable fuel supply and flow are critical for optimal performance. This fuel pump supports various fuels including gasoline, diesel, methanol, and ethanol.
CONSTRUCTION AND APPEARANCE. The pump features a billet aluminum body anodized per MIL-A-8625 Type II for a durable, corrosion-resistant finish. It is compact and lightweight, weighing less than 2.5 pounds with an 8-inch overall length and 2-inch diameter. The use of fluorosilicone static seals ensures long life and multi-fuel compatibility, while the wet motor design with neodymium rare earth magnets enhances efficiency and durability.
INSTALLATION. Installation is straightforward with the SAE 10-bolt flange mount pattern allowing easy integration into fuel cells or fabricated reservoirs. No drilling of the pump housing is required. Some adaptation to the mounting surface may be necessary depending on the application.
WARRANTY. This fuel pump is backed by a limited lifetime warranty, providing long-term protection and assurance for users.
APPLICATION. Fits universal applications with some adaptation required to fit specific vehicles or setups.
Fuelab 93902
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Screw Pump
