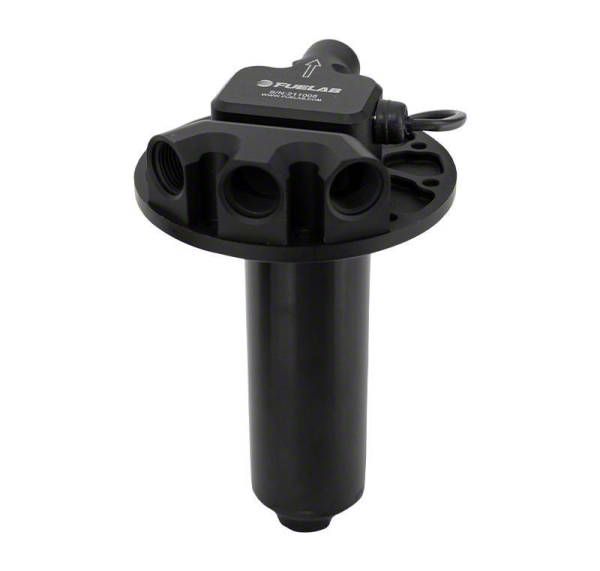

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 2800 HP; 1100 LPH (Universal; Some Adaptation May Be Required)

Item FB68397
Product Image
1 Reviews of Fuelab
Our Price

$1,626.00

Military, Medical & First Responders $81.30 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • H/E Series 2800 HP SAE Plate Mount Brushless Screw Pump, 1100 LPH, Speed Controllable
      • Limited Lifetime Warranty
      • To Be Used With 595 Series Fuel Pressure Regulators With .328" Orifice Or Larger
      • 1100 LPH @ 45 PSI, 125 PSI MAX
      • 13.5V Rated Up To 2800 HP
      • Compatible With Gasoline, Diesel, Methanol, And Ethanol
      • Twin Screw Rotor Pumping Mechanism
      • 125 PSI Max Operating Pressure
      • Higher Efficiency Means Less Current Draw And Less Noise
      • Superior Priming Capabilities
      • Greater Resistance To Cavitation (Vapor Lock)
      • 12 To 16 Volt Vehicle Electrical System Compatibility
      • Variable Duty Motor Speed
      • Lightweight Super-Efficient DC Brushless Motor
      • Powerful High Flux Density Neodymium Rare Earth Magnets
      • No Motor Brushes To Wear Out Or Corrode
      • Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out
      • Compact, Lightweight Design, Less Than 2.5 lbs
      • Overall Length 8", Pump Diameter 2"
      • Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II
      • Flange Mounted SAE 10-Bolt Pattern For Easy Use With Fuel Cells Or Fabricated Reservoirs
      • Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals
      • Accepts Standard Or Port Style -8AN Fittings
      • Compatible With Most Aftermarket ECUs With PWM Output Frequency From 100 Hz To 5000 Hz
      • Fits Universal; Some Adaptation May Be Required

      Description

      High-Performance Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump delivers superior fuel flow and pressure for high-horsepower applications. It supports engines up to 2800 horsepower with a continuous flow rate of 1100 liters per hour at 45 PSI, making it ideal for racing and demanding street engines. Its variable speed brushless motor provides efficient, quiet operation while supporting multiple fuel types including gasoline, diesel, methanol, and ethanol.

      Construction and Appearance. Constructed from billet aluminum with a MIL-A-8625 Type II anodized finish, the pump is lightweight yet robust. It features a compact design measuring 8 inches in length with a 2-inch diameter and incorporates multi-fuel compatible fluorosilicone seals for enhanced durability. The flange mount uses an SAE 10-bolt pattern, suitable for fuel cells and fabricated reservoirs.

      Installation. Installation is straightforward with the SAE flange mounting system requiring no extensive modifications or drilling in most cases. The pump is designed for use with standard or port style -8AN fittings, allowing easy integration with existing fuel systems.

      Warranty. Backed by a limited lifetime warranty, this pump ensures long-term reliability and customer peace of mind.

      Application. Designed to fit universal applications; some adaptation may be required to integrate with various vehicle fuel systems.

      Fuelab 93905
