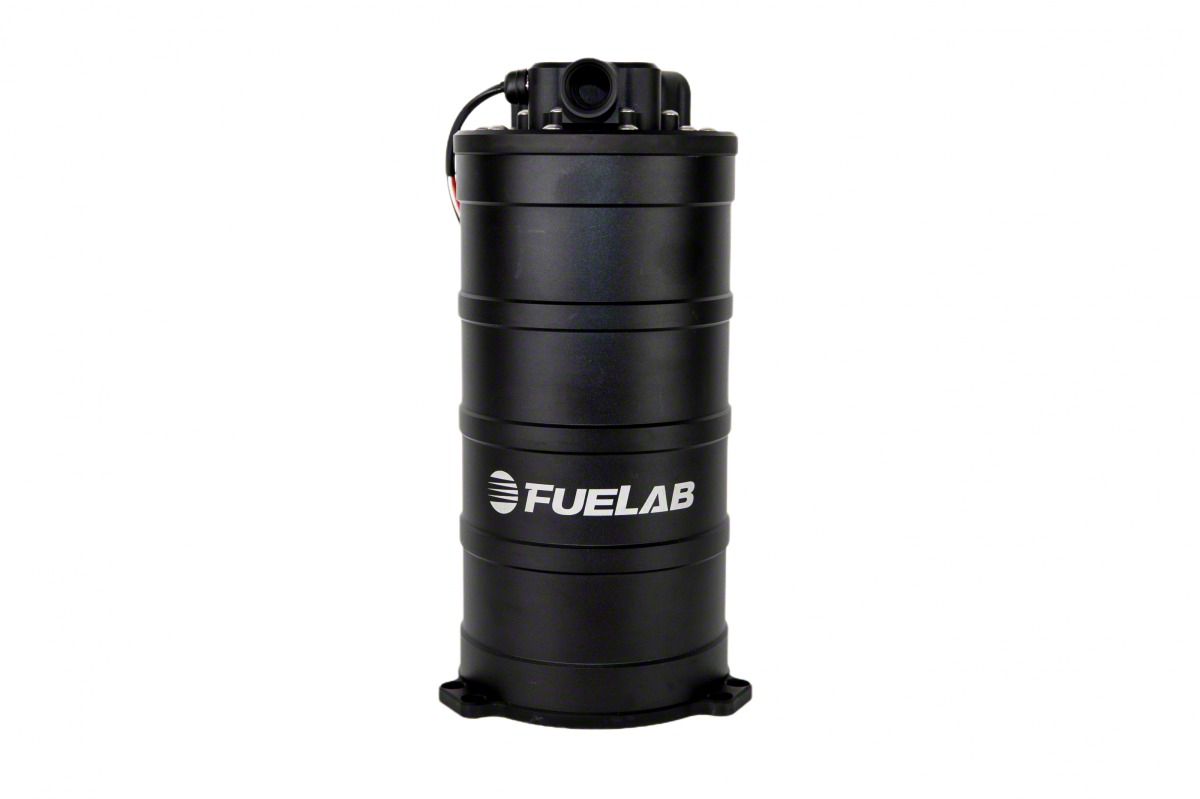

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item FB68357
Product Image
1 Reviews of Fuelab
Our Price

$1,679.00

Military, Medical & First Responders $83.95 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • H/E Series 290mm Tall Fuel Surge Tank System with 850 HP SAE Plate Mount and Brushless Twin Screw Pump
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • 2.7L Fuel Surge Tank System
        • _x000D_
      • Speed Controllable Twin Screw DC Brushless Fuel Pump, 400 LPH
        • _x000D_
      • High Fuel Flow Output with Minimal Modifications to the OE Fuel Tank and Module
        • _x000D_
      • Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel
        • _x000D_
      • Dimensions: 290mm Tall
        • _x000D_
      • Rated Volume: 2.7 L
        • _x000D_
      • Single Twin Screw DC Brushless Fuel Pump Included
        • _x000D_
      • Rated to Flow 400 LPH at 45 PSI (Max 125 PSI)
        • _x000D_
      • Integrated Controller with PWM Speed Control
        • _x000D_
      • Billet Aluminum Construction with O-ring Seals and -8AN Fuel Ports
        • _x000D_
      • Compatible with Pump Gasoline, Racing Gasoline, and E85
        • _x000D_
      • Return Line Required to Return Excess Fuel to Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Backed by Limited Lifetime Warranty
        • _x000D_
      • Pulse Width Modulation (PWM) Compatibility
        • _x000D_
      • Compatible with Most Aftermarket ECUs Supporting PWM Output Frequency
        • _x000D_
      • Compatible with PWM Frequencies from 100Hz to 5000Hz
        • _x000D_
      • Universal Fit; Some Adaptation May Be Required
        • _x000D_

      Description

      Fuel Surge Tank System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump rated for 850 HP and measuring 290mm tall is engineered to enhance fuel delivery by maintaining a consistent fuel supply and preventing fuel sloshing. This system is ideal for high-performance applications that demand reliable fuel flow without extensive modifications to the original equipment tank, ensuring consistent and efficient fuel pressure under demanding conditions.

      _x000D__x000D_

      Construction and Appearance. Built from billet aluminum with O-ring seals, this tank system offers durability and leak prevention. It uses -8AN fuel ports and includes a brushless twin screw DC fuel pump designed for longevity and compatibility with pump gasoline, racing gasoline, and E85 fuels.

      _x000D__x000D_

      Installation. Requires moderate mechanical skills but no specialized drilling. It mounts securely via SAE plate mounts, facilitating straightforward installation. The system integrates with existing vehicle fuel systems with minimal adaptation.

      _x000D__x000D_

      Warranty and Application. Backed by a limited lifetime warranty for durability and performance assurance. Designed to fit universal applications; some vehicle-specific adaptation may be necessary for proper integration.

      Fuelab 61712
