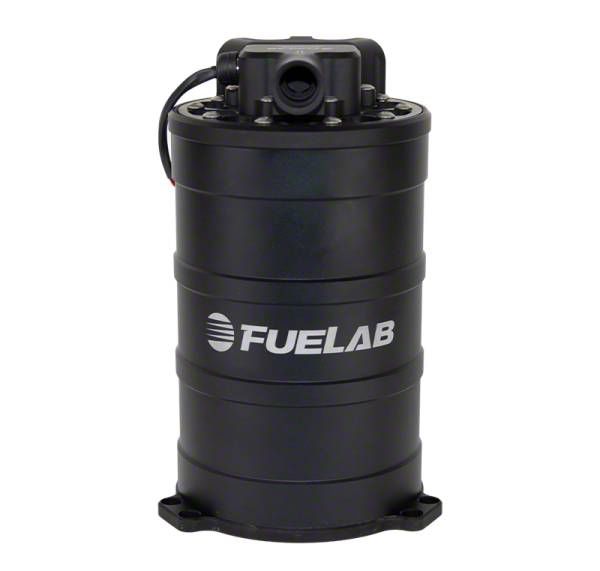

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 625 HP; 235mm Tall (Universal; Some Adaptation May Be Required)

Item FB68352
Product Image
1 Reviews of Fuelab
Our Price

$1,616.00

Military, Medical & First Responders $80.80 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • H/E Series 235mm Tall Fuel Surge Tank System with 625 HP SAE Plate Mount Brushless Twin Screw Pump
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • 2.1L Fuel Surge Tank System with Speed Controllable, Twin Screw DC Brushless Fuel Pump, 300 LPH
        • _x000D_
      • Allows High Fuel Flow Output with Minimal or No Modifications to the OE Fuel Tank and Module
        • _x000D_
      • Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel
        • _x000D_
      • 235mm Tall
        • _x000D_
      • FST Rated Volume: 2.1 L
        • _x000D_
      • Single Twin Screw DC Brushless Fuel Pump Included
        • _x000D_
      • Rated to Flow 300 LPH at 45 PSI, 125 PSI Max
        • _x000D_
      • Integrated Controller with PWM Speed Control
        • _x000D_
      • Billet Aluminum and O-Ring Construction Using -8AN Fuel Ports
        • _x000D_
      • Compatible with Pump and Racing Gasoline, and E85
        • _x000D_
      • Return Line Required, Returns Excess Fuel Back to the Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Pulse Width Modulation Compatibility (PWM) from 100Hz to 5000Hz
        • _x000D_
      • Compatible with Most Aftermarket ECUs with PWM Output Frequency Such as AEM, ECU Masters, Fueltech, Haltech, Holley, Link Engine Management, Megasquirt
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced Fuel Delivery. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump, rated for 625 HP and standing 235mm tall, is designed to ensure a consistent and high-rate fuel supply to high-performance engines. It effectively prevents fuel starvation by maintaining a ready volume of fuel, making it essential for vehicles with demanding fuel requirements. This system provides high fuel flow output without extensive modification to the original fuel tank.

      _x000D_

      Construction and Appearance. This fuel surge tank features billet aluminum construction combined with precision O-ring sealing for durability and leak prevention. Its design incorporates -8AN fuel ports and a compact 235mm tall profile. The integrated fuel pump controller supports PWM speed control, allowing precise fuel flow management compatible with a wide range of aftermarket ECUs.

      _x000D_

      Installation. Installation generally requires moderate mechanical skill and does not typically involve drilling modifications to the original fuel tank or module. It mounts using SAE plate mounts designed for straightforward integration into fuel systems. A return line is required to route excess fuel back to the main fuel tank.

      _x000D_

      Warranty. This fuel surge tank system includes a limited lifetime warranty, providing long-term reliability assurance.

      _x000D_

      Application. Fits universal applications; some adaptation may be required.

      Fuelab 61701
