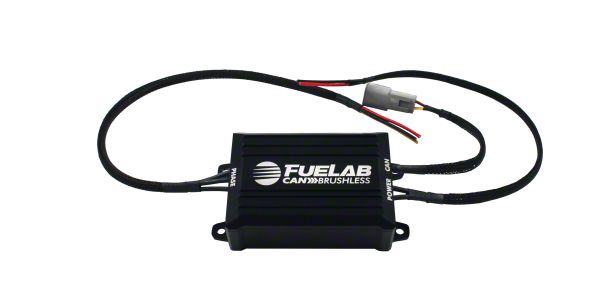

Fuelab CAN Bus Brushless Fuel Pump Controller; 50 AMP (Universal; Some Adaptation May Be Required)

Item FB68381
Product Image
1 Reviews of Fuelab
Our Price

$630.00

Military, Medical & First Responders $31.50 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Advanced CAN Integration
        • _x000D_
      • User-Friendly CANopen Communication Allows Easy Tie-In to Controller
        • _x000D_
      • Customizable CAN Calibration Options
        • _x000D_
      • Data Streams Include Pump State (On, Off), Pump Voltage, Pump Amperage, Pump Motor Speed, PWM Frequency, and Controller Temperature
        • _x000D_
      • Multiple Default and Custom Data Codes for Accurate Diagnostics
        • _x000D_
      • Compatible With 3-Phase DC Brushless Fuel Pumps
        • _x000D_
      • 3-Wire Design Without Internal Controllers Only
        • _x000D_
      • Compatible With 12V and 24V Electrical Systems
        • _x000D_
      • 50 Amp Maximum Output Capacity
        • _x000D_
      • Durable Billet Aluminum Enclosure
        • _x000D_
      • Backed by a Limited Lifetime Warranty
        • _x000D_
      • Compatible With Most Aftermarket ECUs Featuring PWM Output Frequency
        • _x000D_
      • Supports PWM Frequencies From 100Hz to 5000Hz
        • _x000D_
      • Universal Fitment; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance Fuel Pump Control. The Fuelab CAN Bus Brushless Fuel Pump Controller, 50 AMP, is engineered to precisely regulate fuel pump operation through advanced CAN communication protocols. It accepts multiple speed inputs, including PWM and 0-5V signals, making it suitable for integration with a wide variety of aftermarket engine management systems. This controller continuously monitors pump performance metrics such as voltage, amperage, motor speed, and controller temperature to ensure optimal fuel delivery.

      _x000D__x000D_

      Construction and Appearance. Encased in a durable billet aluminum housing, this controller is designed for longevity and effective heat dissipation. It supports both 12V and 24V electrical systems and is intended specifically for 3-wire, brushless fuel pumps without internal controllers. The rugged finish provides protection against harsh engine bay conditions.

      _x000D__x000D_

      Installation. Installation is straightforward for individuals experienced with fuel systems and ECU integration, requiring no drilling. Its external design simplifies mounting and connection to existing wiring harnesses.

      _x000D__x000D_

      Warranty. This product includes a limited lifetime warranty, providing reliability and peace of mind.

      _x000D__x000D_

      Application. Designed for universal applications; however, some adaptation may be necessary depending on specific vehicle and system configurations.

      Fuelab 72007
