How to Install DV8 Off-Road FS-19 Hammer Forged Front Bumper on your Wrangler

Shop Parts in this Guide

1) Remove the factory bumper, air dam, and frame cover (optional).

A) Remove the air dam by pulling on the plastic clips holding it in place with a set of pliers.


B) Remove the factory front bumper by removing the 4 factory nuts on both bumper mounts. Unclip the wiring harness from the fog lights.

C) Cut the zip ties holding the factory fog light harness to the factory bumper.





A) Lift the bumper up to the frame and insert studs into the frame holes where the stock bumper originally mounted.

B) Loosely insert the lock washers and nuts onto the studs. Once all studs are in the proper mounting positions check the alignment and tighten to 60 ft/ lbs .



C) Reconnect the fog light harness to the fog light that is now installed into your new bumper


Note: For LFS Series bumpers cut the factory fog light harness off and splice the wires coming from your bumper into the factory fog light wiring.

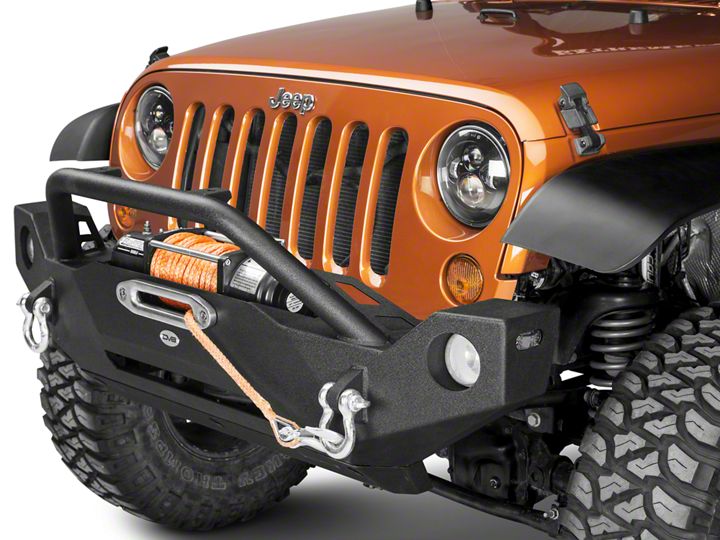

Enjoy Your new DV8 Bumper!
