How to Install Dirty Dog 4x4 Full Cargo/Pet Divider - Black (07-18 Jeep Wrangler JK 4 Door) on your Jeep Wrangler
Shop Parts in this Guide
1. Place the divider into the rear of the vehicle and run a top fabric strap over the rear roll bar and into the plastic buckle (Figure A).
Figure A
2. Thread the fabric strap back through the buckle to secure (Figure B).
Figure B
3. Repeat Steps 1 and 2 for the other three top straps (Figure C).
Figure C
4. Run the corner strap up over the rear roll bar around the edge on both sides (Figure D).
Figure D
5. Connect the strap around the other end and Velcro together on both sides (Figure E).
Figure E
6. Run the bottom fabric strap through the rear seat bracket and connect to the bottom facing buckle on both sides (Figure F).
Figure F
7. Thread the supplied bolt into the hardtop mounting location on both sides and tighten down with an Allen wrench (Figure G).
Figure G
8. Run the fabric straps through the buckles just mounted (Figure H).
Figure H
9. Connect the top corner straps to the roll bar just above the seat belt mounts (Figure I).
Figure I
Before

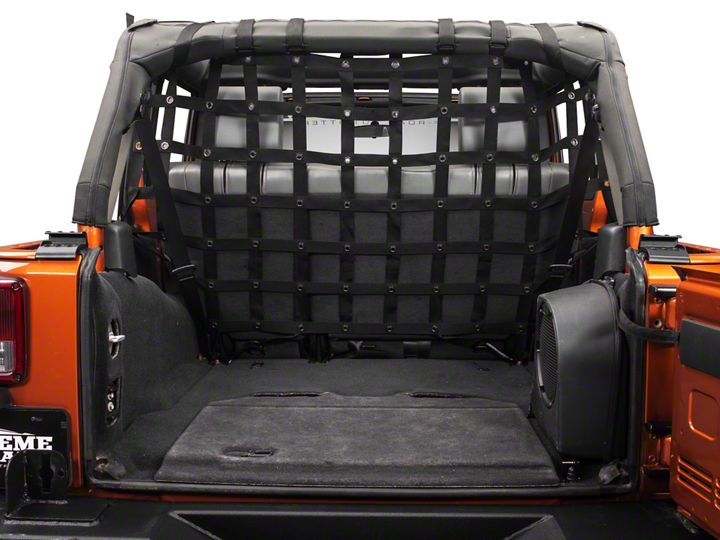

After
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 08/04/2018.
