Find Light Bars & Off-Road Lighting for your Tacoma

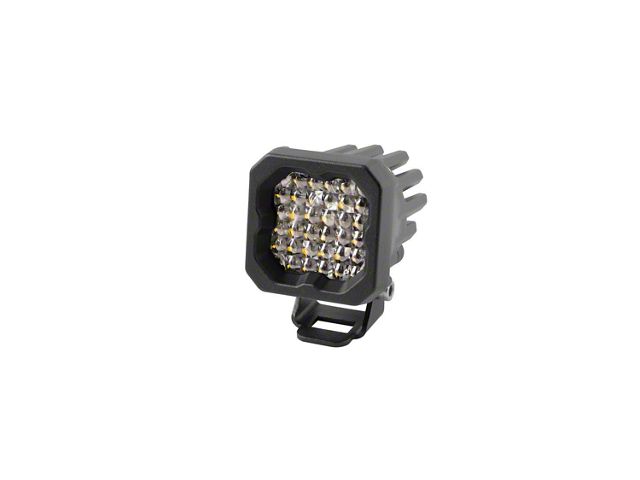

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)
Item TT30584
Our Price
$159.95
Military, Medical & First Responders
$8.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact, Single-LED Form Factor _x000D_
- Triple Function: High-Power White Main Beam, High-Power Red Main Beam, and Low-Power Red Accent Light _x000D_
- Pin-Fin Heatsink Design for Superior Thermal Dissipation _x000D_
- Integrated Deutsch-Style Connector _x000D_
- Designed, Torture-Tested, and Assembled in USA _x000D_
- Custom-Engineered TIR Optics to Direct Light Precisely and Efficiently _x000D_
- High-Intensity LED Chip Providing Enhanced Brightness _x000D_
- Flood Beam Pattern with an Even 50x50 Degree Spread Using Pillow Optics _x000D_
- Mount Anywhere with Standard or Flush-Mount Configurations or GoPro-Style Adapter _x000D_
- Interchangeable Lens for Changing Beam Pattern or Color _x000D_
- Wiring Includes 4-Pin Pigtail: Yellow for High-Power Red, Red for White Main Beam, Blue for Low-Power Red, and Black for Ground _x000D_
- Extensively Tested for Extreme Temperatures, Vibration, Moisture, and Corrosion to SAE Standards _x000D_
- Snap-On Covers Available for Protection and Customization _x000D_
- Raw Lumens: 1450 lm _x000D_
- Color Temperature: 6000K _x000D_
- Power: 15 Watts _x000D_
- Operating Voltage: 9-16V _x000D_
- Polarity Specific _x000D_
- Operating Temperature Range: -40°C to 85°C (-40°F to 185°F) _x000D_
- Constant Current Driver _x000D_
- Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Passive Cooling via Pin-Fin Heatsink _x000D_
- SAE J575 Durability Compliance _x000D_
- IP69K Waterproof Rating _x000D_
- Unit Weight: 0.175 lb; Product Weight: 0.325 lb; Shipped Weight: 0.4 lb _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
Advanced Lighting Solution. The Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood is a compact, versatile auxiliary light designed to provide multiple lighting functions including a high-power white beam, high-power red beam, and low-power red accent light. It is ideal for use as a backup light, brake light, or running light on a variety of vehicles such as cars, trucks, motorcycles, and UTVs, enhancing visibility and safety in demanding environments.
_x000D__x000D_Construction and Appearance. This LED pod features a durable polycarbonate lens housed within a robust aluminum casting, sealed with a rubber gasket to ensure moisture resistance. A pin-fin heatsink design provides passive cooling for reliable thermal management. The product is assembled and torture-tested in the USA, meeting SAE J575 durability standards, and finished in a matte texture that promotes both functionality and sleek appearance.
_x000D__x000D_Installation. Installation requires basic hand tools and typically takes 30 to 60 minutes. The compact size allows for flexible mounting options without the need for complex modifications or drilling in most applications.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, providing assurance of long-term quality and performance.
_x000D__x000D_Application. Fits universal applications with some adaptation required for specific vehicle mounts or configurations.
