Find Light Bars & Off-Road Lighting for your Tacoma

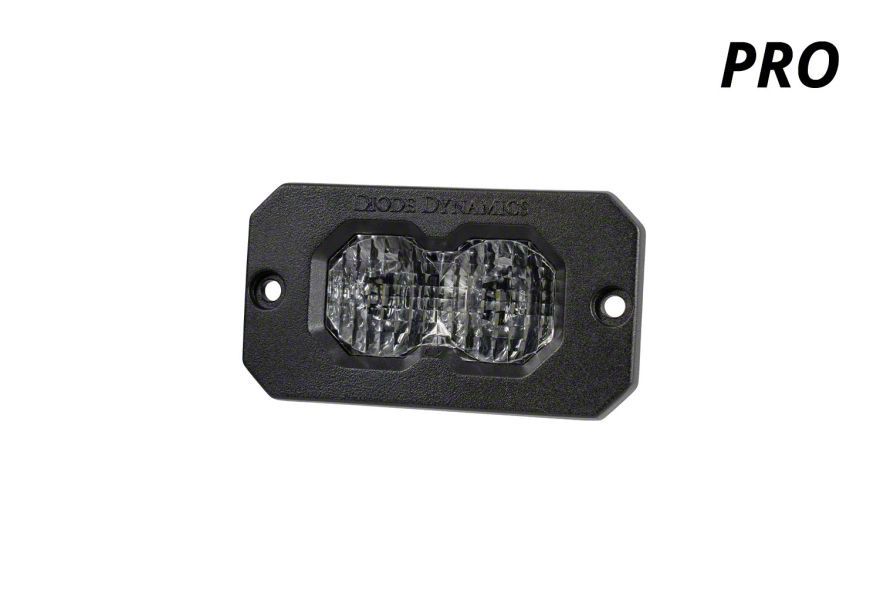

Diode Dynamics Stage Series C2 2.0 Pro Flush Mount LED Pod Light with Red Backlight; White Flood (Universal; Some Adaptation May Be Required)
Item TT77907
Our Price
$169.95
Military, Medical & First Responders
$8.50 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Includes One Stage Series C2 2.0 LED Pod _x000D_
- Includes One Deutsch-Style Wire Pigtail _x000D_
- Includes One Mounting Bracket and Hardware _x000D_
- Raw Lumens: 3,140 lm _x000D_
- Color Temperature (CCT): 6000K _x000D_
- Power Watts: Main Beam 23, Backlight 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current Amps at 12.8V: Main Beam 1.8, Backlight 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature Range: -40°C to 85°C (-40°F to 185°F) _x000D_
- LED Emitter: Osram Ostar Projection Compact _x000D_
- Connector: Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (inches): 2.5 x 4.5 x 2.4 _x000D_
- Unit Weight (pounds): 0.55 _x000D_
- Product Weight (pounds): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
High-Performance Lighting. The Diode Dynamics Stage Series C2 2.0 Pro Flush Mount LED Pod Light with Red Backlight and White Flood is an ultra-compact, powerful LED pod designed to deliver focused and efficient illumination for various automotive applications. Ideal for bumpers, cargo areas, trailers, and roof racks, it enhances visibility and safety while maintaining a sleek, low-profile appearance.
_x000D__x000D_Construction and Appearance. This LED pod features a durable powder-coated aluminum housing with a polycarbonate lens and rubber gasket, ensuring lasting protection and optimal light output. The finish is designed to dissipate heat efficiently, enhancing performance and reliability, while the red backlight adds a unique modern aesthetic and increased rear visibility.
_x000D__x000D_Installation. Installation requires basic tools and takes approximately 30-60 minutes. The mounting system is designed for flush, low-profile fitting on flat surfaces, although some adaptation may be necessary depending on mounting location.
_x000D__x000D_Warranty. This product comes with a limited lifetime warranty, ensuring long-term quality and customer support.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required.
Diode Dynamics DD8124S
