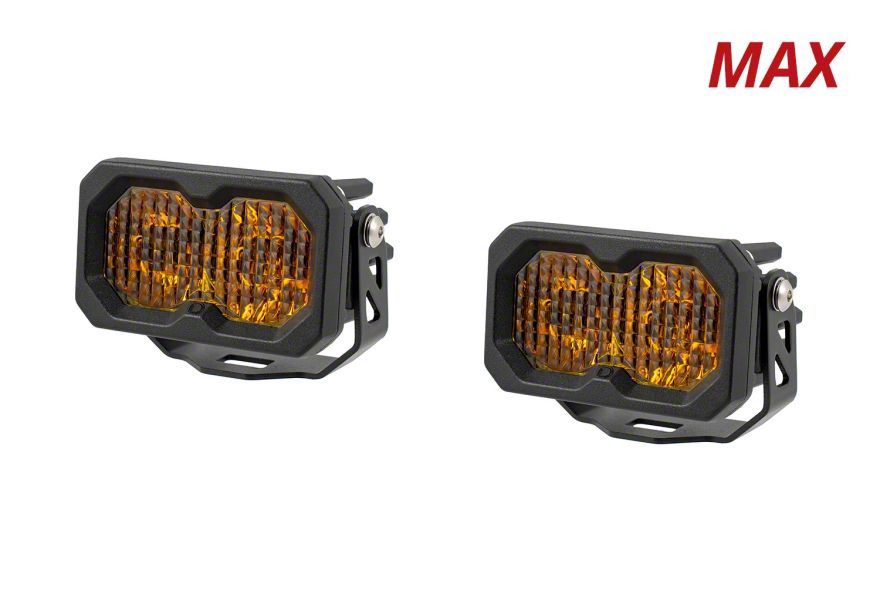

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Lights with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)
Item TT77896
Our Price
$479.95
Military, Medical & First Responders
$24.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Locations _x000D_
- Patented Total Internal Reflection Optics for Maximum Output _x000D_
- Up to 95% More Power Than Previous Generation _x000D_
- Available in Sport, Pro, and Max Power Levels _x000D_
- Customizable Mounting to Dial In Setup _x000D_
- Link Multiple Pods with CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Backlight Functionality with Low-Power Amber Accent Light _x000D_
- Three Mounting Points for Height and Angle Adjustment _x000D_
- Swappable Optics and Colors with Uniform LED Chips _x000D_
- Passive Cooling with Pin-Fin Heatsink and Powdercoated Aluminum Housing _x000D_
- High-Intensity Osram Boost HX LED Emitter _x000D_
- Waterproof Rating of IP69K and SAE J575 Durability Tested _x000D_
- Approximate Dimensions: 2 x 3.3 x 2.4 inches _x000D_
- Weight About 0.55 lbs per Unit _x000D_
- Power Consumption: 30 Watts Main Beam, 0.38 Watts Backlight _x000D_
- Operating Voltage Range: 9 to 30 Volts _x000D_
- Current Draw: 2.3 Amps at 12.8V for Main Beam _x000D_
- Polarity-Specific Connection _x000D_
- Connector Type: Deutsch DT Input _x000D_
- Operating Temperature Range: -40 to 85°C _x000D_
- Beam Patterns Include Spot, Flood, Combo/Driving, SAE Fog/Wide, and Driving _x000D_
- Raw Light Output Up to 3,960 Lumens _x000D_
- Color Temperature: 3000K Yellow _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Powerful Compact Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Lights with Amber Backlight and Yellow Spot deliver exceptional brightness in a compact design, ideal for tight mounting locations. These pods provide focused and efficient illumination for various automotive lighting applications, enhancing visibility and safety in challenging conditions.
_x000D__x000D_Durable Construction and Appearance. Featuring a powdercoated aluminum housing for improved heat dissipation, these LED pods include a polycarbonate lens and rubber gasket to provide durability and resistance to moisture and corrosion. The amber backlight offers a distinctive accent, fully illuminating the patented TIR optics with a professional, modern finish.
_x000D__x000D_Installation. Installation is straightforward, requiring only basic tools and typically no additional drilling. The pods come with adjustable mounting brackets to enable precise aiming and flexible mounting options to achieve the optimal lighting angle.
_x000D__x000D_Warranty. These LED pods are backed by a limited lifetime warranty ensuring long-term reliability and performance.
_x000D__x000D_Application. Designed as universal fit lighting solutions, these pods may require minor adaptation to fit specific vehicle configurations or mounting locations.
