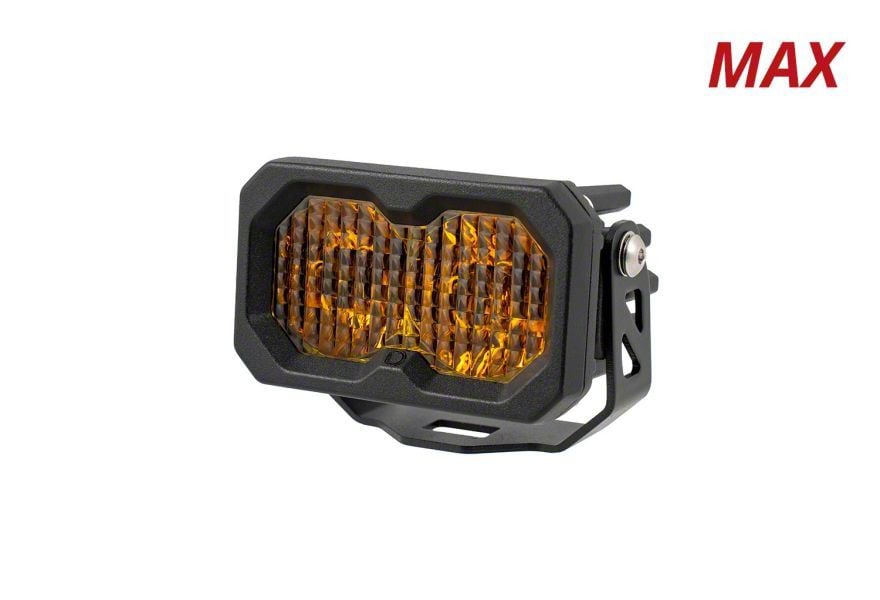

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)
Item TT77897
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Dial In Your Setup _x000D_
- Link Multiple Pods With CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Backlight Functionality Provides Unique And Modern Amber Accent Light _x000D_
- Output Color: 3000k Yellow _x000D_
- Power (Watts): Main Beam 30, Backlight 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8v): Main Beam 2.3, Backlight 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40°C To 85°C (-40°F To 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector: Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (In): 2 x 3.3 x 2.4 _x000D_
- Unit Weight (Lb): 0.55 _x000D_
- Product Weight (Lb): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
HIGH-POWER LED POD. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Spot delivers powerful, focused lighting in an ultra-compact design. It is ideal for off-road and auxiliary lighting where space is limited, providing a bright amber spot beam to enhance visibility and style. The amber backlight adds a distinctive accent, improving vehicle presence and safety.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Featuring a durable aluminum casting with a powder-coated finish for heat dissipation, this pod includes a clear polycarbonate lens protected by a robust rubber gasket. Internally, it utilizes premium Osram Boost HX LEDs mounted on a copper-core circuit board to maximize thermal performance and longevity. The amber backlight fully illuminates the patented TIR optic, creating a modern and unique appearance.
_x000D__x000D_INSTALLATION. Installation requires basic tools and generally takes 30 to 60 minutes. No drilling is typically needed thanks to modular mounting options and adjustable brackets for precise aiming.
_x000D__x000D_WARRANTY. This product includes a limited lifetime warranty against defects in materials and workmanship.
_x000D__x000D_APPLICATION. Fits universal applications; some adaptation may be required for specific mounting configurations.
Diode Dynamics DD8119S
