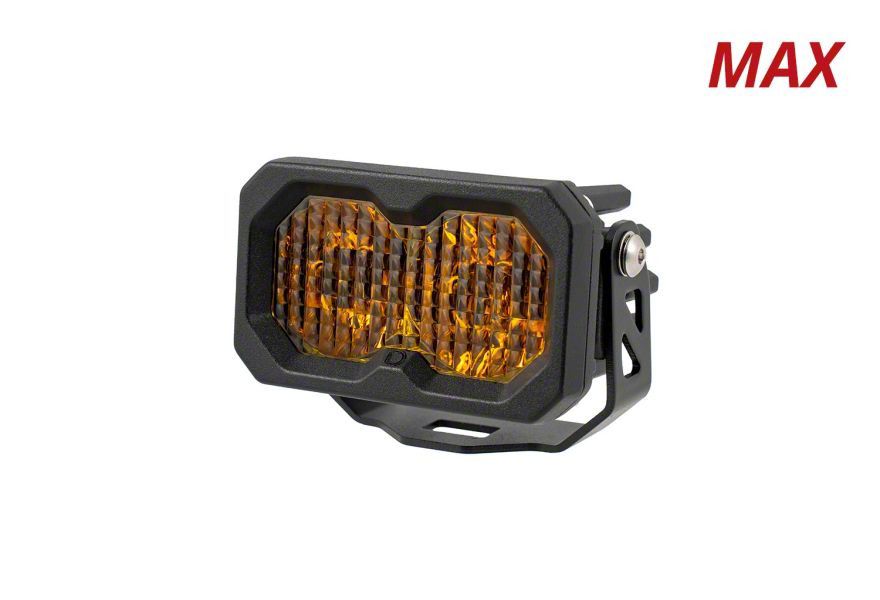

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Flood (Universal; Some Adaptation May Be Required)

Item TT77893
Product Image
Our Price

$239.95

Military, Medical & First Responders $12.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design For Tight Mounting Spots
        • _x000D_
      • Patented TIR Optics For Maximum Output and Reduced Glare
        • _x000D_
      • Up To 95% More Power Than C2 1.0
        • _x000D_
      • Available In Sport, Pro, And New 3900-Lumen Max Power Levels
        • _x000D_
      • Customizable Mounting To Dial In Your Setup
        • _x000D_
      • Link Multiple Pods With CrossLink Technology
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Made In USA With Global Materials
        • _x000D_
      • Raw Lumens: 3,960 Lm
        • _x000D_
      • Color Temp (CCT): 3000K
        • _x000D_
      • Power (Watts): Main Beam: 30, Backlight: 0.38
        • _x000D_
      • Operating Voltage: 9-30V
        • _x000D_
      • Current (Amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03
        • _x000D_
      • Polarity Specific
        • _x000D_
      • Operating Temperature: -40C To 85C (-40F To 185F)
        • _x000D_
      • LED Emitter: Osram Boost HX
        • _x000D_
      • Connector(s): Deutsch DT Input
        • _x000D_
      • Driver Features: Constant Current
        • _x000D_
      • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
        • _x000D_
      • Cooling: Passive, Pin-Fin Heatsink
        • _x000D_
      • Compliance Ratings: SAE J575 Durability Test
        • _x000D_
      • Intrusion Ratings: IP69K Waterproof, High Pressure
        • _x000D_
      • Product Dimensions (In): 2 X 3.3 X 2.4
        • _x000D_
      • Unit Weight (Lb): 0.55
        • _x000D_
      • Product Weight (Lb): 1.4
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Powered Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Flood provides exceptional brightness and compact size for versatile installation. Designed to deliver focused illumination in tight mounting locations, it enhances visibility with its advanced TIR optics and powerful output.

      _x000D_

      Construction and Appearance. Built with a durable aluminum casting and polycarbonate lens, this LED pod features a robust powder-coated finish for corrosion resistance. The modern design integrates an amber backlight that accents the optic with a unique, low-power glow, combining function with style.

      _x000D_

      Installation. Installation requires basic tools and typically takes 30 to 60 minutes. The pod mounts using a customizable bracket allowing fine adjustment; drilling may be necessary depending on mounting location.

      _x000D_

      Warranty. This product carries a limited lifetime warranty, ensuring long-term reliability and customer satisfaction.

      _x000D_

      Application. Fits universal applications; some adaptation may be required depending on the specific installation scenario.

      Diode Dynamics DD8117S

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      No questions about this product yet. Ask the First Question
