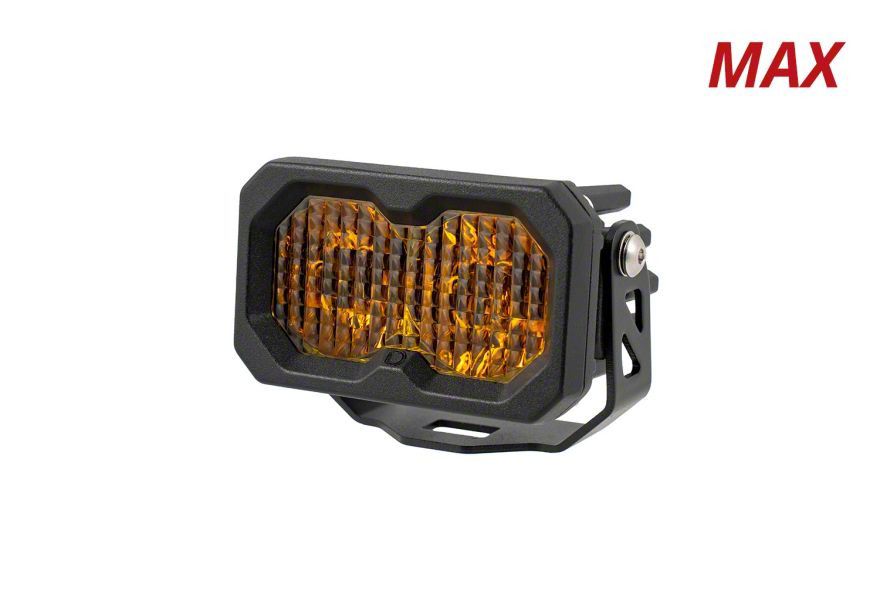

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Combo/Driving (Universal; Some Adaptation May Be Required)
Item TT77887
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting to Dial In Your Setup _x000D_
- Link Multiple Pods with CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Raw Output of 3,960 Lumens _x000D_
- Color Temperature of 3000K _x000D_
- Power Consumption: 30 Watts Main Beam, 0.38 Watts Backlight _x000D_
- Operating Voltage Range of 9-30V _x000D_
- Current Draw: 2.3 Amps Main Beam, 0.03 Amps Backlight at 12.8V _x000D_
- Polarity Specific _x000D_
- Operating Temperature from -40°C to 85°C (-40°F to 185°F) _x000D_
- Osram Boost HX LED Emitters _x000D_
- Deutsch DT Input Connector _x000D_
- Constant Current Driver _x000D_
- Polycarbonate Lens, Aluminum Casting, Rubber Gasket Materials _x000D_
- Passive Cooling with Pin-Fin Heatsink _x000D_
- SAE J575 Durability Test Compliance _x000D_
- IP69K Waterproof and High Pressure Intrusion Rated _x000D_
- Product Dimensions: 2 x 3.3 x 2.4 Inches _x000D_
- Unit Weight: 0.55 Pounds, Product Weight: 1.4 Pounds _x000D_
- Includes One Stage Series C2 2.0 LED Pod, Deutsch-Style Wire Pigtail, Mounting Bracket and Hardware _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Combo/Driving is a compact yet powerful lighting solution engineered to deliver exceptional illumination in tight mounting locations. Designed for off-road and auxiliary use, it enhances visibility and safety with precisely engineered optics and superior light output.
_x000D_Construction and Appearance. This LED pod features a robust powder-coated aluminum housing optimized for heat dissipation and durability. It includes a polycarbonate lens sealed with a rubber gasket to provide IP69K waterproof protection. The amber backlight serves as a distinctive low-power accent, illuminating the TIR optic for a modern and functional aesthetic.
_x000D_Installation. Installation requires basic hand tools and is moderately straightforward, typically taking 30 to 60 minutes. No drilling is generally necessary unless specific mounting locations require custom adaptation.
_x000D_Warranty. This product is backed by a limited lifetime warranty, ensuring lasting reliability and quality assurance.
_x000D_Application. Fits universal applications with some adaptation needed for optimal fit and installation. Suitable for multiple mounting points including roof racks, roll bars, bumpers, and A-pillars.
Diode Dynamics DD8114S
