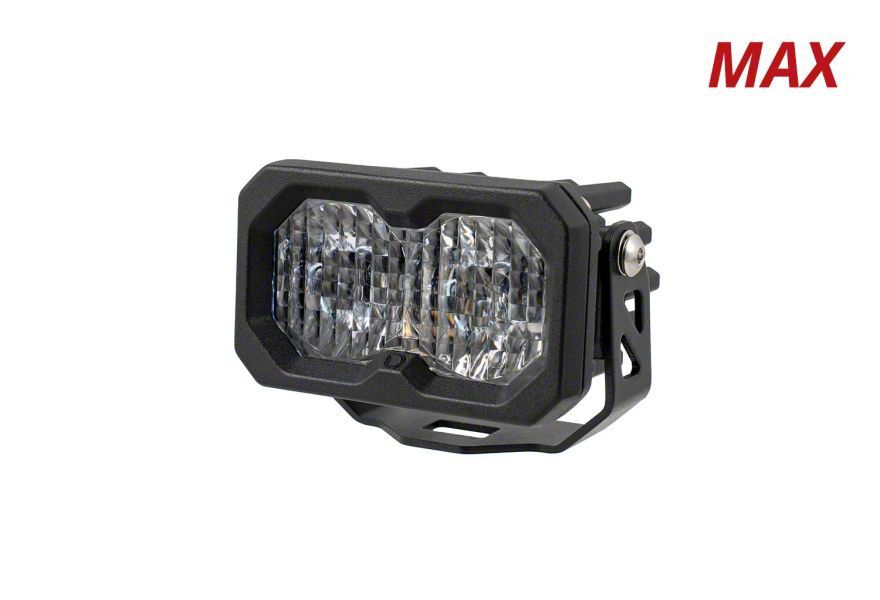

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White SAE Fog/Wide (Universal; Some Adaptation May Be Required)
Item TT77923
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting to Dial In Your Setup _x000D_
- Link Multiple Pods with CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Raw Lumens of 3,960 _x000D_
- Color Temperature of 6000K _x000D_
- Power Consumption of 30 Watts Main Beam and 0.38 Watts Backlight _x000D_
- Operating Voltage Range of 9-30V _x000D_
- Current Draw of 2.3 Amps Main Beam and 0.03 Amps Backlight at 12.8V _x000D_
- Polarity Specific Connection _x000D_
- Operating Temperature Range from -40°C to 85°C (-40°F to 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector Type: Deutsch DT Input _x000D_
- Driver Features Constant Current Regulation _x000D_
- Materials Include Polycarbonate Lens, Aluminum Casting, and Rubber Gasket _x000D_
- Cooling Provided by Passive Pin-Fin Heatsink _x000D_
- Compliance with SAE J575 Durability Test _x000D_
- Waterproof Rating of IP69K, Resistant to High Pressure _x000D_
- Product Dimensions Approximately 2 x 3.3 x 2.4 Inches _x000D_
- Unit Weight About 0.55 Pound _x000D_
- Product Weight Approximately 1.4 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Advanced LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White SAE Fog/Wide is engineered to deliver exceptional illumination performance in a compact form factor. Designed for mounting on roof racks, bumpers, or A-pillars, it provides powerful lighting with up to 3,960 lumens to improve visibility and enhance safety under diverse driving conditions.
_x000D__x000D_Construction and Appearance. This LED pod features a durable aluminum housing with a powder-coated finish for corrosion resistance and longevity. The polycarbonate lens and rubber gasket ensure waterproof protection to IP69K standards, while the copper-core circuit board enhances thermal management for optimal performance. The amber backlight adds a unique visual accent with a modern style.
_x000D__x000D_Installation. Installation generally takes 30 to 60 minutes using a basic toolset. The unit offers customizable mounting with versatile bracket adjustment. Drilling requirements depend on the specific mounting location and vehicle setup.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, guaranteeing long-term reliability and support.
_x000D__x000D_Application. Designed for universal application, this LED pod may require some adaptation for specific installations or vehicle configurations.
