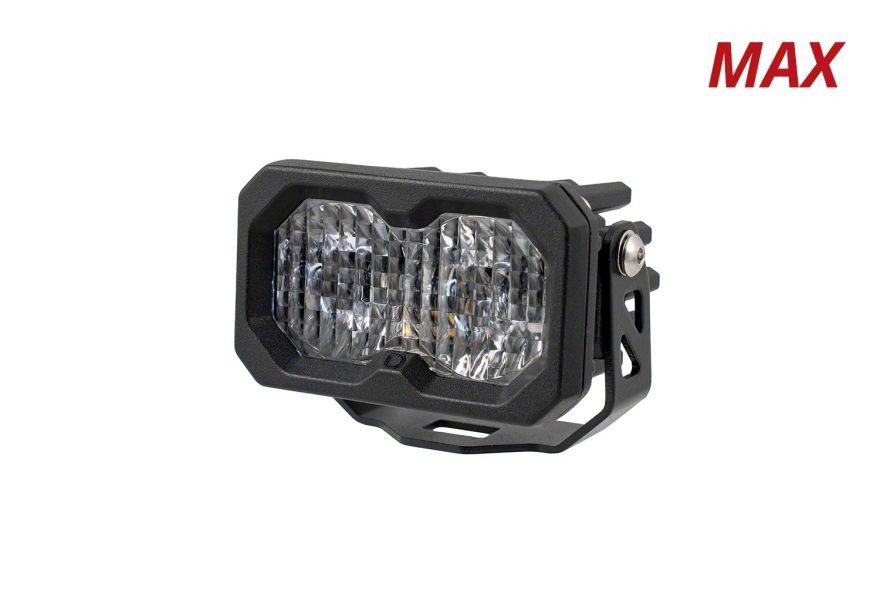

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White SAE Driving (Universal; Some Adaptation May Be Required)
Item TT77927
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output And Efficiency _x000D_
- Up To 95% More Power Than C2 1.0 Model _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Perfectly Dial In Your Setup _x000D_
- Link Multiple Pods With CrossLink Technology For Expanded Lighting _x000D_
- Limited Lifetime Warranty For Long-Term Reliability _x000D_
- Made In USA Using Global Materials _x000D_
- Raw Lumens: 3,960 lm _x000D_
- Color Temperature: 6000K (Cool White) _x000D_
- Power Consumption: Main Beam 30 Watts, Backlight 0.38 Watts _x000D_
- Operating Voltage Range: 9-30V _x000D_
- Current Draw: Main Beam 2.3A @ 12.8V, Backlight 0.03A _x000D_
- Polarity Specific Design _x000D_
- Operating Temperature: -40°F To 185°F (-40°C To 85°C) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector: Deutsch DT Input _x000D_
- Driver Features: Constant Current For Consistent Output _x000D_
- Lens Material: Durable Polycarbonate _x000D_
- Housing Material: Robust Aluminum Casting _x000D_
- Sealing: Rubber Gasket For Water Tightness _x000D_
- Cooling System: Passive Pin-Fin Heatsink For Optimal Thermal Management _x000D_
- Compliance Standards: SAE J575 Durability Test Passed _x000D_
- Ingress Protection Rating: IP69K Waterproof And High Pressure Resistant _x000D_
- Product Dimensions: 2 x 3.3 x 2.4 Inches _x000D_
- Unit Weight: 0.55 Pounds _x000D_
- Product Weight: 1.4 Pounds _x000D_
- Includes One Stage Series C2 2.0 LED Pod, One Deutsch-Style Wire Pigtail, One Mounting Bracket And Hardware _x000D_
- Universal Fitment; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
High Performance Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and White SAE Driving provides outstanding illumination by combining a compact size with exceptional brightness. It is designed to deliver focused lighting across a variety of automotive applications, enhancing visibility and safety both on-road and off-road.
_x000D__x000D_Durable Construction and Appearance. Built with a powder-coated aluminum housing and a polycarbonate lens, this LED pod offers superior heat dissipation and durability. It includes a rubber gasket seal and a passive pin-fin heatsink cooling system, engineered to withstand harsh environments while maintaining a sleek, professional finish.
_x000D__x000D_Installation. Installation requires basic tools and typically takes 30 to 60 minutes. The design allows flexible mounting options and generally does not require drilling, depending on your vehicle's configuration.
_x000D__x000D_Warranty. This LED pod is backed by a limited lifetime warranty, ensuring long-term reliability and customer satisfaction.
_x000D__x000D_Application. It features universal fitment with some adaptation possibly needed to suit various mounting locations and configurations.
Diode Dynamics DD8242S
