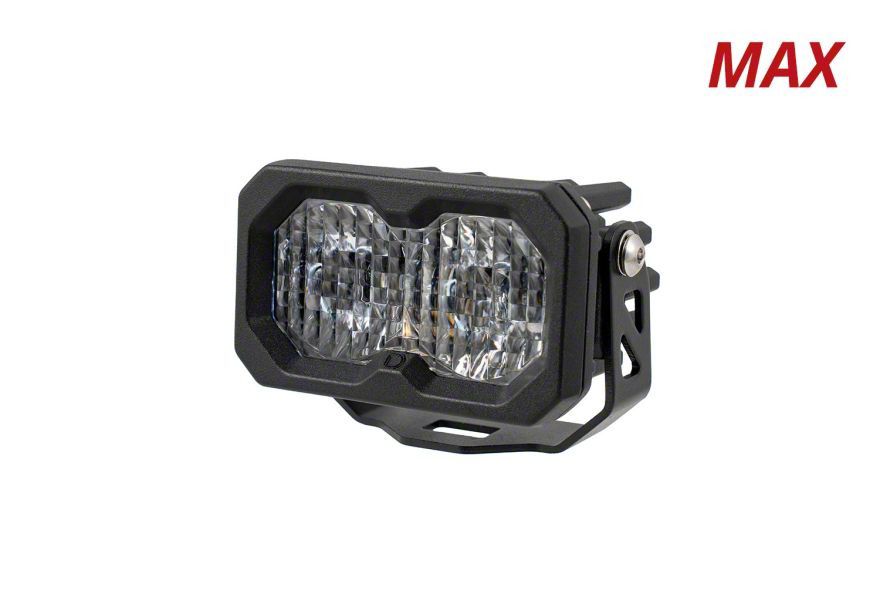

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White Flood (Universal; Some Adaptation May Be Required)
Item TT77889
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output and Reduced Glare _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting to Dial In Your Setup _x000D_
- Link Multiple Pods with CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Backlight Feature Provides Low-Power Accent Lighting _x000D_
- Red or Amber Backlight Options Available _x000D_
- Focus-Optimized Beam Patterns Include Combo/Driving, SAE Driving, SAE Fog/Wide, Flood, and Spot _x000D_
- Operating Voltage 9-30V; Power Consumption Main Beam 30 Watts, Backlight 0.38 Watts _x000D_
- Osram HX Boost LED Emitters for High-Intensity Illumination _x000D_
- Polycarbonate Lens and Aluminum Casting with Powder-Coated Finish _x000D_
- Passive Cooling with Pin-Fin Heatsink _x000D_
- IP69K Waterproof Rating, SAE J575 Durability Tested _x000D_
- Deutsch DT Connector Input for Wiring Convenience _x000D_
- Dimensions 2 x 3.3 x 2.4 Inches; Unit Weight 0.55 Pounds _x000D_
- Compatible with Various Mounting Points and Adjustable Brackets _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Advanced LED Illumination. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and White Flood delivers powerful and precise lighting in a compact 2-inch form factor. Designed for automotive applications, it enhances visibility and safety by providing intense flood-pattern illumination with the unique aesthetic of an amber backlight accent. Its versatile mounting options make it ideal for tight and custom installation locations.
_x000D__x000D_Construction and Appearance. Crafted from durable aluminum with a powder-coated finish, the pod features a robust polycarbonate lens for clear light transmission and protection. The internal components utilize a copper-core circuit board for excellent thermal management and employ high-quality Osram HX Boost LEDs. Its design incorporates a pin-fin heatsink for passive cooling and is sealed to meet IP69K waterproof standards, ensuring long-lasting performance under harsh conditions.
_x000D__x000D_Installation. Installation requires basic tools and typically takes between 30 to 60 minutes. The modular mounting system allows for angle and height adjustments without the need for complex modifications or drilling in many cases.
_x000D__x000D_Warranty. This product comes with a limited lifetime warranty, providing confidence in its durability and performance.
_x000D__x000D_Application. Fits universal; some adaptation may be required.
