Find Light Bars & Off-Road Lighting for your Tacoma

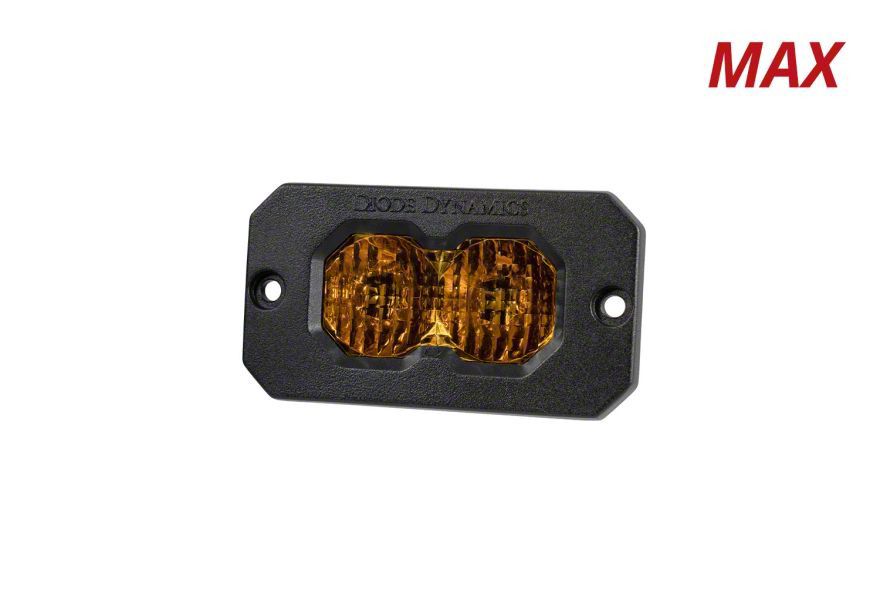

Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Light with Amber Backlight; Yellow Flood (Universal; Some Adaptation May Be Required)
Item TT77917
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output and Reduced Glare _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Distinctive Amber Backlight for Low-Power Accent Lighting _x000D_
- Swappable Optics and Colors with Matching High-Output LED Chips _x000D_
- Enhanced Thermal Efficiency with Copper-Core Circuit Board Bonded to LED Chips _x000D_
- Redesigned Powdercoated Aluminum Housing for Improved Heat Dissipation _x000D_
- Available Beam Patterns: Combo/Driving and Flood _x000D_
- Combo/Driving Pattern Features Advanced Pillow Optics and Rectangular 55x20 Degree Beam _x000D_
- Flood Pattern Provides Uniform Illumination with 70x45 Degree Spread Using Pillow Optics _x000D_
- Raw Output Power Up to 3,960 Lumens _x000D_
- Operating Voltage Range from 9 to 30 Volts _x000D_
- Operating Temperature Range from -40°C to 85°C (-40°F to 185°F) _x000D_
- IP69K Waterproof with High-Pressure Intrusion Resistance _x000D_
- Polycarbonate Lens, Aluminum Casting, and Rubber Gasket Construction _x000D_
- Passive Cooling with Pin-Fin Heatsink _x000D_
- Deutsch DT Input Connector _x000D_
- Constant Current Driver _x000D_
- Product Dimensions: 2.5 x 4.5 x 2.4 Inches _x000D_
- Unit Weight 0.55 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
HIGH-PERFORMANCE LED POD. The Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Light with Amber Backlight; Yellow Flood delivers powerful, focused illumination ideal for off-road, work, or auxiliary vehicle lighting. Its compact and sleek design allows mounting on flat surfaces such as bumpers, roof racks, or trailers, providing enhanced visibility and safety in low-light or adverse conditions.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Built with a durable powdercoated aluminum housing and a polycarbonate lens, this LED pod combines robust materials with advanced copper-core circuit board technology to maximize thermal management and ensure longevity. The amber backlight illuminates the TIR optic imparting a distinctive, modern look while maintaining ruggedness designed to withstand harsh environments with an IP69K waterproof rating.
_x000D__x000D_INSTALLATION. Installation requires basic tools and takes approximately 30 to 60 minutes. No extensive modifications or drilling are generally needed, thanks to the included flush-mounting bracket designed for easy, low-profile attachment on flat surfaces.
_x000D__x000D_WARRANTY. This product is backed by a limited lifetime warranty, ensuring long-term reliability and support.
_x000D__x000D_APPLICATION. Fits Universal; Some Adaptation May Be Required.
Diode Dynamics DD8129S
