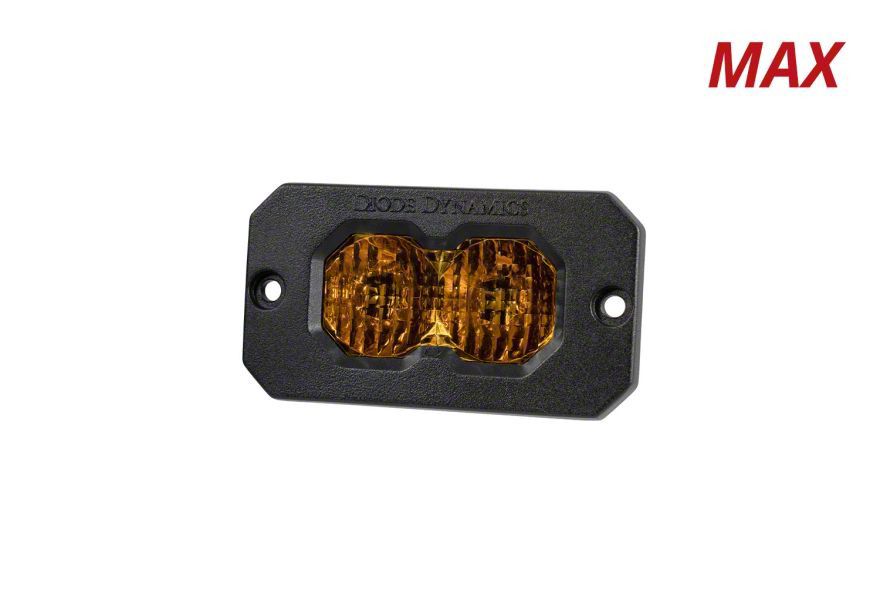

Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Light with Amber Backlight; Yellow Combo/Driving (Universal; Some Adaptation May Be Required)
Item TT77921
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Distinctive Amber Backlight Serving As A Low-Power Accent Light _x000D_
- Includes One Stage Series C2 2.0 LED Pod, One Deutsch-Style Wire Pigtail, One Mounting Bracket And Hardware _x000D_
- Operating Voltage Ranges From 9-30V _x000D_
- Peak Beam Intensity Up To 16,500 Candela _x000D_
- Raw Output Up To 3,960 Lumens _x000D_
- Operating Temperature From -40C To 85C (-40F To 185F) _x000D_
- Polycarbonate Lens With Aluminum Casting And Rubber Gasket _x000D_
- Passive Cooling With Pin-Fin Heatsink _x000D_
- SAE J575 Durability Test Compliance _x000D_
- IP69K Waterproof And High Pressure Intrusion Rating _x000D_
- Uses Osram Boost HX LED Emitters _x000D_
- Polarity Specific Deutsch DT Connector _x000D_
- Dimensions Are 2.5 X 4.5 X 2.4 Inches With A Unit Weight Of 0.55 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
HIGH-PERFORMANCE LED POD. The Diode Dynamics Stage Series C2 2.0 Max Flush Mount LED Pod Light with Amber Backlight; Yellow Combo/Driving delivers powerful illumination designed for diverse off-road and auxiliary lighting applications. Its ultra-compact design fits into tight mounting spaces, making it ideal for bumpers, cargo areas, trailers, and roof racks, while providing focused, intense lighting with precise beam control.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. This LED pod features a durable powder-coated aluminum housing combined with a polycarbonate lens for strength and impact resistance. A rubber gasket ensures a waterproof seal rated at IP69K, and the passive pin-fin heatsink maximizes thermal dissipation. The amber backlight accent illuminates the patented TIR optics, offering a modern, distinctive look with reliable performance under extreme temperatures and conditions.
_x000D__x000D_INSTALLATION. Installation requires basic tools and typically takes 30 to 60 minutes. The flush mount kit allows for a clean, low-profile fit on any flat surface and generally does not require drilling if suitable factory mounting locations are available.
_x000D__x000D_WARRANTY. This product includes a limited lifetime warranty that covers defects in material and workmanship for the original purchaser.
_x000D__x000D_APPLICATION. Fits universal applications; some adaptation may be required depending on mounting location and vehicle configuration.
