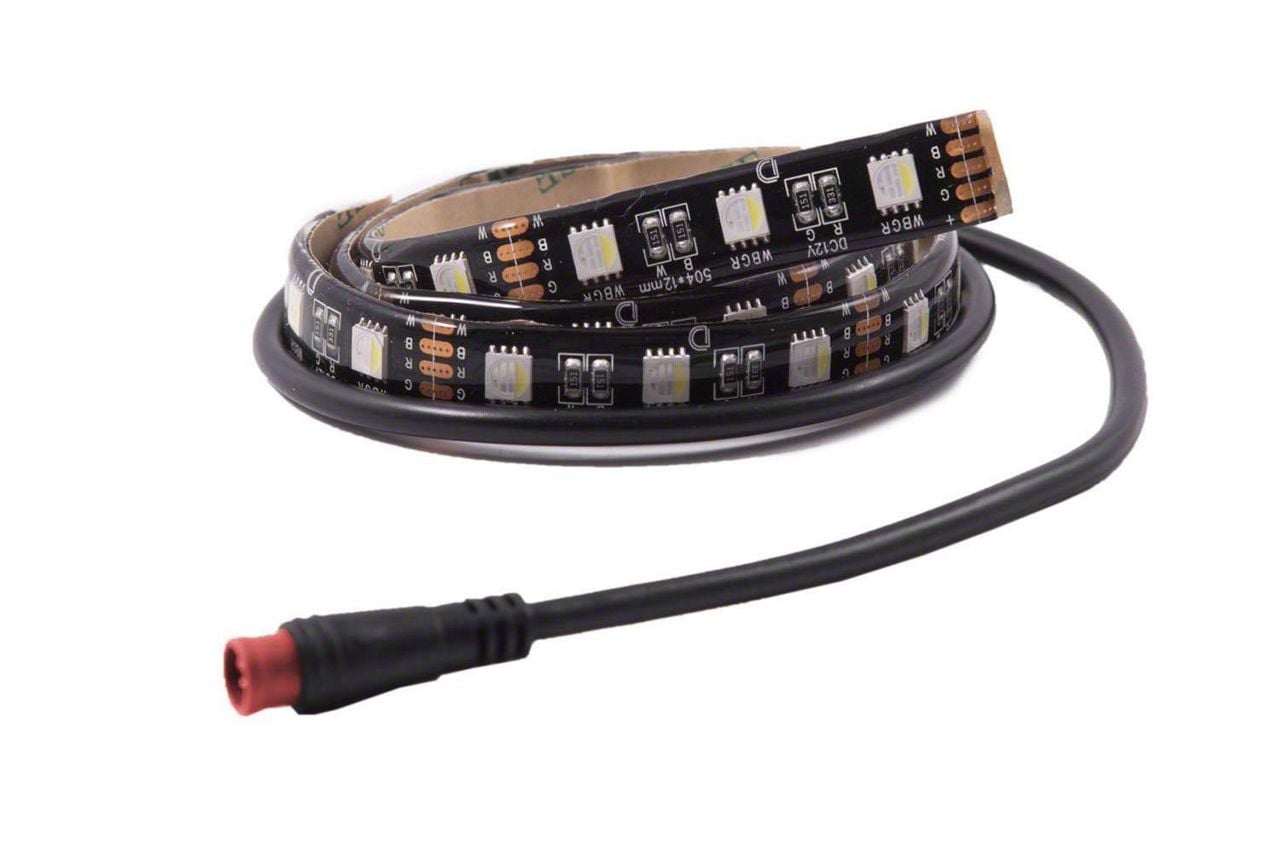

Diode Dynamics LED Footwell Kit; RGBW; Set of Four (Universal; Some Adaptation May Be Required)
Item FB28255
Our Price
$99.95 kit
Military, Medical & First Responders
$5.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Adds RGBW Color-Changing Ability To Your Footwell Area _x000D_
- Highly Flexible, Waterproof LED Strips With IP67 Rating _x000D_
- High-Density LEDs For Brighter Output With 310 Lumens Per Strip _x000D_
- Barrel-Style M8 Connectors For Secure Connection _x000D_
- RGBW Features An Extra Integrated White LED Chip Next To Standard Red, Green, And Blue LEDs _x000D_
- White Chip Can Be Activated And Controlled Independently For Pure And Bright White Color _x000D_
- Bluetooth Controller Allows Color Choice Including True White From Your Phone _x000D_
- Mobile App Includes Strobe, Fade Effects, Preset Colors, Camera Match, Music Sync, And Brightness Adjustment _x000D_
- LED Strips Are Cuttable Every 3 LEDs And Include 3M Adhesive Backing; Cutting Strips Requires Manual Soldering To Retain Waterproofing _x000D_
- Kit Includes Strips For Front Footwell On Driver And Passenger Sides (2-piece) Or Front And Rear (4-piece) _x000D_
- Compatible With Any 12V Power Source When Installing _x000D_
- Includes Wiring Harness, Toggle Switch, DC Adapter, Zip Ties, Quick Splices, And Adhesive Pads _x000D_
- An RGBW Controller Is Required For Operation And Sold Separately _x000D_
- Power Consumption Is 3.5 Watts Per Strip _x000D_
- Operating Voltage Range Is 9-16V With Current 0.285 Amps At 13.2V _x000D_
- Operating Temperature Range From -40°C To 85°C (-40°F To 185°F) _x000D_
- Installation Time Approximately 1-2 Hours With Minor Vehicle Modification _x000D_
- Tools Needed Include Non-Marring Trim Tool _x000D_
- Three-Year Limited Replacement Warranty Included _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Accent Light Type | Footwell Lights |
Description
_x000D__x000D_
Multicolor Footwell Lighting. The Diode Dynamics LED Footwell Kit; RGBW; Set of Four enhances the interior ambiance of any vehicle by adding customizable RGBW lighting to the footwell area. These strips deliver vibrant color options as well as a distinct pure white light, enabling users to personalize their ride with dynamic illumination controlled via a Bluetooth-enabled mobile app. Ideal for automotive enthusiasts seeking both style and functionality.
_x000D__x000D_Construction and Appearance. Constructed with high-density, flexible SMD30 LED strips encapsulated to a weatherproof IP67 rating, these strips feature integrated RGB and white LEDs in a durable, flexible housing. The kit uses secure barrel-style M8 connectors and finishes with high-quality 3M adhesive backing for reliable mounting and long-lasting performance.
_x000D__x000D_Installation. Installation is straightforward, requiring minor modifications and typically takes 1 to 2 hours. No drilling is necessary, and a non-marring trim tool is recommended to facilitate installation without damaging vehicle interior components.
_x000D__x000D_Warranty. This product is backed by a 3-year limited replacement warranty providing peace of mind and assurance of quality.
_x000D__x000D_Application. Designed as a universal fit, this lighting kit requires some adaptation for installation in various vehicles, with no specific exclusions. Larger vehicles may need additional M8 extension wires to complete the setup.
Diode Dynamics DD0443
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (4) Footwell LED Strips
