How to Install Delta Halogen 7 in. Headlight Kit (07-18 Wrangler JK) on your Jeep Wrangler

Installation Time

30 minutes

Tools Required
  • Box Cutter/Knife
  • Torx 15 Bit
Extreme Terrain
Shop Parts in this Guide

1. Open the hood and pop up the tabs holding the grille in place (Figure A).


Figure A

2. With the tabs removed, pull the grille back and out of the way (Figure B).


Figure B

3. Using a Torx 15 bit, remove the four screws from the headlight halo (Figure C).


Figure C

4. Remove the headlight and the halo from its housing (Figure D). Disconnect the headlight from the wiring harness.


Figure D

5. Place the Delta Halogen headlight in its place, connecting the harness to the wiring harness (Figure E).


Figure E

6. Reinstall the four screws removed in Step 3 over the new headlight and halo (Figure F).


Figure F

7. Set the tabs back into place on the grille (Figure G).


Figure G

8. Once all tabs are in place, press them in to secure the grille back into place (Figure H).


Figure H

Before

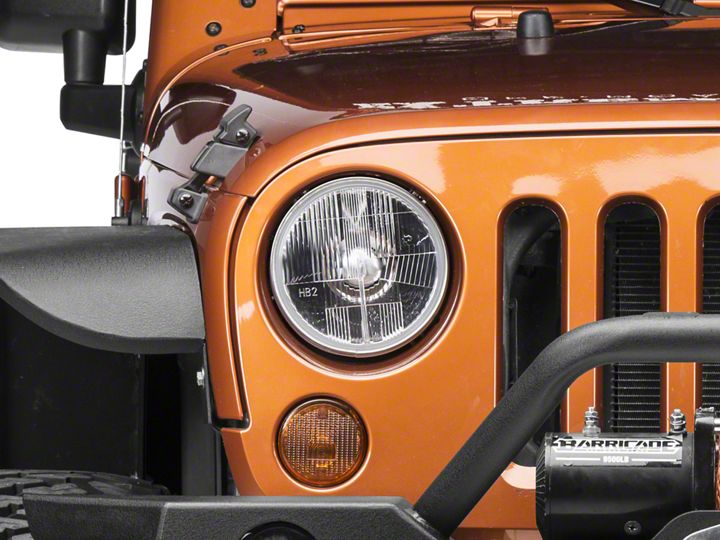

After

Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 06/28/2018
