How to Install Crown Automotive Mirror Relocation Bracket Set - Black (03-06 Wrangler TJ) on your Jeep Wrangler

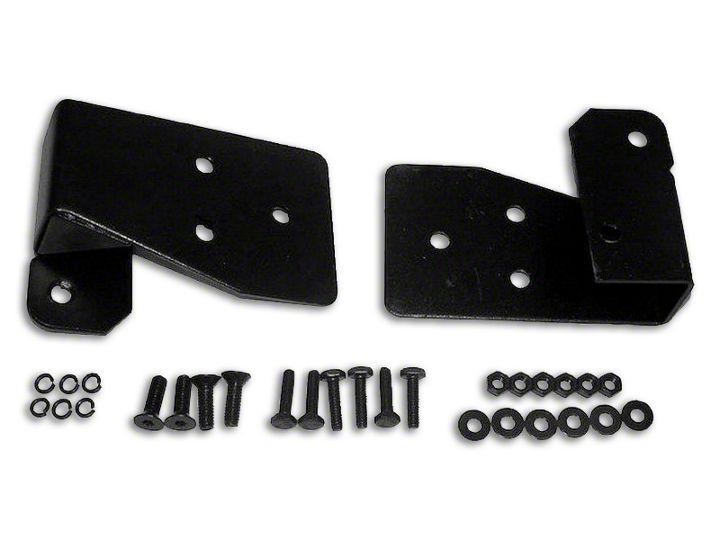

Kit Contents:
- Mirror Relocation Brackets (Qty: 2)
- Lock Washers (Qty: 6)
- Countersunk Machine Screws (Qty: 4)
- Flat Washers (Qty: 6)
- Hex Head Machine Screws (Qty: 6)
- Nuts (Qty: 6)

1. Ensure that all components in kit are accounted for.

2. Remove the mirrors from the doors using a T27 Torx bit.

3. Remove the two side bolts from the lower windshield hinge using a T40 Torx bit.

4. Attach the Mirror Relocation Bracket to the windshield hinge using the Countersunk Machine Screws. Tighten using a 3/16” hex key. The Mirror Relocation Bracket should be oriented forward once installed. (See Image)

5. Align the holes in the mirror with the holes in the Mirror Relocation Bracket. Insert the Hex Head Machine Screws through each hole and secure using a Flat Washer, Lock Washer, and a Nut in that order. Tighten the Nut using an 11mm wrench. Repeat for the other side.
