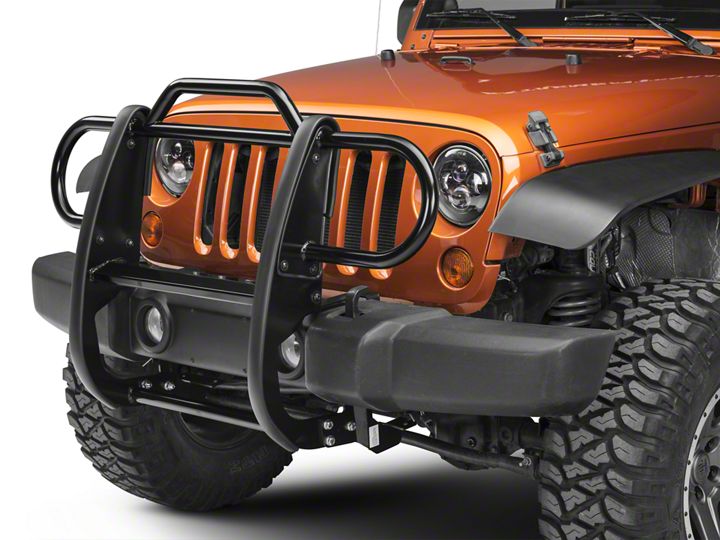

How to Install Black Horse Off Road Grille Guard - Black (07-17 Wrangler JK) on your Jeep Wrangler

Shop Parts in this Guide

PROCEDURE:

1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. CUTTING IS REQUIRED. ASSISTANCE IS RECOMMENDED.

2. Starting under the front bumper of the vehicle, remove the plastic top fill plate between the bumper and the radiator. Also remove the lower factory splash guard. Place both on a clean, stable work surface.

3. Select the passenger side Frame Mounting Bracket. Bolt the Frame Mounting Bracket to the bottom of the crossmember with (1) 12mm x 30mm Hex Bolt, (2) 12mm Flat Washers and (1) 12mm Nylon Lock Nut. NOTE: 07-09 models will use the outer mounting location (Figure 1A), and 2010-12 models will use the inner mounting location, (Figure 1B). Insert (1) 12mm x 30mm Hex Bolt, (2) 12mm Flat Washers and (1) 12mm Nylon Lock Nut through the upper tab on the side of the Mounting Bracket upright and tighten hardware at this time, (Figure 2). Repeat this step to install the driver side Frame Bracket, (Figure 1C).

4. Next, place the top fill plate back in position and mark a slot on the underside straight up from the frame upright, (the top brackets slide into the frame upright-see Figure 5). Cut (2) slots to clear the Top Brackets, (Figure 3). NOTE: Only cut a slot large enough to clear the Top Mounting Brackets. IMPORTANT! Do not cut completely through front or rear edge of the fill panel. Reinstall the fill panel with the factory hardware.

5. Next, slide the driver side Top Bracket down through the slot in the fill panel and into the frame upright, (Figure 4). Select (1) 8mm Rod Bolt. Insert the Rod Bolt into the opening at the base of the frame upright. Feed the Rod Bolt through the hole in the Top Bracket and out the frame upright above the tab on the Frame Bracket, (Figure 5). Secure the Rod Bolt to the Top Mounting Bracket with the included (1) 8mm Flat Washer and (1) 8mm Nylon Lock Nut, (Figure 6). Do not tighten hardware at this time. NOTE: On 2012 vehicles, move the factory valve out of the way to access the 8mm hardware on the driver side of the vehicle only. It is not necessary to remove of disconnect the valve, (Figures 4, 6, 9).

6. Repeat Step 5 for the passenger side Top Mounting Bracket installation.

7. Hold the plastic lower splash guard up in its original position. Mark the location of the Mounting Brackets onto the inside of the splash guard, (Figure 7). Cut out the sections to clear the Mounting Brackets. Check for clearance, trim as required and reinstall using the factory hardware. IMPORTANT: To maintain strength, remove as little material from the plastic splash guard as possible. Do not cut completely through the front or rear edge of the splash guard.

8. With assistance, lift the Grille Guard up to the inside of the Frame Mounting Brackets. Line up the holes in the Frame Mounting Brackets with the holes in the Grille Guard. Insert (6) 12-1.75mm x 30mm Hex Bolts, (12) 12mm Flat Washers and (6)12mm Nylon Lock Nuts, (Figure 8). Push the grille guard back into an upright position. Secure the Top Brackets to the grille guard with the included (2) 10mm x 30mm Button Head Allen Bolts, (4) 10mm Flat Washers and (2) 10mm Nylon Lock Nuts, (Figure 9). Adjust the Brackets as necessary then snug but do not tighten all of the hardware.

9. Stand back from the vehicle and check to see that the Grille Guard is centered and level on the vehicle and adjust as required. It may be necessary to slightly loosen the Frame mounting brackets to properly align the Grille Guard. IMPORTANT: Once properly aligned, tighten all of the hardware.

10. Do periodic inspections of the installation to make sure that all hardware is secure and tight.

To protect your investment, wax this product after installing. Regular waxing is recommended to add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives that could damage the finish.  For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish. Mild soap may be used also to clean the Grille Guard.

For gloss black finishes: Mild soap may be used to clean the Grille Guard.
