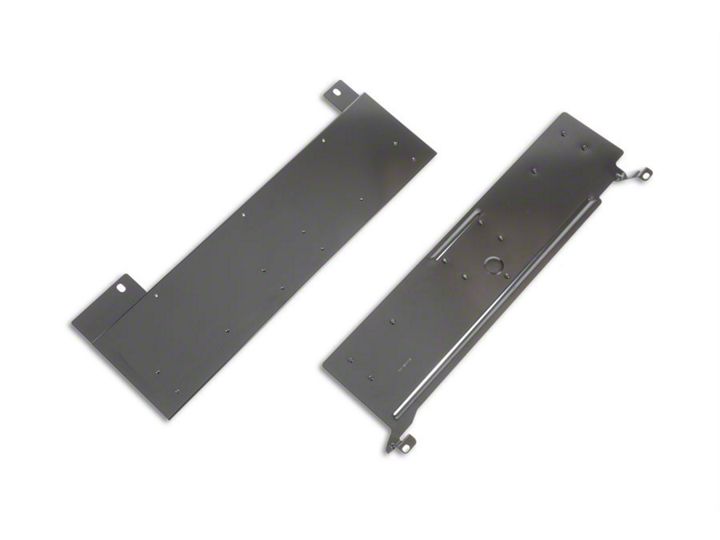

How to Install Black Forest Gear Cargo Base Plate (11-18 Wrangler JK 2 Door) on your Jeep Wrangler
Installation Time
1 hours
Tools Required
- Box Cutter/Knife
- Torx 30 Bit
- 10mm Socket
- Socket Wrench
Installation Instructions
1. Carefully open the package using a box cutter or knife (Figure A) and ensure the hardware is included and undamaged.
2. Remove the backseat (Figure B).
3. Install the supplied M6x25mm leveling feet on the bottom of the forward-most base plate (Figure C).
4. Install the supplied M6x12mm leveling feet on the bottom of the rear-most base plate (Figure D).
5. Mount the forward-most base plate at the rear-most seat bracket assembly using the supplied retainer tension bolts and a 10mm socket wrench (Figure E). Ensure the rubber tension bolt cap stays intact.
6. Remove the rear-most tie downs using a Torx 30 bit (Figure F).
7. Align the rear-most base plate bracket with the rear mounting holes and secure using the tie downs removed in Step 6 (Figure G).
Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 02/22/2018
