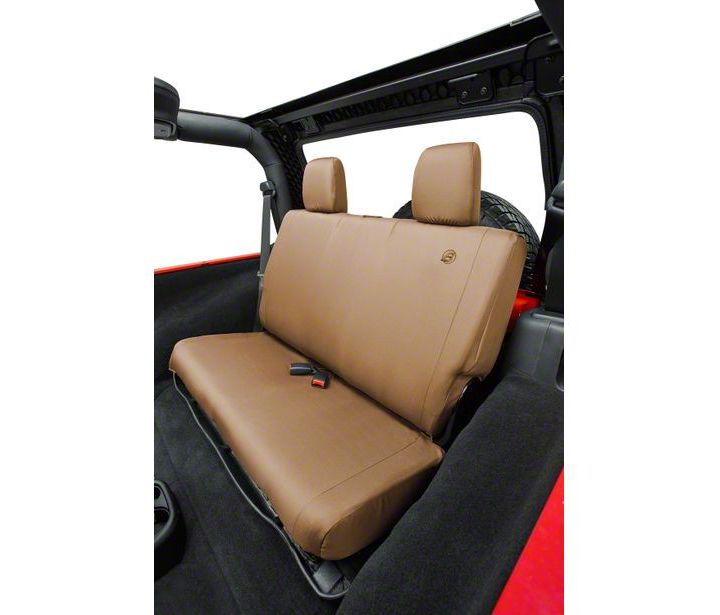

How to Install Bestop Rear Seat Cover - Tan (2007, 13-18 Wrangler JK 4 Door) on your Jeep Wrangler

Installation Time

60 minutes

Tools Required
  • Box Cutter/Knife (To Open Packaging)
Extreme Terrain
Shop Parts in this Guide

1. Begin by unzipping the small seat's backing (Figure A).


Figure A

2. Slide the small seat's backing over the small seat back (Figure B).


Figure B

3. Open the Velcro in order to slide the small seat backing over the headrest (Figure C).


Figure C

4. Align the small seat backing over the small seat back (ensuring the seat release is open (Figure D).


Figure D

5. Unzip the large seat backing (Figure E).


Figure E

6. Open the Velcro in order to slide the large seat backing over the headrest (Figure F).


Figure F

7. Line the unzipped portion up around the seat belt (Figure G).


Figure G

8. Zip the large seat backing up around the seat belt question (Figure H).


Figure H

9. Slide the seat covers through the slip for both seats (Figure I).


Figure I

10. Zip the small seat backing back up (Figure J).


Figure J

11. Attach the seat backing to the slip.


12. Slide the lower seat over the larger seat (Figure K).


Figure K

13. Slide the lower seat over the smaller seat (Figure L).


Figure L

14. Run the straps underneath both seats and thread through the plastic buckles.


15. Slide the headrest cover onto the headrest (Figure M).


Figure N

Before

After

Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 07/10/2018
