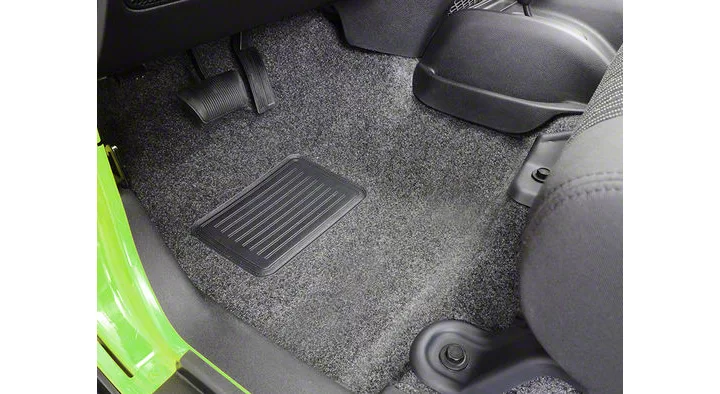

How to Install BedRug Front Floor Liners (87-95 Wrangler YJ) on your Jeep Wrangler

Kit Contents: Driver side front floor, passenger side front floor,  mid section, rear floor (4-door kits only),  heat shield material, hook fasteners, and instruction sheet.

1. Read all instructions before beginning installation.

WARNING: The use of frontfloor mats is not recommended with BedRug or BedTred floor kits. If floor mats are used, it is imperative to re-use the removable retention hooks from the factory carpet, installed to the manufacturers specifications.

Do not use floor mats or liners with BedTred Kits,  Do not use floor mats or liners with BedRug  Kits without retention hooks.

"Please retain these instructions for future  reference in your vehicles glove box"

DON'T REMOVE YOUR SEATS!  Our kits and your factory carpet are precut to make removing your seats unnecessary.

3. Remove old Jeep flooring material (if equipped)

4. Wash and dry the floor pan areas thoroughly.

5. Place the hookfasteners on each piece of loop sewn on the back side of the BedRug. For BedTred installation, place the hook fasteners to the loop surface on the underside of the BedTred. Use drawing on Page 4 for proper location.   DON'T REMOVE YOUR SEATS!  Our kits and your factory carpet are precut to make removing your seats unnecessary.

6. Cut the hook fasteners with tape backing to match the length of the loop sewn on the underside of each Bed Rug piece. Pre-install provided heat shields on underside of the two front pieces in areas (see Page 4), using the locator marks. (Fig. 1) Note: Passenger side heat shield is the larger of the two pieces.

IMPORTANT: Jeep floor should be at least 68°F (20°C) for maximum adhesion. Clean all areas with rubbing alcohol before applying tape. When removing backing, do not touch adhesive.

INSTALLING FRONT FLOOR PIECES

7. Adjust the front seats to the rear most position to allow maximum clearance for installation. Race front floor pieces into place. Tuck under console and around seat brackets as shown. (Fig. 2 and Fig. 3)

8. Once properly aligned, pull back part to access the three pieces of hook fastener (Fig. 4). Clean surface with alcohol then remove the film backing and roll the part back into place. Firmly press the top surface to ensure adhesive attachment. Repeat for other front floor piece.

9. Adjust the front seats to the fully forward and tilted up (2-door passenger entry) position. Next place the mid section into place. Position the mid section around seat brackets (Fig. 5 and Fig. 6) and tuck under cupholder and console. (Fig. 7)

10. Once properly aligned, pull back part to access the four pieces of hook fastener. Clean surface with arced then remove the film backing and roll the part back into place. Firmly press the top surface to ensure adhesive attachment.

11. Place the rearfloor section into place. Tuck the liner around and underneath the front and rear seat brackets (Fig. 8 and Fig. El)

12. Once properly in place, pull back part to access the four pieces of hook fastener. Glean surface with alcohol then remove the film backing and roll the part back into place. Firmly press the top surface to ensure adhesive attachment.

FITMENT NOTE: The rear floor section is designed to fit on top of the rear wheel well pieces.

NOTE: Diagram is shown from bottom view.

Congratulations on choosing the finest interior flooring kit available for your Jeep.  The BedRug/BedTred material is mold and mildew resistant, easily cleaned with water & household cleaning chemicals and extremely resistant to most chemicals.

Klt Contents: Driver side wheel well, passenger side wheel well, rear cargo floor, tub liner, tailgate piece, hook fasteners, 3M adhesive promoter and instruction sheet.

1. Read all instructions before beginning installation.

2. Remove old Jeep flooring material (if equipped). On 2-door JK models, removal of the rear seat will also be necessary. For the 4-door, removal of the rear seat is NOT necessary

3. Wash and dry the floor pan and wheel well areas thoroughly.

4. Out the hook fasteners with tape backing to match the length of loop sewn on the underside of each Bed Rug piece. Place the hook onto each location. Do not remove the tape backing at this time. (Cut the longest pieces first.) Refer to drawing on Page 4. For BedTred hook fastener installation; cut hook fasteners to length and install in locations notated on Page 4.

IMPORTANT: Jeep floor should be at least 68°F (20°C) for maximum adhesion. Clean all areas with rubbing alcohol before applying tape. When removing backing, do not touch adhesive. If both front and rear kits were purchased be sure to install the rear cargo areafirst.

5. Fit driver side wheel well One into place, fitting around seat belt mount and roll bar. {Fig. 1 and Flg. 2) Like the factory carpet kit, there is a flap at the bottom of both wheel well pieces designed to roll onto the cargo floor. Cargo floor piece will overlap flap. NOTE: On 2-door JK, removing the rear seat will be necessary for installation.

6. Next pull up bottom of wheel well piece to access hook fastener. Clean surface with alcohol then  remove the film backing and roll the part back into place. Firmly press the top surface to ensure adhesive  attachment.

7. Now pull down the top of the wheel well piece to access the hook fastener. Clean the surface with alcohol then remove the film backing and roll the part back into place. (FIg. 3) Firmly press the top surface to ensure adhesive attachment.

8. Material should be tucked behind plastic cladding equipped on 2011- current Jeep JK models. (Fig. 4)

9. Repeat steps 5 through 8 for the passenger side wheel well.

10. Fold back factory hinged lid and remove DE plastic tub insert (if equipped). NOTE: DE plastic tub may be reinstalled on top of the BedRug tub liner. Some trimming modifications will be necessary to allow DE tub insert. See drawing on Page 4. OE Plastic insert cannot be used with BedTred tub liner. You may use one or the other.

11. Position provided liner in empty tub cavity, ensuring lid latch is pushed thru the material. Now fold the liner edges to access the hook fasteners. Clean the surface with alcohol then remove the film backing and roll the part back into place. (Fig. 5) firmly press the top surface to ensure adhesive attachment.

12. If equipped, cut at score lines on back of floor for access to factory tie downs. Position cargo floor liner into rear of Jeep. NOTE: Part is designed to fit on top of the factory carpeted lid. There is an access flap precut in the floor for the lid retaining ring.

13. After properly positioned, pull up the edges of cargo floor piece to access the hook fasteners. Clean painted surfaces with alcohol then remove the film backing. Firmly press the top surface 10 ensure adhesive attachment (Flg. 6)

14. Hook fastener at rear edge of cargo floor attaches directly to the carpel surface on the factory lid.

NOTE: It will be necessary to use the supplied adhesive promoter pack (3M-4298) on the plastic cladding present on 2011-current JK models where adhesive makes contact. (Flg. 7). Trim the rear corners of cargo area floor piece, if equipped with plastic cladding, using the score marks on the back of the part. See diagram on next page.

NOTE: Additional trimming will be necessary on the passenger side of cargo floor for 2011-current  JK models equipped with factory sub woofer option. Use a utility knife with a sharp blade, cut at score line on back of part, and tuck material under plastic cladding. (Fig. 8).

15. Now repeat the process for the hook fastener in front of the rear seat (2-door models) and underneath the rear seat (4-door models) where the two floor pieces meet.

NOTE: If both front and rear kits are being installed the floor piece in the rear passenger area should overlap the wheel well pieces and the rear floor piece.

INSTALLING TAILGATE PIECE

16. Position tailgate liner then clean surface with alcohol then remove film backing from fastener and attach to the tailgate. Firmly rub entire surface to ensure good attachment. (Fig. 9 and Fig. 10)

BEDTRED HOOK L&O OP PLACEMENT & BEDRUG TRIMMING INSTRUCTIONS.

NOTE: Cargo floor has high cycle loop fasteners pre-installed at the factory (see drawing). Apply hook fasteners to these pre-installed loop fasteners,

NOTE: Cargo floor rear edge has pre-installed hook fastener from the factory, no additional fasteners are needed.
