2020-2026
Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Winches for your Gladiator
Barricade 9,500 lb. Winch (Universal; Some Adaptation May Be Required)
Item JG1538
$0.00
Our Price
$399.99
Military, Medical & First Responders
$40.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- 9,500-Pound (4310 Kgs.), Single-Line Pulling Capacity
- 5.5 Hp, 12 Volt, Series Wound Motor
- 3 Stage Planetary Gear with a 195.4:1 Ratio
- 94 Feet of 21/64 Inch Steel Winch Rope with Replaceable Hook
- Line Speed Under Full Load is 6.4 Feet Per Minute
- Weighs 58 Pounds and is 21.1 Inches by 6.3 Inches by 8.6 Inches with a Mounting Footprint of 10 Inches by 4.5 Inches
- Black Powder Coat Finish
- Heavy-Duty Rubberized Remote Control with a 12-Foot Lead
- Roller Fairlead
- Universal Application
Description
Pulling Capacity. Barricade Off-Road's 9500 Pound Winch is essential for any off-roader whether you're on easy romp through the woods or a competition course. This winch provides reliable pulling power for when you and your Jeep find yourselves stuck. Its 5.5hp, 12-volt motor with a gear ratio of 195.4:1 can recover your Jeep from the deepest mud or biggest rock jam.
Winch & Line Specs. This Barricade Off-Road Winch comes with everything needed to get started, straight out of the box. The 94 feet of 21/64 of an inch steel winch cable is made to last you years and resist the elements you put it through. Matched with the 2-way automatic, in-the-drum braking system you know you can always rely on this winch to hold your rig.

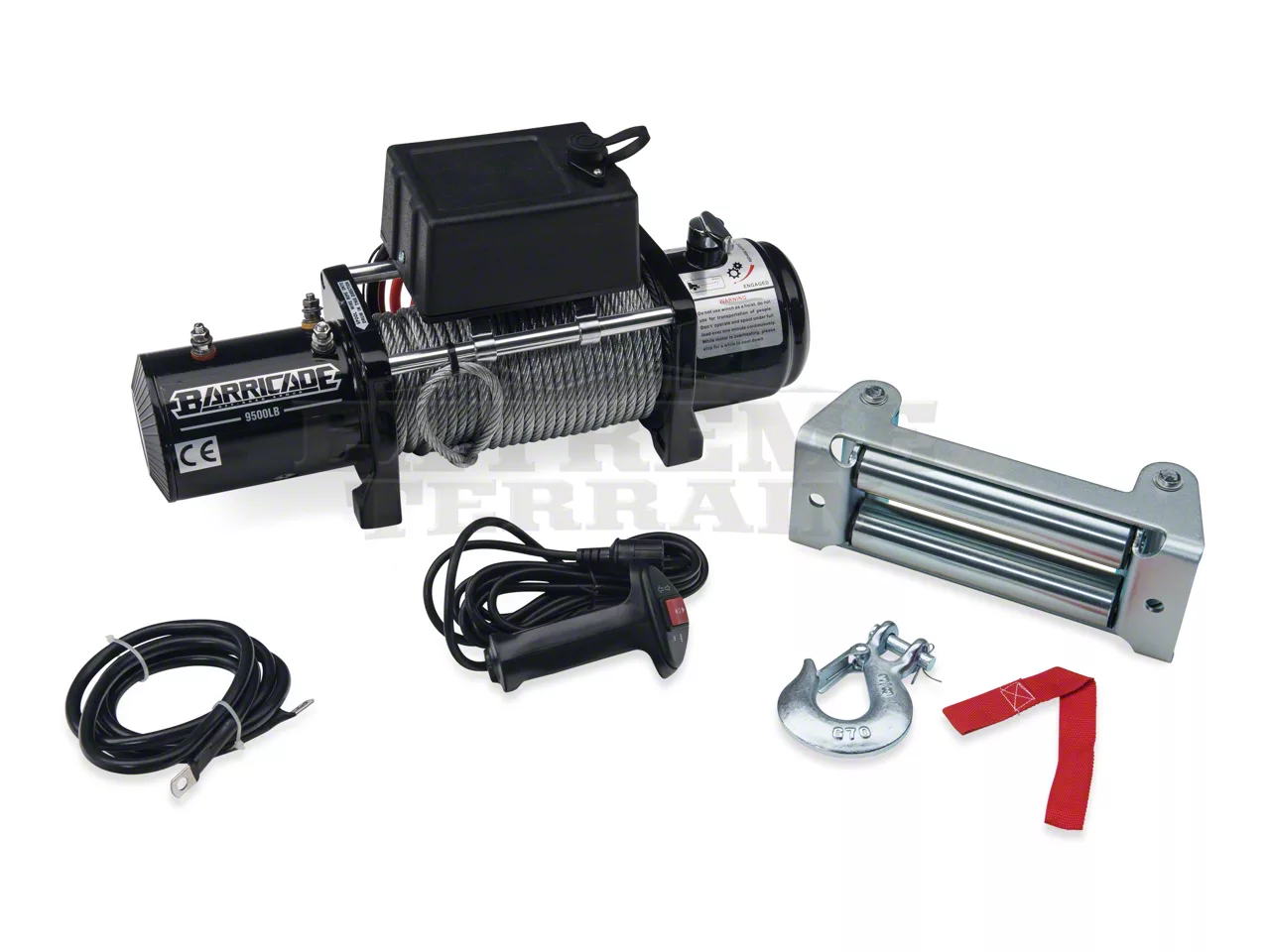

Accessories. This winch comes with a 21/64 inch steel winch cable, hook, remote control on a 12-foot lead, and a 4-way aluminum roller fairlead.
Application. This winch requires a battery with a minimum of 650 cold cranking amps to operate properly. Installs on all 2020-2026 Jeep Gladiator JT models.
Line Pull Speeds
- 0 lbs. - 35.4 ft./min
- 2000 lbs. - 14.8 ft./min
- 4000 lbs. - 11.2 ft./min
- 6000 lbs. - 9.5 ft./min
- 8000 lbs. - 7.87 ft./min
- 9500 lbs. - 6.43 ft./min
- Replacement Hardware – SKU U2395H
Barricade JG1538
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Hexagon screw
- (1) Spring washer M5
- (1) Clutch handle
- (1) Nut cap
- (1) Cup gasket
- (1) Spring washer Φ20
- (2) O-ring
- (1) Gear box housing
- (1) Shaft sleeve
- (1) Sun gear
- (1) 3rd Planetary gear assy
- (1) Dual inner gear
- (1) 2nd Planetary gear assy
- (1) 1st Planetary gear assy
- (1) Sealing washer
- (4) Hexagon screw M8x25
- (4) Spring washer Φ8
- (1) Gear box bracket
- (10) Spring washer Φ4
- (10) Hexagon screw M4x20
- (2) Bearing bush
- (2) Sealing washer
- (1) Transmission shaft
- (1) Drum assembly
- (1) Brake assembly
- (2) Tie bar
- (1) Motor assembly
- (4) Cross Recess Head Screw M4.2x12
- (2) Mounting bracket assembly for control box
- (1) Control box assembly
- (1) Fairlead
- (1) 3/8” Hook
- (1) Wired remote control
- (1) Battery negative (-) cord 1.8M
- (1) Wireless remote control (Optional)
- (1) Part No S0107/08-31 — 0.75mm2 brown switch control wire
- (1) Part No S0107/08-32 — 0.75mm2 red switch control wire
- (1) Part No S0107/08-33 — 0.75mm2 yellow switch control wire
- (1) Part No S0107/08-34 — 0.75mm2 yellow remote control wire
- (1) Part No S0107/08-35 — 0.75mm2 white remote control wire
- (1) Part No S0107/08-36 — 0.75mm2 red remote control battery "+" wire
- (1) Part No S0107/08-37 — 0.75mm2 black remote control battery "-" wire
- (1) Part No S0107/08-38 — Green antenna
- (1) Part No S0107/08-39 — 0.4m short Black Cable with Yellow Terminal Sleeve
- (1) Part No S0107/08-40 — 1.8m long red battery cable "+"
- (1) Part No S0107/08-41 — 0.4m black motor cable with black sleeve
- (1) Part No S0107/08-42 — Black Cable with Black Sleeve (0.75mm x 0.45m; earth)
- (1) Part No S0107/08-43 — 0.4m Short Red Cable with Red Terminal Sleeve
- (1) Part No S0107/08-44 — Receiver for remote
- (1) Part No S0107/08-45 — U Type Strap-Aluminum
- (1) Part No S0107/08-46A — Solenoid 12V (or Part No S0107/08-46B — Solenoid 24V depending on voltage)
- (3/8") UNC x 1-1/4" stainless steel bolts and spring washers (provided for mounting)
Tech Specs
| Manufacturer | Barricade Off-Road | Line Capacity | 9500lb |
| Motor Specs | 5.5 hp, 12-volt series wound | Line Type | 94ft, 21/64 inch Steel cable |
| Gear System | 195.4:1, Planetary |
