Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Light Bars & Off-Road Lighting for your Tacoma

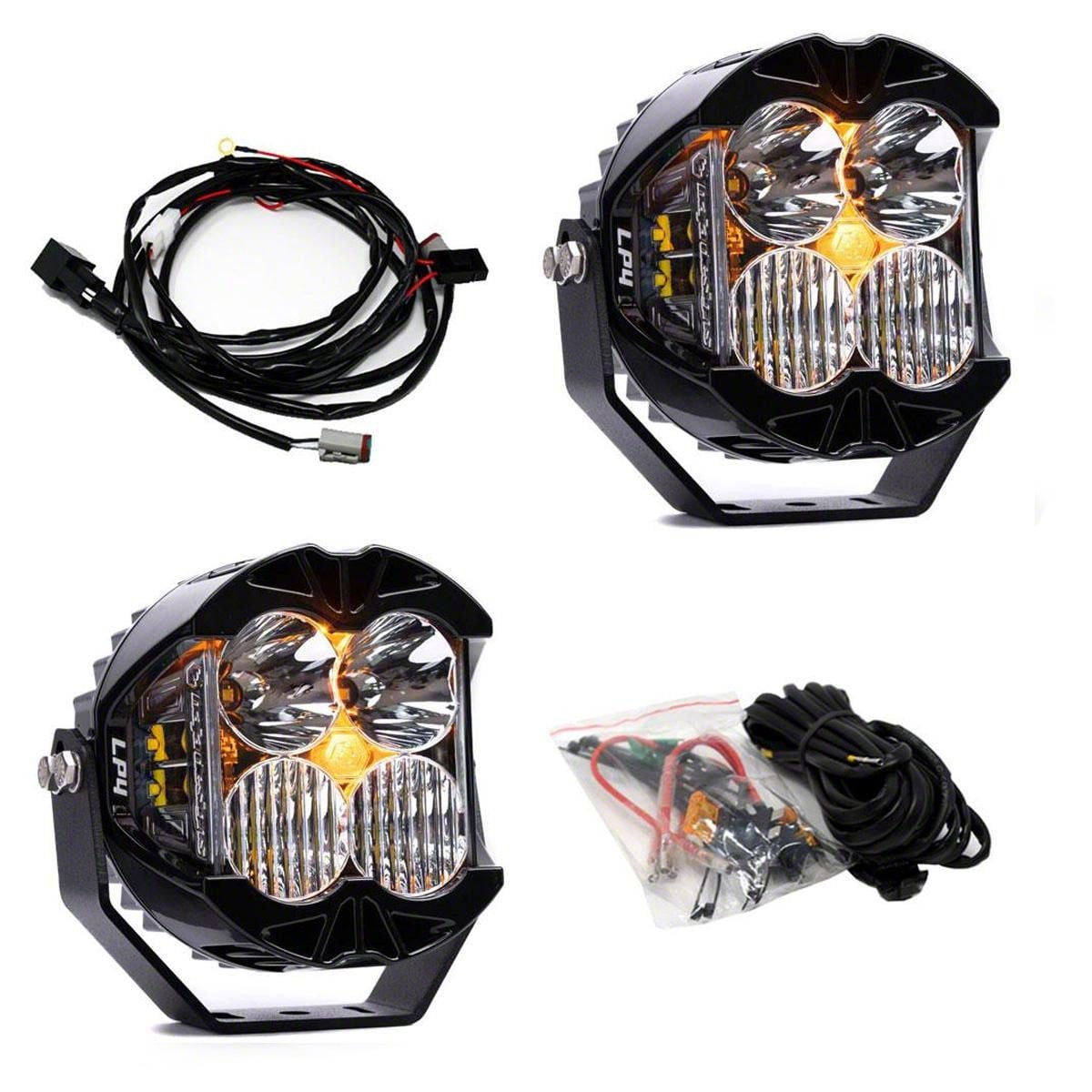

Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)
Item TT40816
Our Price
$963.55 pair
Military, Medical & First Responders
$48.18 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP4 Pro LED Light Pod Pair with Wiring Harness _x000D_
- Amperage Rating 5.500 Amp _x000D_
- Brightness 8857 Lumens _x000D_
- Light Quantity 2 Pods (4 LEDs total) _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting with Integrated Peripheral Technology (IPT) _x000D_
- Wattage 75.900 Watts _x000D_
- Wiring Harness Included Yes _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Backlight Amperage Rating 0.350 Amp _x000D_
- Backlight Wattage 4.830 Watts _x000D_
- Beam Pattern Driving Combo _x000D_
- Bezel Material Powder-Coat Cast Aluminum _x000D_
- Brightness Secondary 1972 Lumens _x000D_
- Housing Color Black _x000D_
- Housing Material Powder-Coat Cast Aluminum _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Lighting Modes Beam, Daytime Running Backlighting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Exceeds MIL-STD810G Mil-Spec Testing for Durability _x000D_
- IK10 Compliant Mechanical Impact Testing for Impact Resistance _x000D_
- IP69K Waterproof up to 9ft Pressure Washable for Water Resistance _x000D_
- Dimensions: Depth 3.200 Inches, Height 5.100 Inches, Length 5.100 Inches _x000D_
- Weight 2.800 Pounds _x000D_
- Fits Universal Applications (Some Adaptation May Be Required) _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 5 to 5.75 Inch |
Description
Advanced LED Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight and Driving/Combo Beam are engineered to deliver exceptional supplementary illumination. Featuring a powerful forward-projecting beam combined with integrated peripheral technology (IPT), these lights enhance visibility and safety in off-road and various driving conditions by offering an expansive light spread.
_x000D__x000D_Durable Construction. These light pods feature powder-coated cast aluminum housings and hardcoated polycarbonate lenses to withstand harsh environments. The black finish provides a rugged aesthetic, while stainless steel mounting hardware ensures corrosion resistance and durability over time.
_x000D__x000D_Installation. Designed for ease of installation, the included wiring harness and mounting hardware facilitate a mostly bolt-on fitting, requiring no drilling in most installations. Basic automotive skills are sufficient for proper setup.
_x000D__x000D_Warranty. The product comes with a limited lifetime warranty, offering protection against defects and ensuring long-term satisfaction.
_x000D__x000D_Application. Suitable for universal use with some adaptation needed depending on specific vehicle configurations.
Baja Designs 297803
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) LED Light Pods
- Wiring Harness
