Find Light Bars & Off-Road Lighting for your Tacoma

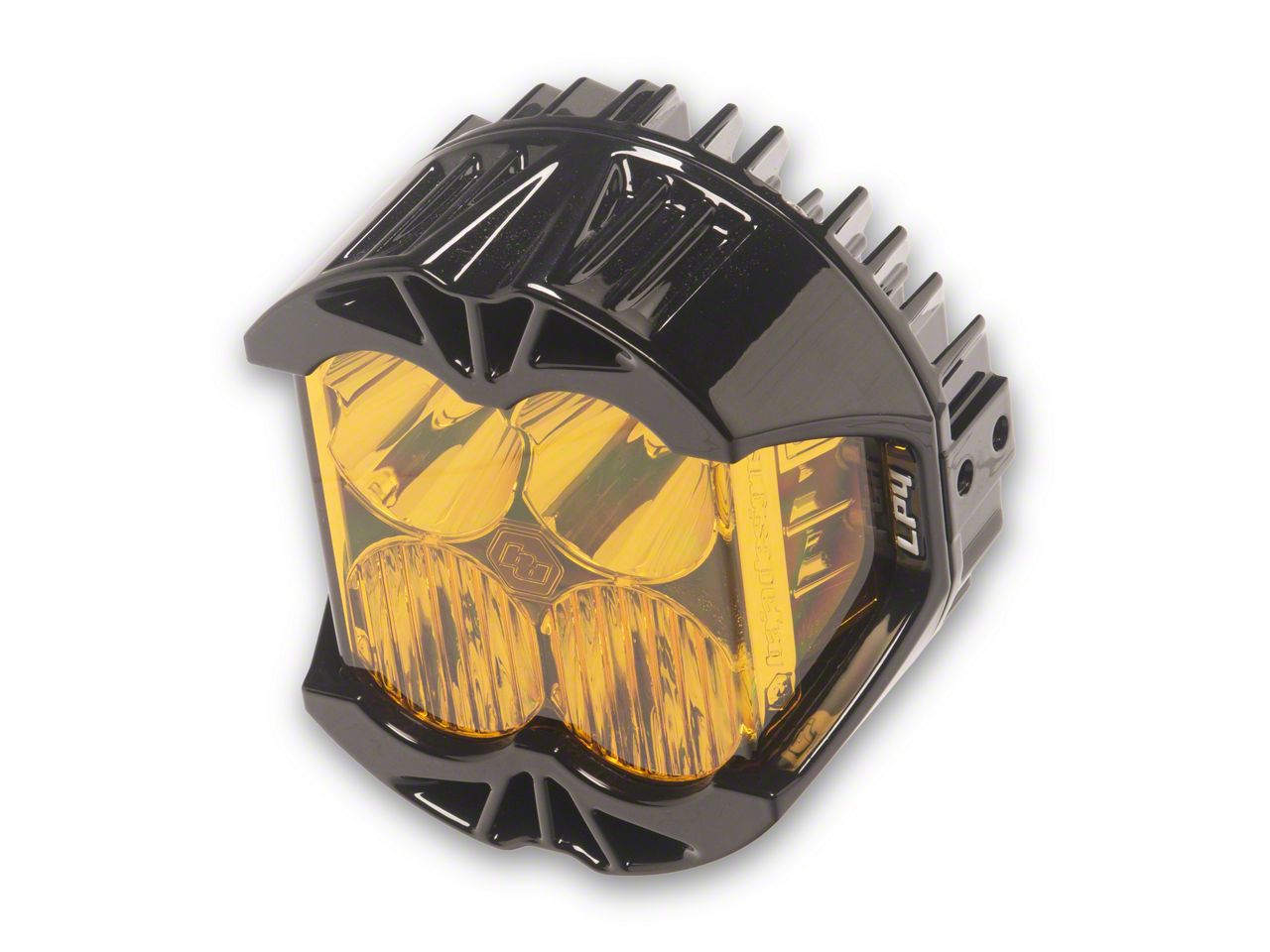

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Amber (Universal; Some Adaptation May Be Required)
Item TT40809
Our Price
$437.95 each
Military, Medical & First Responders
$21.90 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Lens Color Amber
- Lens Material Hardcoated Polycarbonate
- Light Quantity 1
- Lighting Modes Beam/Day-Time Running Backlighting
- Lighting Quantity 4
- Lighting Technology LED
- Lighting Type Forward Projecting
- Mounting Hardware Included Yes
- Mounting Hardware Material Stainless Steel
- Overvoltage Protection Built-In
- Product Type LP4 Pro LED Light Pod
- Secondary Amperage Rating 1.000 A
- Secondary Brightness 1972 Lumens
- Secondary Light Quantity 4 LEDs
- Secondary Lighting Technology LED
- Secondary Lighting Type Integrated Peripheral Technology (IPT)
- Secondary Wattage 15 W
- Terminal Connector DT06-4S Deutsch
- Terminal Type Mating Connector
- Wattage 75.9 W
- Wiring Harness Included No
- Amperage Rating 5.5 A
- Average Rated Life 49,930 Hours
- Backlight Amperage Rating 0.350 A
- Backlight Wattage 4.83 W
- Beam Pattern Driving/Combo
- Bezel Material Powder Coat Cast Aluminum
- Brightness 8857 Lumens
- Description Driving/Combo; Amber
- Housing Color Black
- Housing Material Powder Coat Cast Aluminum
- Standards Exceed MIL-STD-810G (Mil-Spec Testing)
- Impact Resistance IK10 Compliant (Mechanical Impact Testing)
- Water Resistance IP69K (Waterproof up to 9 ft & Pressure Washable)
- Depth 3.2 Inches
- Height 5.1 Inches
- Length 5.1 Inches
- Weight 2.8 Pounds
- Fits Universal; Some Adaptation May Be Required
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 5 to 5.75 Inch |
Description
HIGH-PERFORMANCE AUXILIARY LIGHT. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Amber delivers powerful off-road illumination ideal for night driving and trail navigation. It features a combined forward and peripheral light pattern to enhance visibility in multiple zones, providing both focused and wide-angle lighting effectively. This model's amber lens and backlight improve contrast and reduce glare in fog or dust, increasing safety and utility in challenging conditions.
CONSTRUCTION AND APPEARANCE. Crafted from powder-coated cast aluminum housing, this light pod offers durability with a sleek black finish that resists corrosion and abrasion. The lens is made of hardcoated polycarbonate, providing resistance to scratches and environmental damage. Stainless steel mounting hardware ensures secure installation and long-lasting stability under demanding conditions.
INSTALLATION. Installation requires moderate skill with included mounting hardware, typically not requiring drilling on standard mounts. The product uses a DT06-4S Deutsch mating connector but does not include a wiring harness, which must be purchased separately.
WARRANTY. This light pod is backed by a limited lifetime warranty for comprehensive purchase protection.
APPLICATION. Fits universal mounting applications with some adaptation possibly necessary to fit specific vehicle configurations.
Baja Designs 290013
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LED Light
