Find Light Bars & Off-Road Lighting for your Tacoma

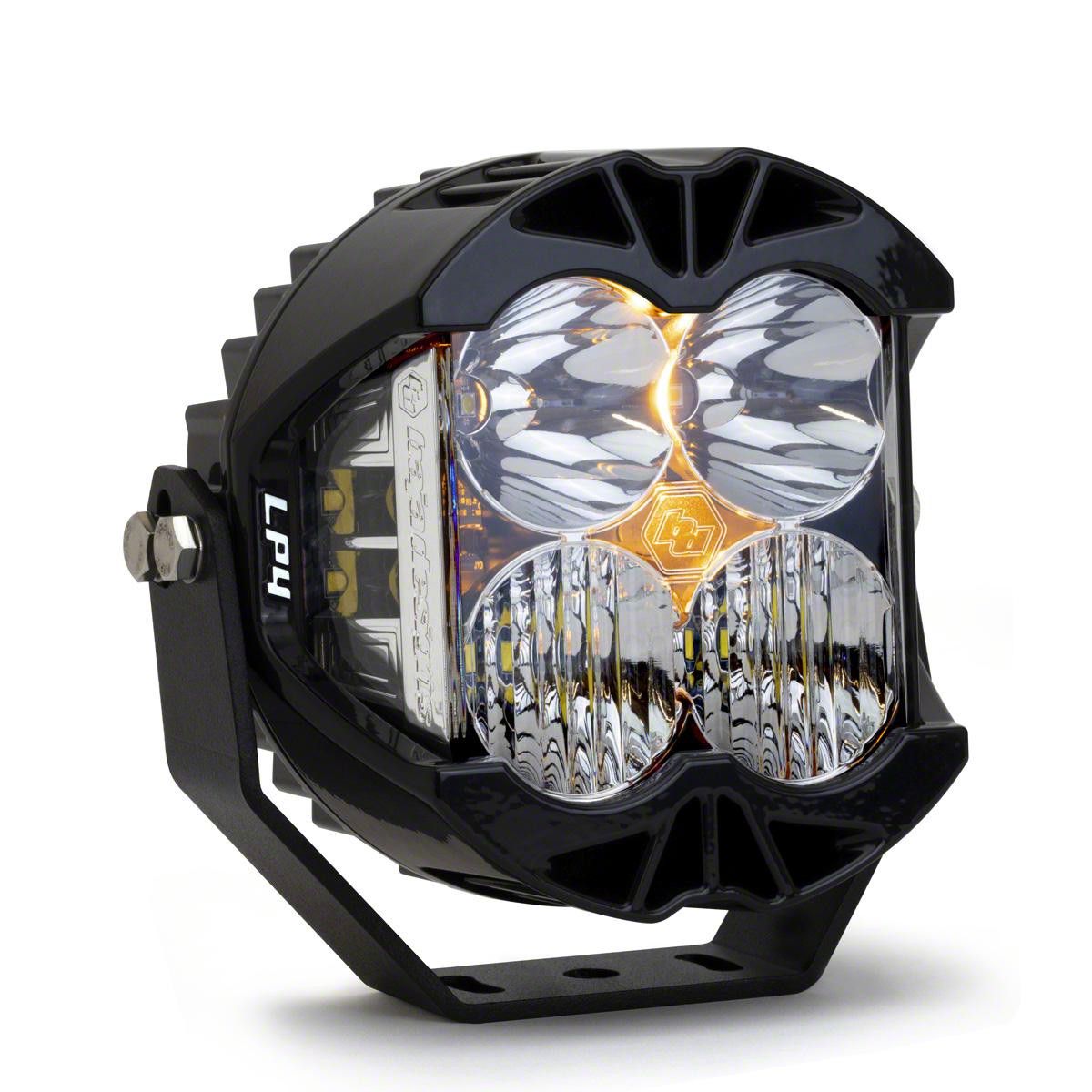

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Spot Beam; Clear (Universal; Some Adaptation May Be Required)
Item TT40811
Our Price
$481.75 each
Military, Medical & First Responders
$24.09 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam/Day-Time Running Backlighting _x000D_
- Lighting Quantity 4 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP4 Pro LED Light Pod _x000D_
- Secondary Amperage Rating 1.000 A _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Light Quantity 4 LEDs _x000D_
- Secondary Lighting Technology LED _x000D_
- Secondary Lighting Type Integrated Peripheral Technology (IPT) _x000D_
- Secondary Wattage 15 W _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
- Wattage 75.900 W _x000D_
- Wiring Harness Included No _x000D_
- Amperage Rating 5.500 A _x000D_
- Average Rated Life 49,930 Hrs _x000D_
- Backlight Amperage Rating 0.350 A _x000D_
- Backlight Wattage 4.830 W _x000D_
- Beam Pattern Spot _x000D_
- Bezel Material Powder Coat Cast Aluminum _x000D_
- Brightness 8857 Lumens _x000D_
- Description Spot; Clear _x000D_
- Housing Color Black _x000D_
- Housing Material Powder Coat Cast Aluminum _x000D_
- Standards/Compliance Durability Exceeds MIL-STD810G (Mil-Spec Testing) _x000D_
- Standards/Compliance Impact Resistance IK10 Compliant (Mechanical Impact Testing) _x000D_
- Standards/Compliance Water Resistance IP69K (Waterproof up to 9ft & Pressure Washable) _x000D_
- Depth 3.200 In. _x000D_
- Height 5.100 In. _x000D_
- Length 5.100 In. _x000D_
- Weight 2.800 Lbs. _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 5 to 5.75 Inch |
Description
HIGH-PERFORMANCE AUXILIARY LIGHT. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight and Spot Beam in Clear is engineered to deliver a powerful, focused beam for superior visibility in diverse off-road conditions. It offers a combination of intense forward projection and integrated peripheral lighting, ideal for trail driving, racing, and other challenging environments.
_x000D_CONSTRUCTION AND APPEARANCE. This light pod boasts a rugged powder-coated cast aluminum housing with a black finish and a hardcoated polycarbonate lens for enhanced impact and abrasion resistance. The powder-coated aluminum bezel complements the durable design, providing both protection and aesthetic appeal.
_x000D_INSTALLATION. Installation is straightforward with included stainless steel mounting hardware. Typically, no specialized tools or drilling are needed, making it suitable for professional installers and experienced home users alike.
_x000D_WARRANTY. Backed by a lifetime limited warranty, ensuring long-lasting reliability and peace of mind.
_x000D_APPLICATION. Fits universal; some adaptation may be required.
Baja Designs 290001
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LED Auxiliary Light Pod
