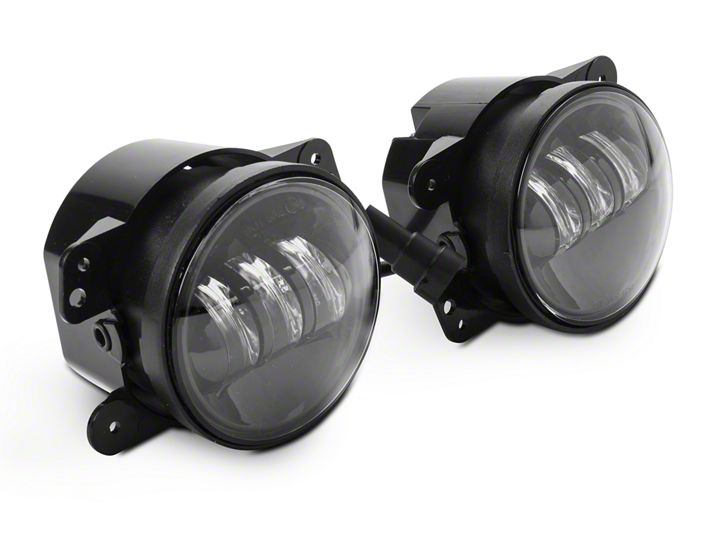

How to Install Axial LED Fog Lights on your Wrangler

**NOTE:

Removal of bumper is not necessary but can make the job easier.

Step 1:

Remove the 6 pins holding the splash guard onto the vehicle

Step 2:

Next, unplug the factory fog lights and loosen the (8) 19mm nuts holding the front bumper to the support beam of the vehicle.

Step 3:

To remove the fog lights, loosen the 4 phillips screws on each light.

Step 4:

Remove the unnecessary plug from the adapter harness. Then splice the red and black wires to the factory fog light harness.

Step 5:

Follow steps 1-3 in reverse.
