(approx) 6 Hours
Mechanical expertise or professional installation required.
$2,055.00 (kit)FREE Shipping
I'm Ryan from extremeterrain.com, and this is my review of the ARB Traction Pack, fitting all 2007 and up JKs. There are two different versions of this traction pack, one for those of you with the Rubicon and one for those of you without. So make sure you pick the right one for your Jeep. Today we're gonna talk through the installation of this trac pack, which is a three out of three wrench installation. This is something that the vast majority of you guys are going to wanna take to a shop to have them install. This is not something that you can simply open up the differential and throw in like a lunchbox locker or something that's easy to do in your driveway. You are going to have to completely reset up your gears, and even if you are comfortable setting up a differential, the intricacies of an air locker do make it even that much more difficult. So for the vast majority of you, this is going to be something you're going to be taking to a shop to have them install. We're also going to talk through the construction of this setup, what it comes with, and the big benefits and features of a traction pack setup like this. This traction pack is for those of you who want to add lockers front and rear of your Jeep and also add onboard air at the same time. This package is going to give you all of that. Now, for those of you who aren't familiar with what a locker is, and specifically an air locker, a locker will connect the two wheels on the same axle together so that they are always spinning at the same speed at the same time, and an air locker uses air to actuate that mechanism. So some of you might be thinking, "I already have four-wheel drive. Why do I need a locker?" Well, if you don't have a Rubicon, you do have four-wheel drive, but only one tire on each axle is going to be receiving power at one time. If you have an open differential, when one tire is up in the air receiving very little traction, that's the tire that gets power. If you have a posi rear, you're going to be getting all of the power to the tire that has traction but none of the power to the tire that has less traction. So the locker is a way that's going to completely lock that axle together, and if you have front end rear lockers like these, all four tires are going to be spinning at the same time, so it makes it much more difficult to get stuck. Obviously, this is called a traction pack. This gives you a ton more traction. You have to be high-centered in a position where most of the tires aren't touching the ground or at least don't have enough weight on them to pull you forward to get stuck. You're going to put yourself in a situation where you can get over a lot more obstacles when you have lockers installed, especially when you have front end rear lockers installed. And one of the big benefits to installing an air locker, or really any selectable locker, is that you can turn it on and off whenever you need to. So when you're going around a sharp corner on a trail, you can very easily kick off your front locker or your front and your rear locker to make it around that corner a lot easier. If you had the lockers installed, your turning radius is definitely a lot worse, so having a selectable locker like this is a really nice option. The fact that this also includes, because it isn't an air-actuated locker, basically an onboard air system for you. You have your compressor that's going to run these lockers, but you'll also get included an air hose with quick-disconnect fittings on it and a fill gauge so that you can easily air up your tire after you're done out on the trail. This is a really complete kit, and if you've been doing some research on lockers for a while, you'll know that ARB has a really good name in lockers, because they build a very strong mechanism. In fact, there are a lot of manufacturers out there from overseas that have been trying to copy this mechanism for a long time, obviously not doing it as well, because they're trying to do it cheaper, and they end up breaking. This is a very, very strong locker mechanism. Now, that being said, just because you have a set of lockers, you have a lot more traction, and your locking mechanism is very, very strong, that's not to say that the rest of your setup is going to be able to handle being locked up. If you have 37s and you have lockers, chances are you're probably going to break something along the way. You're gonna break an axle shaft. You're going to bend an axle housing. So it is important to remember that, when you get to the level of installing a pair of lockers like this and you have big, heavy wheel-tire combinations, you do have to be careful. You have to remember that there are other mods that are gonna come along with these lockers to make sure that the rest of drivetrain can hold up to it. So the traction pack I have in front of me is designed for a non-Rubicon JK, so this is going to fit your Dana 44 in the rear and your Dana 30 up front. And what this locker is going to do is completely replace the carrier mechanism inside of your differential, getting rid of the spider gears in their more traditional sense and replacing everything in the differential with this new carrier, this new air-locking carrier. You're also going to have to drill a hole in your differential so that you can get the air supply into this new carrier so that you can lock and unlock the differential at will. You have your compressor over here, which is a high-output compressor, which allows it to not just be used to run your air lockers but also to be used for your onboard air system. Now, these lockers need a certain PSI to engage, and they really don't need any volume. They just need that pressure to hold them in the locked position, so you don't really need this high-output compressor to run the lockers. But this kit does come with a high-output compressor, because it also comes with the air line and the fill gauge so that you can use this system to air up your tires when you're leaving the trail, which, again, is a really nice feature. This system is really gonna come with pretty much everything that you need. It's going to come with your air switches so that you can independently switch your front and your rear locker on, going to come with an independent switch to turn your compressor on and off. That's important, because you might wanna turn your compressor on so that you can fill your tires up, but not have your axle locked. This is gonna come with all of your switches, your wiring harnesses. This really does come with everything you need to get it installed. However, as I said before, this is not an install most of you are gonna wanna tackle. This is something that you're gonna wanna take it not just to a differential shop, but, if you can find one, to a shop that is experienced in installing these ARB air lockers, because there are some intricacies when installing a system like this that you don't wanna get wrong, because you wanna make sure that your locker is gonna work. If you're in a situation where you're on a tough trail, you wanna make sure that the locker locks so that you can get through the obstacle and stays locked without causing you any sort of issue. So, again, I've hit on it a couple of times, the installation for this setup is a three out of three wrenches. Now, if it saves you some money, if you are handy, if you do want to install part of this system by yourself, you can certainly install your compressor, you can run your air lines, you can do all of your wiring, you can get all of that done. However, the vast majority of us are going to wanna take our Jeeps to a shop to have them actually install the locker in the differential, get the rear set up properly, bore the hole in the housing, do all of that heavy lifting work. This is not a job that a lot of you guys are going to want to tackle in your driveway. There's just a lot that goes into the installation. As far as tools you're gonna need, it's really everything that you have in your toolbox and some specialty tools that you're gonna need for setting up rears, for setting backlash. You're going to need to be able to set all of your preloads. You're gonna need calipers for measuring shins. There's really a lot that goes into installing the locker portion of this. Again, if you want to install these other parts and do part of it to save yourself a little bit of money, you can certainly do that, but these you're going to want to leave to the professionals. So, as I said before, I think this system is a fairly priced system for everything that you get. It's going to be around \$2000, but when you get both lockers, front and rear, and you get an onboard air system, I think that that's a pretty good deal. Granted, this is a tankless onboard air system, but if you're familiar with onboard air systems, you can purchase a tank, you could certainly add a tank if you wanted to have that as part of your system, and you can still do it for less than it would be to piece together a system like this. This is something that is going to save you some money, is going to be an easy one-stop shop, one box, has everything you need in it. I think that this is a really good deal. Granted, when you're budgeting for lockers, I wouldn't just budget for this \$2000 kit and say, "Ah, I'm done. Now, I have lockers." You are going to have to budget to beef up the rest of the drivetrain, as we mentioned before, to hold up to the added stresses that a set of lockers will put on your drivetrain. So if you're serious about off-roading, if you want the maximum amount of traction possible, locking up your axle, both front and rear, is the way to do it, and having not just a selectable locker, but an air locker like this, makes it very easy to kick your lockers on and off when you need them, still get around tight corners on the trail by being able to turn them off, but turn them on very easily from inside the cab when you wanna get up an obstacle. And because you have to have an onboard air system in order to run these lockers, you automatically have a way to fill up your tires when you leave the trail. This, in my opinion, is a really fairly priced system that is one of the highest quality sets of lockers that you can get that is going to turn your Jeep into something that can conquer pretty much any trail you point it at. So that's my review of the ARB Traction Pack, fitting all 2007 and up JKs, that you can find right here at extremeterrain.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation

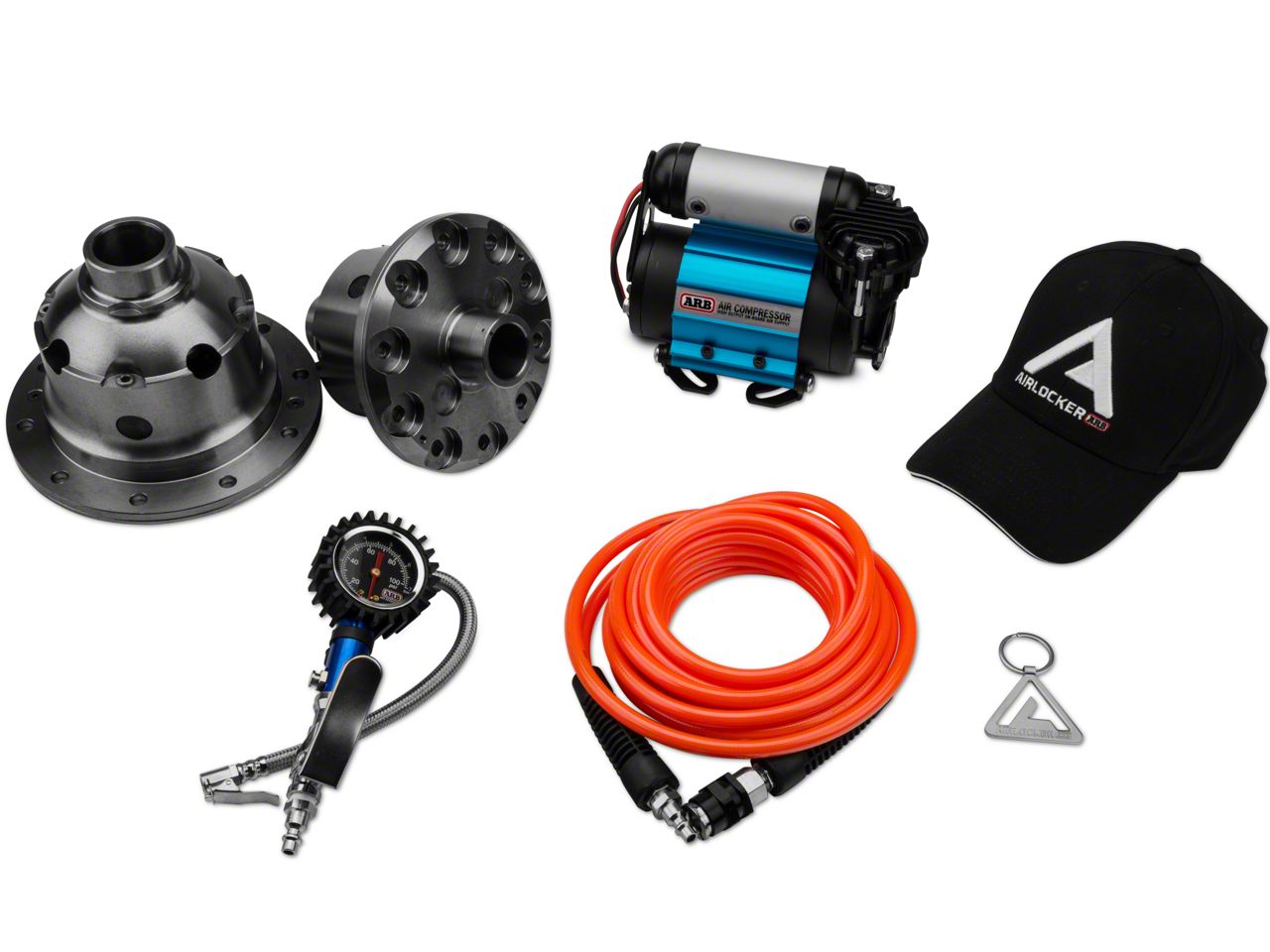

Complete Package. ARB's Traction Pack is an all in one package for those looking to upgrade their Rubicon to Air Lockers and a fully functional on board air system. Complete with a high performance compressor, pump up kit and an inflator with a gauge, this kit make conquering trails easier and provides a simple way to air up when you're ready to hit the paved road.
Air Lockers. This kit is specifically designed for Wrangler JK Rubicon models. It contains a Dana 44, 30 spline Air Locker for the your Rubicon's front axle and a Dana 44, 30 spline Air Locker for the rear. These air actuated lockers will upgrade your factory lockers to provide the critical traction necessary to overcome boulders and intense terrain.
Application. The ARB Traction Pack is designed for use in 2007-2018 Jeep Wrangler JK, excluding Rubicon models.
Fitment: 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
March 24, 2018
Fun and security
Love my lockers! These lockers are just what I need to tear up more AZ off-road trails.Helpful (14)
November 19, 2017
Worth the wait
Was well worth the money and the wait. Installed the lockers and 4:56 gears and can tell the difference No getting stuck nowHelpful (14)
April 20, 2017
The kit is just what I wanted to improve my Jeep's off road handling. It now will go any place I want to go either hunting of just off roading. I had the kit installed by a local off road company. It fit as billed and has gained me lots of performance with the added 4.56 gearing. I would recommend this kit to anyone wanting more traction. One nice added feature is airing up and down.Helpful (24)
June 22, 2016
I put this on my jk and went up steep slick hills and over rocks and never lost traction it's by far the best one out thereHelpful (18)
September 21, 2015
ARB AIR LOCKERS
WORKS EXACTLEY AS DESCRIBED,AND USED THEM RECENTLY AT A 2 DAY 4WD EVENT.UNBELIEVABLE THE DIFFERENCE FRONT AND REAR LOCKERS MAKE.WORTH EVERY PENNY.EVEN THE WIFE WAS IMPRESSED.Helpful (24)
will these locker work with 4.56 gears
Hello, This traction pack is for use with 3.73 & Higher Gear Ratios. Includes 27 Spline Dana 30 Air Locker for Front Includes 30 Spline Dana 44 Air Locker for Rear
Dose this kit come with the switches to activate the lockers
This comes with all necessary switches.
For a 2013 JKU with automatic transmission, 3" lift and 35x12.5 17 tires what gear ratio would you recommend for front and rear. This jeep is 2 thirds daily driver and 1 third off road.
For that setup, I would recommend 4.56 gears.
Where is the best location for the air compressor on a 2016 wrangler 2door?
That would depend on how you plan on using the ARB High Performance Compressor -CKMA12 included with the ARB Dana 30F/44R Air Locker Traction Pack. The engine is a common location for the air compressor, a mount can be found here: https://www.extremeterrain.com/more-arb-dual-mount-arb07.htmlits made by M.O.R.E
I have a jeep wrangler tj 2001 with Dana 44 would this work for it? I haven't seen this kit for a tj with Dana 44.
Unfortunately, the ARB Traction Pack RD117/117 would not work for your 2001 Wrangler, it is specifically designed for 2007-2017 Jeep Rubicons.
Hello, yes the ARB High Output Air Compressor in the ARB Traction Pack will allow to air up the tires as well as the air lockers.
The ARB Traction Pack RD100/117 (07-17 Wrangler JK Exc. Rubicon) is designed for use with 3.73 & Lower Gear Ratios.
This kit will not fit Rubicons. It requires front and rear Dana 44s with 30 spline front and rear axles. It utilizes ARB's 30 spline Dana 44 differential, RD117. This also does not fit stock Sport models, a Sport would need to swap in a Dana 44 up front and to have a Dana 44 from the rear, or swap it in. This kit is for the serious off-roader with a heavily modified Wrangler. Please review the Dana you have at the link below: https://www.extremeterrain.com/wrangler-jeep-axle-identification.html
The ARB Dana 30F/44R Air Locker Traction Pack will include selectable air lockers, which will not cause your automatic to go into limp mode.
Gear selection with the ARB Traction Pack RD100/117 will come down to a number of factors, including your overall tire size, what type of transmission you have, and the type of driving you do with your Wrangler. Please contact our Customer Service Department so that we may best assist you with selecting the right gears for your Wrangler.
The ARB Traction Pack RD100/117 will work with all Non Rubicon JK's.
No, this kit is intended for the 27 Spline Dana 30 and the 30 spline Dana 44 only.
Yes, the ARB Traction Pack RD100/117 is for 3.73 gear ratios and higher.
(approx) 6 Hours
Mechanical expertise or professional installation required.
What's in the Box
