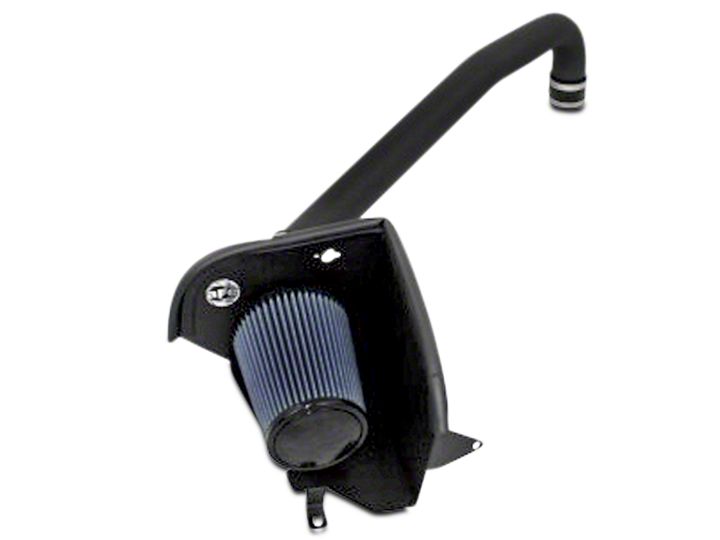

How to Install AFE Magnum FORCE Stage-2 Pro DRY S Cold Air Intake System on your Jeep Wrangler

Installation Time

1 hours

Tools Required
  • 5/16” nut driver
  • 1/4” nut driver
  • Flat head screwdriver
  • 8MM socket or wrench
  • 10mm socket or wrench
  • Ratchet w/extension
Extreme Terrain
Shop Parts in this Guide

Parts List:

1 Air filter
1 Housing (05-00086)
1 Coupler, elbow (05-00395)
1 Coupler, straight (05-00570)
1 Tube, intake wrinkle black (05-01082)
1 3/4” trim seal @ 25.5 “L (05-00007)
4 Washer, flat fender (03-50074)

2 Nut M6 (03-50059)
2 Washer, wavy M6 (03-50058)
2 Screw, hex M6 (03-50057)
2 Clamp, #044 (03-50019)
2 Clamp, #048 (03-50007)
1 Grommet, rubber (03-50076)
2 Mini clamp, #008 (03-50077)
1 5/8” hose @ 7.5L” (05-00069)

Complete Stock Intake.
Disconnect battery before install.


Loosen clamp on stock intake using 5/16” nut driver.


Loosen clamp on throttle body using 5/16” nut driver.


Loosen bolts holding in stock intake tube on valve cover using 8mm socket or wrench and remove


Pull crank case line away from stock intake and remove from vehicle.


Loosen bolt on core support bracket using 13mm socket or wrench.


Remove upper half of air box. Loosen the 3 bolts on bottom of air box using 8mm socket or wrench and remove.


Attach grommet provided and install on core support bracket.


Loosen bolt on core support using 10mm wrench. Save bolt for later install


Attach trim seal to housing and install. Make sure core support bracket slides through hole on housing.


A)Top view: Secure housing using hex screws, fender washers , wavy washers and nuts. B)Bottom view: Tighten using 10mm socket or wrench.


Allign grommet from step 8 and position in hole to prevent core support bracket from vibration.


Secure core support bracket using 13mm.


Secure bracket on housing using screw from step 9 using 10mm wrench.


Remove crank case line from engine.


Attach elbow coupling with #048 clamps to housing and position. Do not tighten.


Attach straight coupling with #044 clamps provided on end of intake tube and position to housing and throttle body.


Reinstall crankcase line using the supplied 5/8” hose and mini clamps and attach to engine and intake tube. Secure mini clamps using 1/4” nut driver.


Install air filter and tighten all clamps using 5/16” nut driver. Reconnect battery terminals.


Your installation is now complete. Make sure to check all hoses and tighten any clamps or hardware if necessary. Thank you for choosing aFepower. Place enclosed CARB EO sticker on a clean/smooth surface on or near the intake system. EO identification label is required in passing a smog check inspection.
