ADS Racing Shocks Direct Fit Race Front Coil-Overs with Remote Reservoir for 1.50 to 3-Inch Lift; 500 lb./in. Spring Rate (24-26 Tacoma)Find parts that fit my vehicle
Item TT60936
Our Price
$2,254.95 set
Military, Medical & First Responders
$112.75 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Active Or Passive Suspension Passive
- Adjustable Compression Yes
- Adjustable Rebound Yes
- Adjustable Reservoir No
- Adjustable Ride Height Yes
- Body Color Silver
- Body Diameter 2.5 In
- Body Finish Electric Zinc Plated With Ceramic Coat
- Body Material Steel
- Boot Included No
- Category Suspension
- Collapsed Length 19.37 In
- Drivetrain 2WD/4WD
- Emission Code 6
- Extended Length 25.48 In
- Gas Charged Yes
- Grade Type Performance
- Hose Length N/A In
- Hose Material Rubber
- Hose Outer Diameter 0.875 In
- Includes Bump Stop Yes
- Internal Construction Type Mono Tube
- Internal Rebound Bumper No
- Internal Rebound Spring No
- Lift Range 1.5-3
- Lower Mount Type Eyelet
- Mounting Hardware Included Yes
- Part Type Suspension Shock Absorber And Coil Spring Assembly
- Position Front
- Product Type Coilover Shock
- Quantity Sold As A Pair
- Requires UCA Yes
- Reservoir Color Silver
- Reservoir Diameter 2.5 In
- Reservoir Finish Anodized
- Reservoir Length 8 In
- Reservoir Material 6061 Aluminum
- Reservoir Type Remote
- Shaft Diameter 0.875 In
- Shaft Material Hard-Chrome Plated Steel
- Shock Travel 6.1 In
- Spring Color Silver
- Spring Finish Powdercoated
- Spring Included Yes
- Spring Material Steel
- Spring Rate (Lbs/In) 500
- Stroke 6.1 In
- Sub Category Shocks And Struts
- Travel Length 6.1 In
- Upper Mount Type Mounting Plate
- Valving Type Progressive
- Weight 61 Lb
- Fits 2024-2025 Tacoma Front 4WD With 1.5 To 3 Inch Lift And Requires Aftermarket Upper Control Arms
Description
Premium Coilover Suspension. The ADS Racing Shocks Direct Fit Race Front Coil-Overs with Remote Reservoir deliver enhanced ride quality and superior handling for your 2024-2025 Toyota Tacoma 4WD models. Featuring a 500 lb./in. spring rate, these coilovers are designed for both off-road and on-road use, improving stability and control while accommodating moderate front suspension lifts for an optimal driving experience.
Construction and Appearance. Crafted from heavy-duty steel with an electric zinc plated finish and ceramic coating, these coilovers resist corrosion and wear. The 2.5-inch large bore shock bodies feature hard-chrome plated steel shafts and anodized 6061 aluminum reservoirs for durability and a sleek appearance. Powdercoated springs provide additional protection and style.
Installation. Installation is straightforward with a direct fit design requiring no cutting, drilling, or welding. Aftermarket upper control arms are required to accommodate the lift height and maintain proper suspension geometry.
Application and Fitment. Engineered specifically for 2024-2025 Toyota Tacoma front suspension on 4WD models, this coilover provides a lift range of 1.5 to 3 inches and requires compatible aftermarket upper control arms to ensure proper installation and function.
ADS Racing Shocks 250-TT24F-050
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box

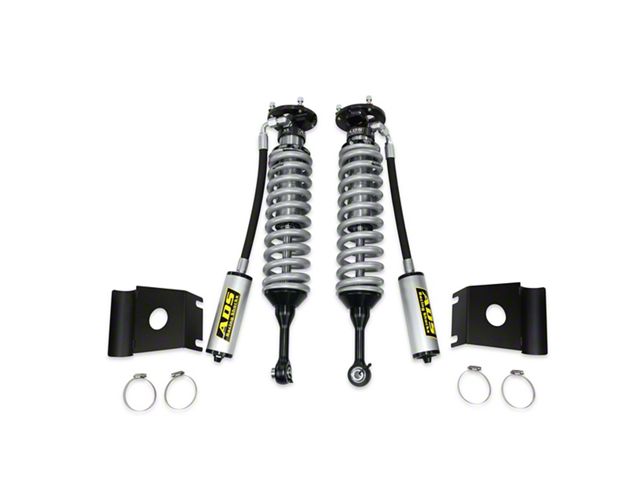

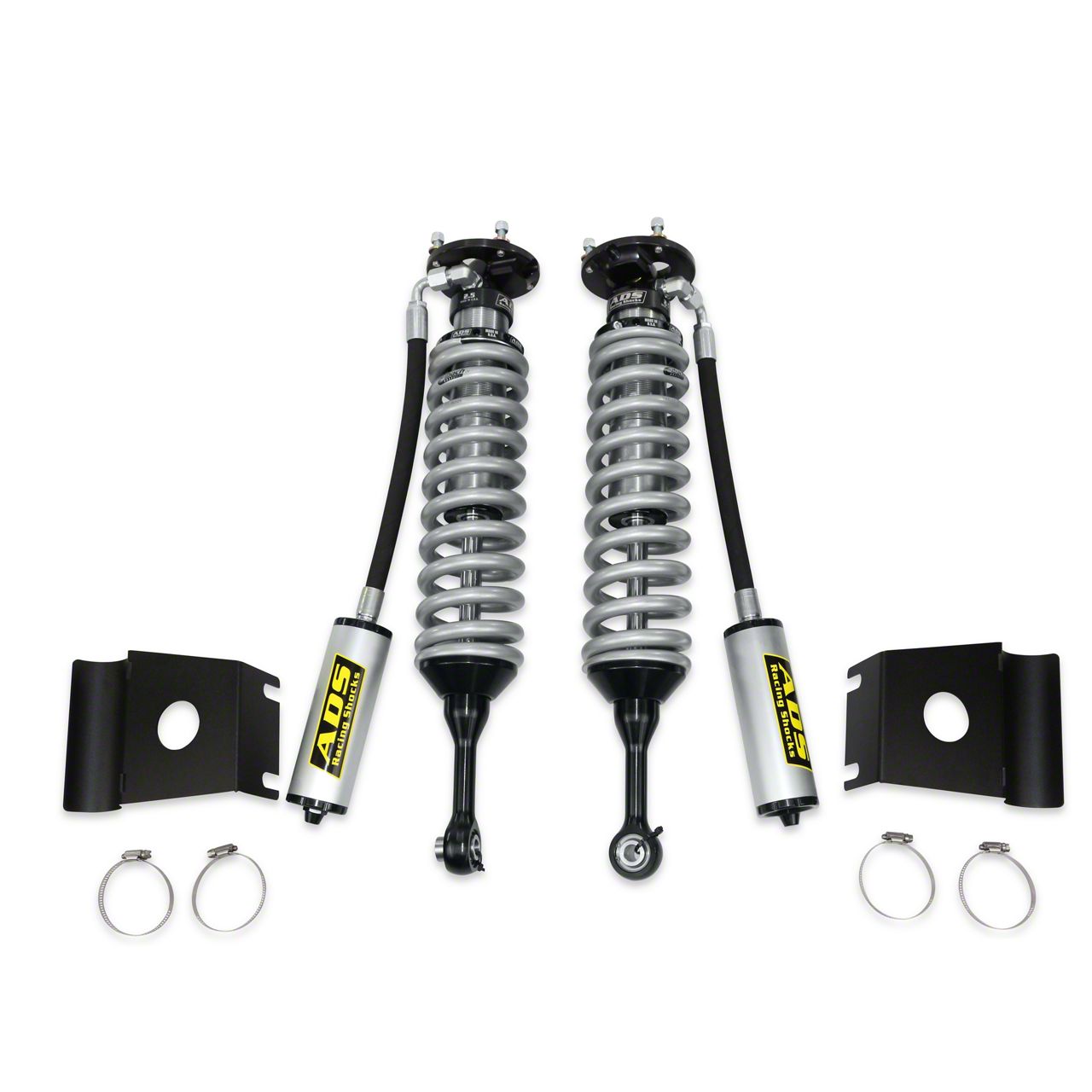

- (1) Set of Front Coil-Overs with Remote Reservoir
