2021-2026
Installation Time
(approx) 4 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Coilover Kits for your Bronco

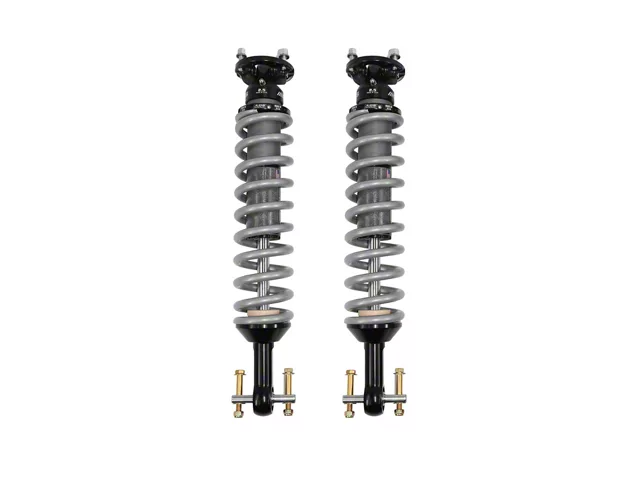

ADS Racing Shocks Mesa 2.5 Series Front Coil-Overs for 0 to 2.50-Inch Lift (21-26 Bronco w/ Sasquatch Package)Find parts that fit my vehicle
Item FB67115
Our Price
$1,749.95 set
Military, Medical & First Responders
$87.50 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Internal Floating Piston (IFP) Ensures Consistent Damping Performance, Improved Responsiveness, And Increased Longevity And Reliability
- Large Bore 2.50-Inch Shock Body Provides Increased Fluid Capacity Resisting Shock Fade Resulting In Increased Performance For Your Off-Road Adventures
- UV-Stable Ceramic Powder Coated Steel Shock Body For Durability And Strength
- Black Anodized Billet Aluminum Top And Bottom Caps
- 0.875-Inch Diameter Hard-Chrome Plated Steel Shock Shafts For Superior Corrosion Resistance
- Spacers Machined From 304 Stainless Steel For Corrosion Resistance
- High-Carbon Chrome Plated Steel Spherical Bearings
- Premium Full Synthetic Shock Oil
- Fully Rebuildable
- Adjustable Ride Height
- Monotube Internal Construction
- Mounting Hardware Included
- Progressive Valving Type
- Spring Included With 450 PPI Spring Rate
- Stroke And Travel Length Of 6.68 Inches
- Shaft Diameter Of 0.875 Inch
- Lower Mount Type T-Bar, Upper Mount Type Mounting Plate
- Body Diameter 2.5 Inches With Steel Body Material
- Collapsed Length Of 18 Inches And Extended Length Of 24.68 Inches
- Coil Spring Insulator(s) Not Included
- Dust Boot And Dust Shield Not Included
- Internal Rebound Bumper And Internal Rebound Spring Not Included
- Self-Leveling Not Supported
- Passive Suspension Type
- Does Not Feature Adjustable Compression, Rebound, Or Reservoir
- Fits 21-26 Bronco With Sasquatch Package
Description
Premium Suspension Upgrade. The ADS Racing Shocks Mesa 2.5 Series Front Coil-Overs deliver enhanced durability and off-road performance by replacing your factory suspension components with a robust, large-bore shock design. Designed to enhance damping consistency and responsiveness, these coilovers provide improved ride quality and reliable handling under demanding conditions.
Construction and Appearance. Crafted with a UV-stable ceramic powder-coated steel shock body and black anodized billet aluminum caps, these coilovers combine strength with corrosion resistance. The hard-chrome plated steel shafts and 304 stainless steel spacers further reinforce durability, finished with silver powder-coated steel springs boasting a 450 PPI rate to maintain ride stability and control.
Installation. Installation is straightforward, utilizing direct-fit mounting hardware with no drilling required. This makes the upgrade accessible for those with basic mechanical skills seeking improved suspension performance.
Application. Designed specifically to fit the 21-26 Ford Bronco equipped with the Sasquatch Package, these coilovers cater to off-road enthusiasts looking to optimize their vehicle’s handling and suspension resilience.
ADS Racing Shocks 100ADS-10122
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) Front Floor Mats – Molded to Fit Factory Floorpan (Left & Right)
- (1) Rear One-Piece Floor Mat – Spans Full Rear Footwell for 4-Door Model
- (1) Light Gray “Squatch” Logo Insert – Integrated Within Mat Design
- (1) Tire-Tread / Scorched-Earth Scene Embossed Pattern – Across All Mats
- Instructional Manual
